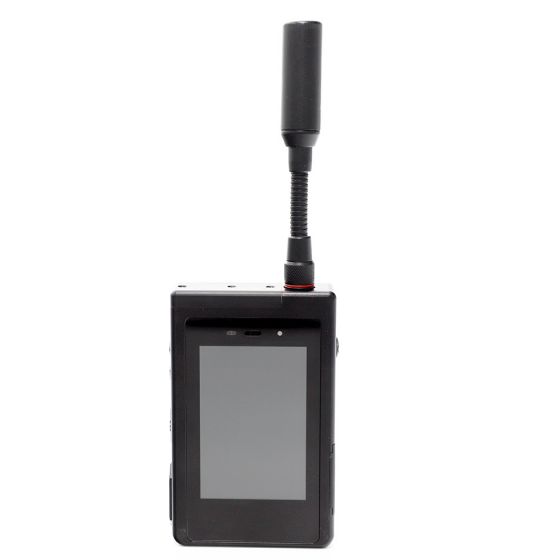

SHOUT sp-A SHOUT sp w/ ATAK (SHOUTsp-A)
Description
The SHOUT sp is a revolutionary Iridium Connected device that combines Iridium tracking and messaging of the SHOUT product line with Iridium phone capability using an Android interface. The SHOUT sp is built specifically for the Iridium NEXT network and features Iridium Short Burst Data (SBD), SMS, and voice calls. For customers on Iridium’s commercial gateway, global Push-to-Talk (PTT) is also available. The SHOUT sp is comprised of a touchscreen display, status LED lights, a guarded emergency button, an Iridium antenna, and a USB-C port. The touchscreen allows easy access to device features and the USB-C enables charging, firmware updates, and device configuration. The LED displays the device status when enabled or may be turned off for more tactical environments. The SHOUT sp is the perfect tool for your mission, especially in remote environments with no cellular coverage when communication is a must and knowing your personnel’s location is critical.
Specifications
| Dimensions | 122 mm x 74 mm x 31 mm (4.8″ x 23.0″ x 1.0″) |
| Weight | 0.45 kg (16 oz) |
| Battery | 2.15 A-Hr Rechargeable Lithium-Ion |
| I/O Interface: | USBC, SIM Reader, 3.5 mm Headset Jack |
| Bluetooth (Class II): | 2.4 GHz Band / +10 dBm (5 – 10 m range) |
| Operating Temp: | –20°C to +60°C (–4°F to +149°F) |
| Operating Frequency: | 1616 to 1626.5 MHz |
| Iridium Link Margin (Up / Down): | 7dB / 13 dB Average |
| GPS Receiver Type: | 1575.42 MHz (L1), 50 Channel, C/A Code |
| PJESA # | SHOUTsp-A |
|---|
