BSN NAL Hawkeye 5500 Standard LTE Kit B (HE5500-LTE-KIT-B)

BSN NAL Hawkeye 5500 Standard LTE Kit B (HE5500-LTE-KIT-B)

“Kit B” refers to the standard LTE hardware bundle that includes the HawkEye 5500 LTE vehicle tracker plus a GPS/GNSS/Iridium magnet-mount antenna and a power pigtail. This specific pack-out is typically chosen for faster installation or temporary/transferable deployments, where a magnetic antenna can be mounted without drilling or permanent roof fixtures.

Design and Features

Dual-mode communications architecture

HawkEye 5500 is described as a dual-mode vehicle management solution that leverages local cellular networks for higher bandwidth and responsiveness, and uses Iridium satellite as a fallback (or alternate) channel to maintain global connectivity.
Operationally, the system supports “least-cost routing” behavior—favoring cellular when available and transitioning to satellite when cellular conditions degrade or disappear.

Fleet tracking, alerts, and trip intelligence

BSN positions HawkEye 5500 for tracking, geofencing, and operational analytics through the SkyRouter platform, which is used for device configuration, reporting rules, and alerting.
The user guide also describes configurable reporting behavior (e.g., different reporting intervals based on movement vs stationary states), and the ability to manage parameters remotely via SkyRouter.

Vehicle integration and sensor/event monitoring

Public descriptions of the HawkEye 5500 emphasize integration with vehicle systems and safety/operations features such as two-way messaging, a remote emergency switch, collision detection, audible alerts, and driver identification using RFID/Bluetooth workflows.
The installation guide outlines optional wiring assemblies (audio, emergency/I/O, OBD vehicle cable assemblies, RFID reader options) indicating that the device can be deployed as a simple tracker or as a more deeply integrated fleet management node.

Bluetooth “HawkEye Link” app ecosystem

HawkEye 5500 supports Bluetooth workflows through the HawkEye Link mobile app. The installation guide lists app-enabled capabilities such as status, current location, diagnostics, two-way messaging, digital forms, configuration/setup, and firmware updates.
The user manual further notes Bluetooth support for messaging apps, diagnostics, beacons, and custom applications (Bluetooth 5.0 Low Energy is referenced in the manual).

Kit B hardware concept: magnet-mount tri-function antenna + power pigtail

HE5500-LTE-KIT-B is described by dealers as including:

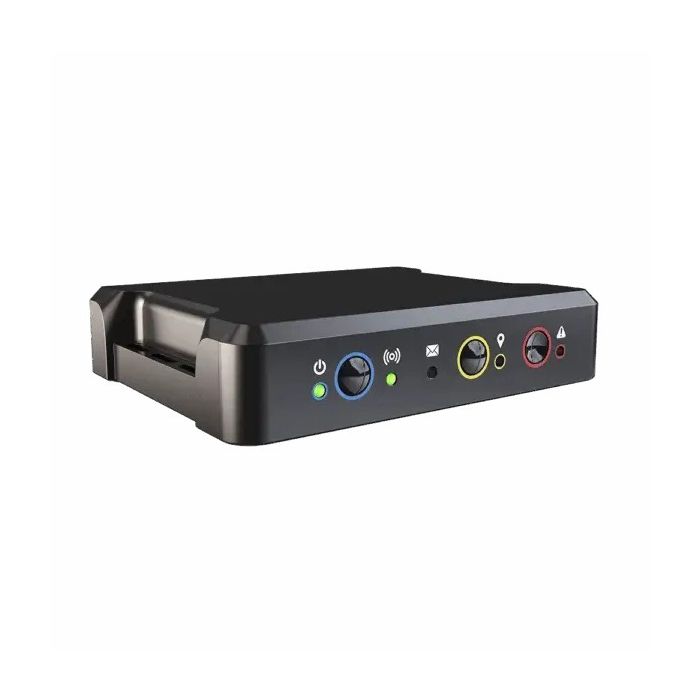

• HawkEye 5500 LTE Vehicle Tracker

• GPS/GNSS/Iridium Magnet Mount Antenna

• Power Pigtail

This differentiates it from “Kit A,” which is commonly listed with a screw/bolt-mount antenna suited for permanent installations.

Technology and Specifications

Communications channels and network behavior

The HawkEye 5500 includes both a cellular modem and an Iridium satellite modem. The user manual describes cellular as the default primary channel for inbound/outbound messages, with Iridium used when appropriate (for coverage continuity).
Industry coverage also notes the product supports 2G/3G/LTE alongside Iridium, depending on region and modem configuration.

Data security and encryption

The HawkEye 5500 user manual states support for AES-256-GCM encryption of data to/from the unit, with setup requiring coordination and a compatible service plan due to increased transmission size.
Press coverage similarly references AES-256 encrypted communications for offloading diagnostics and vehicle data.

Antenna and RF installation constraints

The user manual specifies a strict antenna loss budget: the total signal loss from antenna to unit (cable + connectors) should be < 2 dB at 1626 MHz, and notes that BSN installation kits include low-loss coax sized to meet this requirement.
In Kit B, the “GPS/GNSS/Iridium magnet mount antenna” is intended to meet those practical requirements for standard installations.

Power and installation components

The installation guide describes common kit and accessory elements such as a power cable assembly with a 2’ pigtail, optional emergency/I/O harnesses, OBD vehicle cable options, and multi-band antenna options.
This reflects a modular install strategy: Kit B covers the essentials (tracker + antenna + power pigtail), while additional harnesses and sensors are optional based on fleet requirements.

Published “kit family” technical specs (context from related listings)

Some dealer listings for the HawkEye 5500 Standard LTE kits publish representative device-level specifications such as IP54 rating, 10–32 VDC external power, and approximate dimensions/weight for the tracker hardware.
Because these figures can vary by revision and exact SKU (standard vs external antenna variants), fleets typically confirm final specifications against the latest BSN installation/user documentation during procurement.

Applications and Use Cases

Fleet tracking for light and heavy-duty vehicles

HawkEye 5500 is positioned for fleets spanning light and heavy-duty vehicles, supporting tracking, trip analytics, and operational reporting.
This makes the HE5500-LTE-KIT-B bundle relevant for service fleets, logistics, mining support vehicles, construction fleets, and government/NGO operations where vehicles move across mixed coverage zones.

Remote operations and “always-on” coverage

Dual-mode LTE + satellite architecture supports operations that transition between cities (cellular-rich) and remote corridors (satellite-required). The installation guide explicitly frames the device for real-time tracking and global connectivity using LTE networks and Iridium.

Safety, emergency escalation, and compliance workflows

The platform is frequently described as supporting remote emergency switch workflows, collision detection, and driver feedback on safety violations—capabilities used for safety programs, compliance reporting, and incident response.

Rapid deployment or transferable installs with magnet-mount antenna

Kit B’s magnet-mount antenna is often preferred when:

• vehicles are leased/temporary,

• installation must be quick with minimal vehicle modification,

• equipment is moved between vehicles.
  For permanent fleet installs, Kit A’s bolt/screw mount antenna is commonly chosen instead.

Advantages / Benefits

Global coverage with cost-optimized routing

By using LTE where available and Iridium outside coverage, the solution can deliver continuous visibility while controlling costs and improving responsiveness in cellular zones.

Rich operational telemetry and flexible integrations

The installation guide’s modular harness approach and the user manual’s diagnostics/app support indicate a platform designed for both straightforward tracking and deeper fleet integration.

Security options for sensitive operations

AES-256-GCM encryption support (when provisioned) is a differentiator for organizations with stricter security requirements for vehicle telemetry and messaging.

Faster installs with Kit B’s magnet antenna

The magnet-mount antenna reduces installation time and can be advantageous where drilling is undesirable or not permitted.

FAQ Section

What is the BSN NAL HawkEye 5500 Standard LTE Kit B (HE5500-LTE-KIT-B)?

It is a packaged kit containing the HawkEye 5500 LTE vehicle tracker, a GPS/GNSS/Iridium magnet-mount antenna, and a power pigtail, designed for dual-mode (LTE + Iridium) fleet tracking.

How does HawkEye 5500 Standard LTE Kit B work?

The tracker uses cellular/LTE as the primary communications path when available and uses Iridium satellite for global coverage when cellular is unavailable. Device settings and reporting rules are managed via SkyRouter, and local setup/diagnostics can be supported via the HawkEye Link Bluetooth app.

Why is HawkEye 5500 Standard LTE Kit B important?

It supports continuous fleet visibility across mixed coverage environments and enables safety/operations features (alerts, messaging, vehicle integration options) without requiring separate cellular-only and satellite-only systems.

What are the benefits of HawkEye 5500 Standard LTE Kit B?

Common benefits include dual-mode LTE + Iridium coverage, SkyRouter-based fleet tracking and geofencing, optional AES-256 encryption (plan-dependent), and the convenience of a magnet-mount antenna for quicker installation.

Summary

The BSN NAL HawkEye 5500 Standard LTE Kit B (HE5500-LTE-KIT-B) bundles the HawkEye 5500 dual-mode vehicle tracker with a GPS/GNSS/Iridium magnet-mount antenna and power pigtail, targeting fleet operators who need rapid deployment and continuous coverage across cellular and remote environments. Built around LTE/cellular + Iridium least-cost routing, SkyRouter fleet management, and optional AES-256-GCM encryption (plan-dependent), the kit is positioned as a practical, professional solution for real-time tracking, messaging, and vehicle operations analytics—especially where installations must be quick, transferable, or non-permanent.
