BSN NAL Hawkeye 5500 External LTE Kit A (HE5500X-LTE-KIT-A)

BSN NAL Hawkeye 5500 External LTE Kit A (HE5500X-LTE-KIT-A)

“External LTE” and the “5500X” model designation are used in dealer catalogs to distinguish this kit line from the HawkEye 5500 Standard LTE kits, while “Kit A” identifies the pack-out intended for permanent installations—most notably because it includes a screw/bolt-mount combined GPS/GNSS/Iridium antenna (with a 3-meter cable) rather than a magnet-mount antenna.

In typical deployments, the system is paired with SkyRouter, Blue Sky Network’s fleet portal used for configuration, tracking, alerting, and operational analytics.

Design and Features

Dual-mode communications (LTE + Iridium)

The HawkEye 5500 platform is documented as containing both a cellular modem and an Iridium satellite modem, with cellular typically used as the primary channel for inbound/outbound messaging when available. When cellular is unavailable (or inadequate), Iridium provides global continuity.
This dual-network approach is often described as “least-cost routing,” since cellular is generally used where possible to reduce latency and operating cost, while satellite coverage preserves tracking and messaging in remote regions.

Fleet management via SkyRouter

Blue Sky Network positions HawkEye 5500 as a fleet tracking, monitoring, and messaging platform “paired with SkyRouter.” In practice, SkyRouter is the control plane where fleet managers define reporting rules (moving vs stationary intervals, geofence behaviors), manage alerts, and review tracks and operations data.

Vehicle operations and safety workflow ecosystem

Public coverage of the HawkEye 5500 launch describes it as a vehicle management solution with options for deeper integration into vehicle systems and safety workflows—citing capabilities such as two-way messaging, a remote emergency switch, collision detection, audible alerts, and driver identification (RFID/Bluetooth) as part of the wider platform positioning.
The user guide also references onboard diagnostics and operational telemetry concepts, reinforcing that the platform is designed to be more than a “dot on a map” tracker when integrated with optional harnesses and sensors.

Kit A hardware bundle: bolt/screw-mount antenna + power pigtail

Dealer listings describe HE5500X-LTE-KIT-A as including:

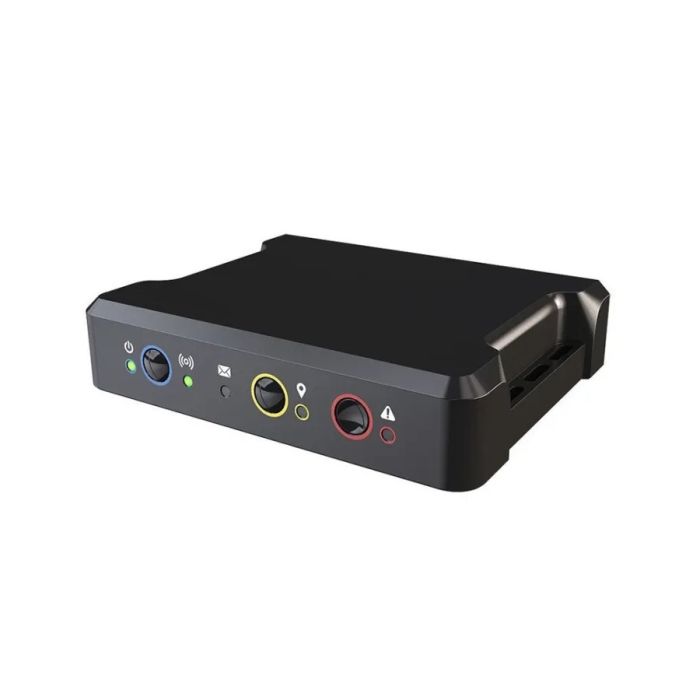

• HawkEye 5500X LTE Vehicle Tracker

• GPS/GNSS/Iridium screw/bolt-mount antenna with 3-meter cable

• Power pigtail

The bolt/screw-mount antenna is the key “Kit A” differentiator: it is intended for stable, long-term installation on the vehicle roof (or other suitable mounting surface), improving repeatability versus temporary mounting approaches.

Technology and Specifications

Communication channels and reporting behavior

The HawkEye 5500 user guide states that the unit contains both a cellular modem and an Iridium satellite modem, and that the cellular channel is used by default for mobile-originated and mobile-terminated messages.
The guide also indicates that default reporting profiles (for example, more frequent reports when moving and less frequent when stationary) can be configured and changed remotely in SkyRouter.

Antenna performance considerations

For satellite devices, antenna placement and cable losses are critical. The user guide specifies a signal-loss budget (including cable and connectors) from antenna to unit that should be under 2 dB at 1626 MHz, and notes that installation kits include low-loss cabling sized to meet this requirement.
Kit A’s inclusion of a matched combined GPS/GNSS/Iridium bolt/screw-mount antenna with a 3-meter cable is part of that engineered approach.

Security and encryption options

The HawkEye 5500 user guide states that the unit supports AES-256-GCM encryption for data to/from the device, noting that setup requires coordination and a special service plan due to increased transmission size.
Public industry reporting similarly references AES-256 encrypted communications in the context of offloading diagnostics and vehicle data.

Applications and Use Cases

Remote fleet operations with mixed coverage

HE5500X-LTE-KIT-A is best suited to fleets that transition between:

• urban/regional corridors with LTE coverage, and

• remote operating areas where only satellite connectivity is dependable.

This includes mining support vehicles, exploration fleets, forestry operations, utilities and infrastructure maintenance, and long-haul or cross-border logistics where routes regularly exit cellular footprints.

Permanent installs for harsh environments

Because Kit A uses a bolt/screw-mount antenna, it is commonly chosen when fleets want a secure installation that resists:

• vibration (rough roads, off-road vehicles),

• accidental antenna displacement,

• weather exposure over long service intervals.

Safety and incident response workflows

In programs where safety escalation is a requirement, HawkEye 5500’s wider platform positioning includes emergency switch support and incident-related telemetry (such as collision detection) that can be routed as alerts through fleet operations processes.

Expandable telematics and diagnostics

Where fleets choose deeper vehicle integration, the platform’s telematics positioning supports maintenance and compliance use cases (diagnostics offload, vehicle data monitoring) managed through the portal and messaging infrastructure.

Advantages / Benefits

Always-on visibility with LTE cost efficiency

A dual-mode design helps maintain tracking continuity while optimizing cost and responsiveness by using LTE where available and switching to Iridium where necessary.

Installation stability (Kit A)

The bolt/screw-mount antenna is purposefully aligned with permanent fleet installs, supporting repeatable antenna placement and reducing the operational overhead associated with re-mounting or troubleshooting antenna alignment issues.

Centralized operational control via SkyRouter

SkyRouter integration supports scalable fleet management with consistent reporting profiles, geofences, and alerts across many vehicles in one interface.

Security options for higher-assurance deployments

For organizations with stricter security requirements, the platform’s AES-256-GCM encryption support (plan/provisioning dependent) provides an additional layer for protecting telemetry and messaging data.

Comparisons

External LTE Kit A vs External LTE Kit B

Both External LTE kits bundle the HawkEye 5500X tracker and power pigtail, but differ mainly in antenna mounting style:

• Kit A: bolt/screw-mount combined GPS/GNSS/Iridium antenna with 3-meter cable (more permanent).

• Kit B: magnet-mount combined antenna (faster install, more transferable).

External LTE (HE5500X…) vs Standard LTE (HE5500…) kits

Dealer catalogs list both “Standard LTE” and “External LTE” kit families. In practice, this distinction helps procurement teams match the intended tracker variant (5500 vs 5500X) and the compatible accessory bundle.

FAQ Section

What is the BSN NAL HawkEye 5500 External LTE Kit A (HE5500X-LTE-KIT-A)?

It is a bundle that includes the HawkEye 5500X LTE vehicle tracker, a GPS/GNSS/Iridium bolt/screw-mount antenna with 3-meter cable, and a power pigtail, intended for permanent vehicle installations.

How does HE5500X-LTE-KIT-A work?

The tracker uses LTE/cellular as the primary communications channel when available and switches to Iridium satellite when cellular coverage is unavailable, sending GNSS-based position reports and events to fleet managers via SkyRouter.

Why is HE5500X-LTE-KIT-A important?

It provides continuous fleet visibility across remote routes while using a bolt/screw-mount antenna designed for stable, long-term installs—reducing operational issues associated with temporary mounting methods.

What are the benefits of HE5500X-LTE-KIT-A?

Typical benefits include dual-mode LTE + Iridium coverage, SkyRouter portal management, optional AES-256-GCM encryption (plan dependent), and a permanent bolt/screw-mount combined antenna for consistent performance.

Summary

The BSN NAL HawkEye 5500 External LTE Kit A (HE5500X-LTE-KIT-A) is a dual-mode LTE + Iridium fleet tracking bundle built around the HawkEye 5500X tracker, packaged with a bolt/screw-mount GPS/GNSS/Iridium antenna (3 m cable) and power pigtail for long-term vehicle installations. Managed through SkyRouter, it supports continuous visibility, alerts, and fleet workflows across mixed coverage environments—making it a common fit for remote and industrial operations that cannot rely on cellular networks alone.
