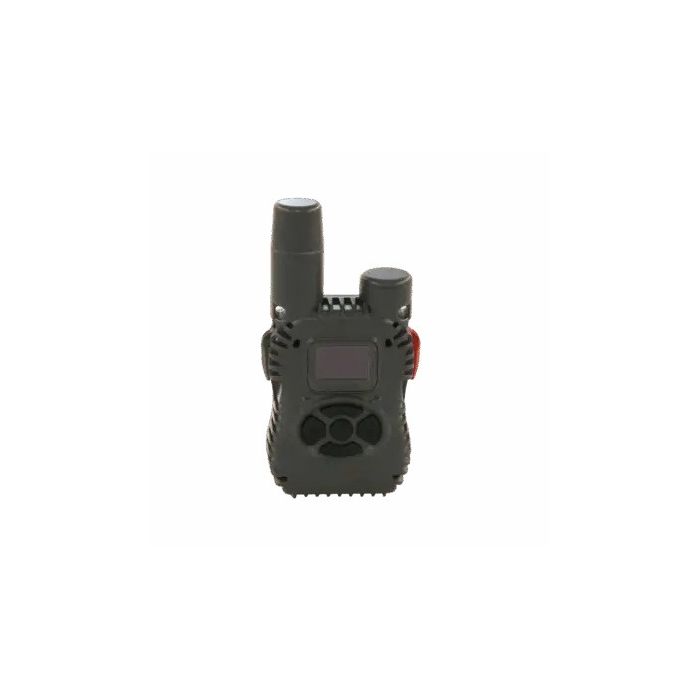

BSN NAL Low Profile Ruggedized Hand-Held Tracker (SHOUT nano-100)

BSN NAL Low Profile Ruggedized Hand-Held Tracker (SHOUT nano-100)

Unlike voice-capable satellite phones, the SHOUT nano-100 is optimized for ultra-low-power, frequent reporting, including the ability to send automated tracking reports as often as every 60 seconds (configuration dependent) and to operate as either a standalone tracker or a smartphone-paired messenger via Bluetooth.

Design and Features

Low-profile, body-worn form factor

SHOUT nano-100 is marketed as a low-profile, lightweight tracker intended to be worn on a person or carried discreetly. Its published dimensions are 76 × 46 × 18 mm and its weight is 85 g, which places it in the “badge-sized” class of rugged personnel trackers rather than handheld satellite phones.

Iridium Enhanced SBD messaging for global coverage

The device leverages Iridium Enhanced SBD to transmit location reports and messages with global reach. NAL describes Enhanced SBD as increasing transmission capability and enabling larger payload sizes (compared to baseline SBD), supporting a wider range of operational messaging patterns.

Secure, controlled communications options

SHOUT nano-100 is positioned as a security-oriented tracker with multiple controls and modes commonly required in professional deployments:

• 256-bit AES encryption support for message payloads and the ability to restrict messaging to customer-defined closed user groups.

• The device can be programmed for either a DoD gateway or a commercial Iridium gateway, depending on the customer environment and provisioning model.

These features are particularly relevant when organizations need to enforce who can send to/receive from field devices and how messages are routed.

Emergency alerting (dual-button / dedicated switch)

SHOUT nano-100 includes an emergency alert switch and is described as supporting a dual-button 911 alert feature that can trigger immediate emergency notifications to a command center or a designated point of contact, depending on configuration.

Motion sensing and automated behavior

NAL lists an integrated motion sensor and automated location reporting. In practice, this enables “wake, report, sleep” patterns that balance situational awareness with battery life—especially for body-worn trackers that must run continuously in the field.

Smartphone pairing and configuration tools

SHOUT nano-100 can be used standalone, but it is also designed to pair with Android or iOS smartphones via Bluetooth for messaging workflows (free-text, canned messages, or combinations). Configuration can be performed via a smartphone app or via USB-C using a desktop configuration tool (SatTerm is referenced by channel listings).

Technology and Specifications

Physical and environmental specifications

NAL publishes the following technical specifications for SHOUT nano-100:

• Dimensions: 76 × 46 × 18 mm (3.3″ × 1.8″ × 0.7″)

• Weight: 85 g (3.0 oz)

• Ingress protection: IP67

• Operating temperature: –20°C to +60°C

• Operating humidity: < 75% RH

• Durability/certification references: MIL-STD-810G, MIL-STD-461G, plus Rapid Decompression and Explosive Atmosphere references in the published spec list.

Power and charging

The device uses an internal 3.7V Li-ion 2000 mAh battery and supports charging via USB-C (USB 2.0), 5 VDC up to 1 A.

Radio and GNSS

Published radio/GNSS information includes:

• Iridium operating frequency: 1616.0 to 1626.5 MHz

• GPS frequency: 1575.42 MHz (L1 carrier)

• GNSS receiver: listed as a 72-channel GPS receiver in the published feature set.

Interfaces and configuration

NAL lists AT Commands through USB as the software interface, complementing the app-based configuration and messaging workflows described in channel listings.

Applications and Use Cases

Personnel safety and lone-worker monitoring

SHOUT nano-100 is commonly deployed for crew safety, especially for workers operating beyond cellular coverage. Automated location reports and emergency alerts allow dispatch or a command center to maintain visibility and respond to distress activations.

Government and military field operations

NAL explicitly positions the device for government and military users, emphasizing TRANSEC-related benefits and closed user group messaging, plus the ability to operate on DoD or commercial gateways depending on program requirements.

Industrial inspection and remote infrastructure work

Typical commercial uses include pipeline patrol and monitoring, geologic and environmental fieldwork, and industrial site operations where personnel need predictable check-ins and an emergency beacon-like capability without relying on terrestrial networks.

Rapid-deploy tracking for expeditions and research

The combination of small size, high reporting frequency options, and smartphone pairing makes SHOUT nano-100 suitable for short-term deployments where teams need to stand up tracking quickly and manage messages from a mobile interface.

Advantages / Benefits

Low profile with frequent reporting capability

A key differentiator is the ability to support tracking reports every 60 seconds while staying small enough to be worn as a body-worn tracker. This is useful for dynamic operations where long reporting intervals reduce situational awareness.

Security controls aligned with managed deployments

Support for AES-256, closed user groups, and DoD/commercial gateway programming aligns with operational models where message routes and participants must be controlled.

Ruggedization for harsh and regulated environments

IP67 sealing and the published MIL-STD references support use in harsh weather, dusty environments, and electrically noisy settings, where consumer devices often fail prematurely.

Flexible “standalone or paired” operation

Teams can issue the tracker as a standalone unit for simple tracking/alerting, or pair it to a smartphone to improve the user experience for messaging and configuration without changing the underlying satellite transport.

FAQ Section

What is the SHOUT nano-100?

The SHOUT nano-100 is a low-profile, rugged handheld/body-worn Iridium tracker that provides secure two-way messaging, automated location reporting, and emergency alerting using Iridium Enhanced SBD.

How does SHOUT nano-100 work?

It acquires position via a GPS L1 receiver and sends messages and location reports over the Iridium satellite network. It can be configured and used standalone or paired to a smartphone via Bluetooth for messaging workflows.

Why is SHOUT nano-100 important?

It enables reliable tracking and emergency alerting for personnel operating beyond cellular coverage, while supporting security controls such as AES encryption and closed user groups for managed deployments.

What are the benefits of SHOUT nano-100?

Key benefits include a small body-worn form factor, IP67 ruggedization, frequent reporting capability (down to 60 seconds), smartphone pairing, and security features such as AES-256 and closed user groups.

Summary

The BSN NAL SHOUT nano-100 is a low-profile, ruggedized handheld/body-worn satellite tracker built around Iridium Enhanced SBD for secure two-way messaging, frequent automated location reporting, and emergency alerting. With IP67 sealing, published MIL-STD references, smartphone pairing via Bluetooth, and security controls such as AES-256 and closed user groups, it is designed for professional field operations that require dependable tracking and communications outside terrestrial coverage.
