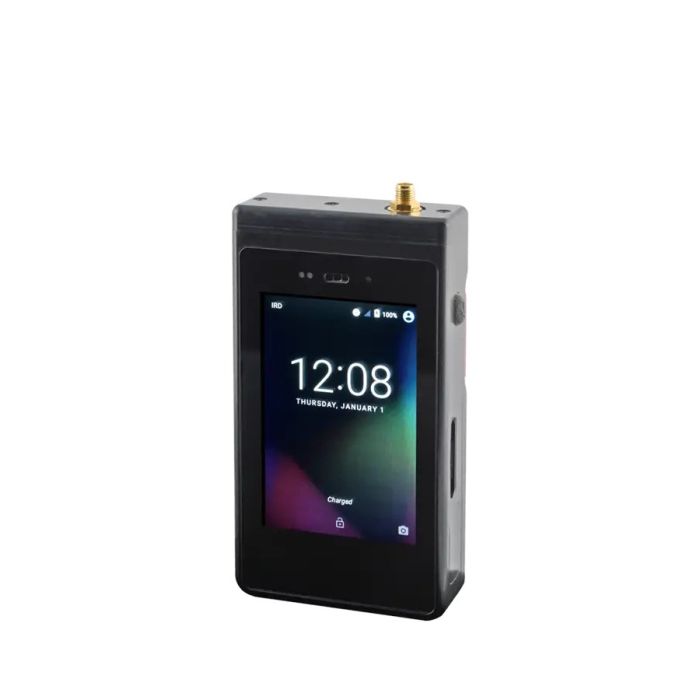

BSN NAL Handheld Tracker With Iridium Voice & PTT (SHOUT sp)

BSN NAL Handheld Tracker With Iridium Voice & PTT (SHOUT sp)

The SHOUT sp is built for Iridium NEXT, and its published feature set includes SBD, SMS, and voice calls, with PTT capability depending on service provisioning and gateway use.

Design and Features

Rugged “satellite smartphone” form factor

The SHOUT sp is designed like a compact smartphone but optimized for field operations. Product documentation highlights:

• High-resolution touchscreen

• Bluetooth

• 3.5 mm headset jack

• Guarded 911/alert switch

• IP67 ingress protection rating (dust-tight and water resistant to immersion under defined conditions)

This combination targets use cases where teams need a familiar touchscreen UI while maintaining ruggedness and a dedicated emergency activation control.

Multi-service Iridium communications stack

The SHOUT sp is described as combining:

• Iridium SBD for tracking and short data messaging

• Iridium SMS support

• Iridium voice calls

• Push-to-Talk (PTT) support (service-dependent)

Iridium PTT itself is a global group-communications service designed to function like a satellite “walkie-talkie”: push a button and communicate with a defined user group.
In SHOUT sp deployments, PTT availability and behavior can depend on how the device is provisioned and which Iridium service path is used.

Location awareness and tracking workflows

SHOUT sp integrates satellite messaging/tracking features from the broader “SHOUT” family into a handheld interface. In typical usage, the device acquires GPS position and transmits periodic tracking messages (or user-triggered reports) over Iridium SBD, supporting fleet/team visibility and event-based alerts.

User operation constraints: sky view and antenna handling

As with many Iridium handheld devices, reliable operation generally requires a clear view of the sky. The SHOUT sp user guide notes that transmissions typically cannot be performed effectively from inside buildings, emphasizing the need for adequate satellite visibility.

Technology and Specifications

Core published specifications

A widely circulated SHOUT sp product sheet lists the following headline specifications:

• Operating frequency (Iridium): 1616–1626.5 MHz

• Android OS: Android 6.0

• GPS: GPS L1 (C/A) receiver (product sheet lists performance figures)

• Wireless: Wi-Fi (802.11 a/b/g/n) and Bluetooth (Class II)

• Environmental: IP67; operating temperature range shown in the product sheet

• Dimensions: 122 × 74 × 31 mm (4.8 × 3.0 × 1.0 in)

• Weight: ~0.45 kg (16 oz) with antenna

• Battery: rechargeable Li-ion (capacity listed in the product sheet)

Because SHOUT sp is sold into multiple channels and can be provisioned in different ways, procurement teams commonly reference the product sheet and the user guide together for the most reliable baseline.

Provisioning and service requirements

The SHOUT sp user guide describes that airtime/service provisioning is required and references the use of appropriate Iridium service arrangements (including SIM usage) depending on the target service environment.
This is especially relevant for PTT: Iridium PTT is a distinct service that requires compatible provisioning, talkgroup configuration, and a managed PTT environment.

Applications and Use Cases

Remote field teams and expeditionary operations

SHOUT sp is used where teams require:

• a dependable satellite voice path for direct calls,

• SBD tracking for location visibility and check-ins,

• optional PTT group comms for faster team coordination than dialed calls.

This pattern is common for remote surveying, logistics convoys, infrastructure inspection, environmental work, and expeditionary field operations.

Emergency response and safety signaling

The device’s guarded alert switch and tracking/messaging capability support workflows where a user must rapidly signal an incident while also sharing position. Product materials emphasize emergency-oriented interaction elements (guarded alert, tracking/messaging), which are frequently used in safety programs.

Maritime and land-mobile support roles

In maritime support and land-mobile operations, SHOUT sp can serve as a single handheld device for:

• shore/ship coordination via voice,

• periodic tracking of crew or assets,

• group coordination using PTT where configured.

Government, NGO, and mission operations with mixed comms needs

Organizations that prefer to reduce device count often adopt “one handset” strategies: a single rugged device replaces separate satellite phones and trackers. SHOUT sp’s combined voice + SBD + PTT positioning directly targets this consolidation model.

Advantages / Benefits

Single-device consolidation: voice + tracking + group comms

The defining benefit is consolidation: SHOUT sp is marketed as supporting Iridium voice, SBD tracking/messaging, and PTT on one handheld device, reducing training burden, charging logistics, and field-kit complexity.

Familiar touchscreen UI with ruggedization

The smartphone-style interface can speed adoption for users already trained on Android devices, while the rugged IP67 design and dedicated emergency control support field conditions.

Global communications reach through Iridium

Iridium’s satellite network underpins voice and SBD messaging in remote regions where cellular networks do not exist, while Iridium PTT extends that to instant group communications within configured groups.

FAQ Section

What is the BSN NAL SHOUT sp?

The SHOUT sp is a rugged handheld satellite communicator that combines Iridium voice calling, Iridium SBD tracking/messaging, and (when provisioned) Iridium Push-to-Talk capabilities in an Android touchscreen device.

How does SHOUT sp work?

It uses the Iridium satellite network for voice and short data communications. For tracking, it acquires a GPS position and transmits reports via Iridium SBD. PTT, when enabled, uses Iridium’s PTT service model for group communications.

Why is SHOUT sp important?

It reduces the need to carry separate devices by consolidating voice, tracking, and group communications into one rugged handset—useful for remote operations and safety programs.

What are the benefits of SHOUT sp?

Commonly cited benefits include Iridium voice, SBD tracking/messaging, optional PTT, IP67 ruggedization, and a familiar touchscreen interface for field users.

Summary

The BSN NAL SHOUT sp is an Android-based rugged handheld designed to combine Iridium voice, Iridium SBD tracking/messaging, and (when provisioned) Iridium Push-to-Talk in a single device. With an IP67-rated form factor, a guarded alert switch, and positioning/communications workflows intended for remote environments, it is used to support safety, coordination, and connectivity where terrestrial networks cannot be relied upon.
