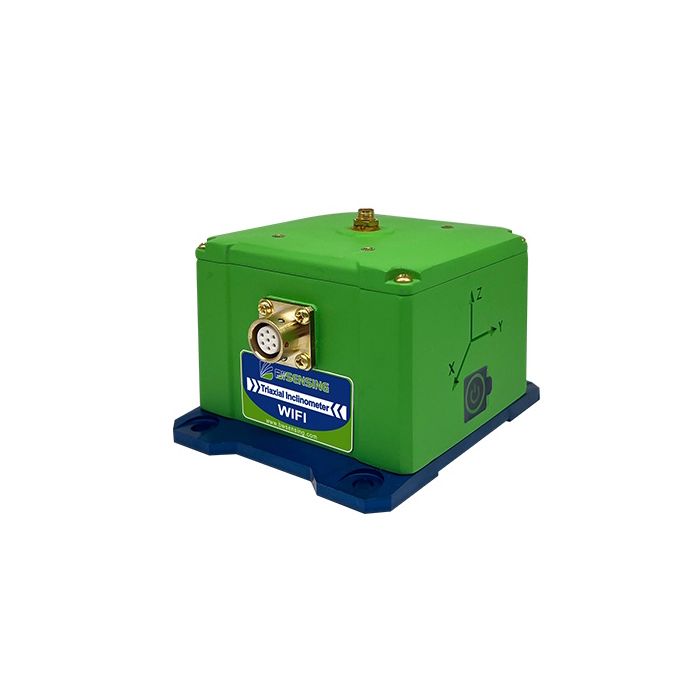

BWSENSING High-Speed Wifi Triaxial Inclinometer (WF-WM400)

BWSENSING High-Speed Wifi Triaxial Inclinometer (WF-WM400)

It is marketed as a high-speed WiFi triaxial inclinometer, combining industrial-grade environmental durability, low-power operation, and field-deployable wireless telemetry for applications where continuous or periodic angle measurements are required without extensive cabling.

The WF-WM400 emphasizes high angular resolution and high sampling/output frequency (for a wireless inclinometer), supporting use cases ranging from bridge tower and dam monitoring to slope disaster prevention and tunnel/foundation pit deformation tracking.

Design and Features

Mechanical and environmental design

The WF-WM400 is built for outdoor and harsh-environment deployment. Key mechanical characteristics include:

• Protection rating: IP68 (specified as 1 m water depth for 24 hours), supporting weather-exposed installations.

• Shell and base materials: ABS with glass fiber reinforcement and an anodized magnesium-aluminum alloy base.

• Installation method: mounting via four M6 screws, intended to keep the sensor tightly coupled to the measured surface.

• Connector type: aviation connector, commonly used for robust field wiring and strain relief.

In practical monitoring deployments, mechanical coupling quality is critical: the manufacturer’s installation guidance highlights the importance of full surface contact, minimizing included angles, and keeping the sensor’s baseline aligned with the measured object’s axis to reduce induced errors from vibration or misalignment.

Power management and field operation features

The WF-WM400 is positioned for long-duration monitoring through low-power modes and wake behaviors:

• Timed wake and motion/exercise wake for energy-efficient sampling schedules.

• Magnetic switch support (often used for sealed, glove-friendly on/off control in the field).

• A stated long-term use case: when uploading once per hour, the device is described as usable for more than 3 years, aligning with multi-season monitoring needs.

Technology and Specifications

Measurement principle and sensing performance

The WF-WM400 is described as a digital inclinometer using a micro-electromechanical (MEMS) sensing mechanism, emphasizing stability, consistency, and industrial-temperature operation.

Core measurement specifications (manufacturer-published)

• Measurement type: Triaxial measurement

• Range: ±60°

• Resolution: 0.001°

• Accuracy (room temperature): 0.005°

• Cross-axis error (25°C): 0.001°

• Zero temperature drift (-40°C to +85°C): ±0.001°/°C

• Output frequency: up to 50 Hz

• Impact resistance: 2000 g, 0.5 ms, 3 times/axis

• MTBF: 100,000 hours

Electrical and communications specifications

The WF-WM400 is characterized as a high-speed WiFi unit with a stated short-range communications envelope suitable for site-level networks:

• Power voltage: 3.6–5 VDC

• Battery voltage: 3.6 VDC

• Working current: 50 mA (average)

• Standby current: 6 μA (typical)

• Disposable battery capacity: 19000 mAh

• Communication distance: maximum 200 m

• Data payload (listed): 20 bytes

• Wiring (aviation plug): includes 5VDC, GND, RXD, TXD pins for power/data interfacing.

Physical dimensions and included items

• Dimensions (antenna not included): approximately L105.2 × W85 × H67 mm (another packaging note references H76 mm; the exact height can vary by measurement context).

• Weight: approximately 450 g (with battery)

• Packing list (typical): sensor unit, battery items, and WiFi antennas (including 4 dBi and 6 dBi options), with optional power/data cable accessories.

Standards and compliance

The documentation lists a quality system standard (ISO 9001:2015) and compliance markings including CE and RoHS, along with multiple referenced test/measurement standards.

Applications and Use Cases

The WF-WM400 is positioned for structural health monitoring (SHM) and geotechnical risk mitigation, particularly where remote, battery-powered sensors reduce installation complexity.

Commonly cited applications include:

• Dangerous housing monitoring (building tilt and settlement warning)

• Bridge tower inclination measurement

• Dam monitoring and embankment stability observation

• Slope disaster prevention (landslide precursors)

• Ancient building protection monitoring (heritage structures)

• Tunnel monitoring and foundation pit observation in construction zones

Advantages / Benefits

High-resolution tilt monitoring with WiFi throughput

With 0.001° resolution and up to 50 Hz output, the WF-WM400 targets scenarios where engineers need both small-change detectability and a higher update rate than typical low-power wide-area (LPWAN) devices.

Field survivability and reduced maintenance

The combination of IP68 sealing, impact resistance, and low standby current supports multi-season installations, including remote or difficult-to-access sites.

Long-term monitoring modes

The stated capability to operate for more than 3 years under hourly uploads (as described in the documentation) aligns with long-duration monitoring programs where battery replacement cycles drive total cost of ownership.

FAQ Section

What is the BWSENSING WF-WM400?

The WF-WM400 is a high-speed WiFi triaxial inclinometer (wireless tilt sensor) designed to measure inclination changes with 0.001° resolution across a ±60° range, typically for infrastructure and geotechnical monitoring.

How does the WF-WM400 inclinometer work?

The WF-WM400 is described as a digital MEMS-based inclinometer, measuring tilt via micro-electromechanical sensing and outputting digital angle data. It supports field operation features such as timed wake and motion wake to manage power consumption.

Why is a high-speed WiFi inclinometer important?

High-speed WiFi inclinometers are useful when you need faster updates (for example, tracking movement during construction phases or dynamic events) while still maintaining high resolution. The WF-WM400 specifies output frequency up to 50 Hz, enabling higher-rate monitoring than many long-range, low-bandwidth wireless sensors.

What are the benefits of the WF-WM400?

Key benefits include high accuracy (0.005° at room temperature), IP68 environmental protection, low standby current, and a stated long-term use profile (e.g., multi-year operation under periodic upload schedules).

Summary

The BWSENSING WF-WM400 High-Speed WiFi Triaxial Inclinometer is a field-ready wireless tilt sensor designed for precision structural and geotechnical monitoring. With 0.001° resolution, ±60° range, and up to 50 Hz output, alongside IP68 sealing and low-power operation, it fits monitoring programs that need reliable, high-quality inclination data over long durations in demanding environments.
