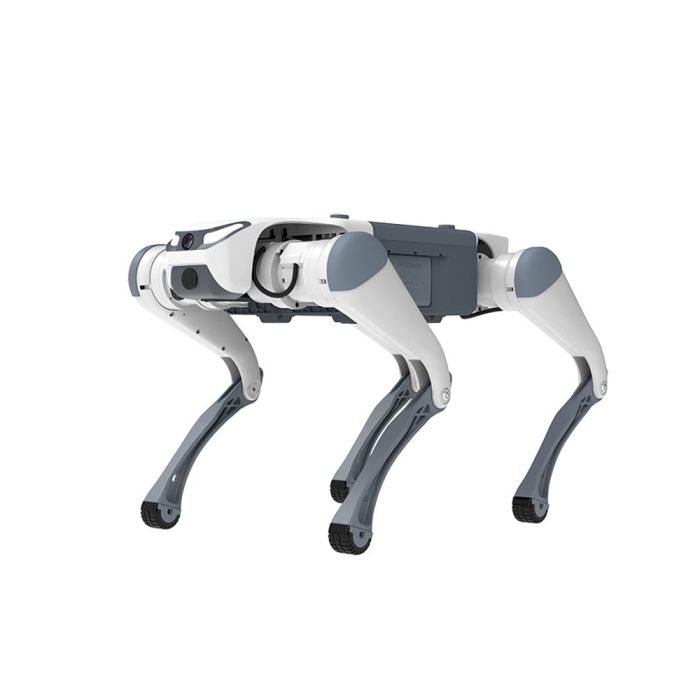

Deep Robotics Lite3 Venture Quadruped Robot Dog

Deep Robotics Lite3 Venture Quadruped Robot Dog

Within the Lite 3 lineup, the Venture variant is commonly described as a middle-tier configuration—more expansion- and connectivity-oriented than entry “Basic” options, while remaining compact compared with heavier industrial quadrupeds.

Deep Robotics presents the Lite 3 family as a modular, bionic quadruped platform intended for applications spanning research, construction, tunnels, and other outdoor or semi-structured environments, where legged locomotion can offer advantages over wheeled robots (e.g., stairs, debris, uneven terrain).

Design and Features

Lightweight, field-capable quadruped form factor

Lite3 Venture retains the Lite 3 series’ compact body size and relatively low weight, which supports rapid setup in labs and easier transport to test sites. Deep Robotics’ published specification for Venture lists a standing footprint of 610 × 370 × 445 mm and a weight of 12.2 kg.

Perception features aimed at practical deployment

On the official Lite 3 specification page, Venture is described with perception features including front/rear obstacle stop and visual following, supporting basic safety behaviors and person/object following demonstrations used in education and prototyping.
These features are typically leveraged in “human-in-the-loop” testing (e.g., supervised patrol, guided route validation, or interactive robotics demos) rather than fully autonomous industrial inspection.

Expansion-friendly connectivity and external power options

A distinguishing point in Venture’s official spec is its connectivity and power expansion: Ethernet ×2 and external power input (24V/12V/5V) are listed under “Connectivity.”
For robotics developers, this matters because it can simplify integration of payload computers, sensors, radios, or custom boards without redesigning the robot’s internal electrical layout.

Mobility and terrain capability as a development baseline

Lite3 Venture is published with a 40° maximum slope capability and 18 cm obstacle clearance, which aligns with legged development goals such as stair/curb traversal, uneven ground experiments, and robustness testing for locomotion control.
Independent retailers also describe the Lite3 Venture with agile movement capabilities (including a listed maximum speed of 2.5 m/s) and a set of pre-programmed behaviors (e.g., flips, jumps, self-righting) used in demonstrations and training.

Technology and Specifications

Official published Venture specifications

Deep Robotics’ official Lite 3 page provides the following Venture specifications:

• Standing dimensions (L × W × H): 610 × 370 × 445 mm

• Weight: 12.2 kg

• Payload capacity: 4.5 kg

• Maximum slope: 40°

• Obstacle clearance: 18 cm

• Continuous operation: 1.5–2 hours

• Maximum range: 4 km

• Perception features: front/rear obstacle stop; visual following

• Interfaces / connectivity: Ethernet ×2; external power input (24V/12V/5V)

Interpreting payload and endurance

The Venture specification pairs 4.5 kg payload with 1.5–2 hours of continuous operation and 4 km maximum range.
In practice, “range” and “runtime” for quadrupeds depend strongly on gait style, speed, terrain, and payload power draw. Some third-party listings may state different payload figures (for example, one reseller describes a higher “continuous load capacity”), so procurement and engineering teams typically rely on the manufacturer spec sheet for baseline planning and confirm payload envelopes for specific accessories.

Venture within the Lite 3 series

Deep Robotics’ official Lite 3 page presents multiple configurations (e.g., Basic, Venture, Pro, LiDAR) with differing payload, interfaces, and perception capabilities. Venture is explicitly specified between Basic and more advanced variants on that page.

Applications and Use Cases

Academic research and applied robotics development

Lite3 Venture is frequently used as a practical platform for:

• legged locomotion testing (gait design, stability, disturbance recovery),

• embedded systems integration (sensors, comms, computing),

• robot software engineering (mission scripts, logging, state estimation),

• early-stage embodied AI experimentation where a reliable hardware baseline is required.

Light-duty patrol and guided inspection pilots

With front/rear obstacle stop and visual following described in the official spec, Venture can be used for supervised patrol demonstrations—such as walking a route with an operator nearby, basic hazard awareness, or payload-carrying trials for lightweight sensor kits.

Education, training, and demonstrations

Retailers highlight demo-oriented behaviors (e.g., jumps, flips, self-righting), which are commonly used in classroom and outreach settings to communicate core ideas in dynamics, control, and perception.
These behaviors also provide a reproducible baseline for verifying mechanical health and tuning control parameters.

Advantages / Benefits

Developer-friendly expansion (Ethernet ×2 and external power input)

The Venture model’s published dual Ethernet and multi-voltage external power input can reduce friction in prototyping: adding a payload computer, integrating sensors, or wiring comms modules is often easier when the robot supports common industrial/robotics interfaces out of the box.

Balanced payload and mobility for field trials

At 12.2 kg with a 4.5 kg payload capacity, Venture supports meaningful payload experimentation (e.g., sensor bars, radios, lightweight payloads) while staying portable enough for small teams to deploy quickly.

Practical terrain capability as a research baseline

The official 40° slope and 18 cm obstacle clearance specifications support common research and pilot scenarios such as ramps, curbs, uneven grass, and small debris—environments where wheeled robots often require carefully prepared paths.

FAQ Section

What is the Deep Robotics Lite3 Venture Quadruped Robot Dog?

The Lite3 Venture is a Lite 3 series quadruped robot configuration from Deep Robotics, specified as a compact legged platform with Ethernet ×2, external power input options, and perception features like obstacle stop and visual following.

How does the Lite3 Venture work?

Lite3 Venture uses quadruped locomotion to traverse uneven terrain and integrates onboard perception features (front/rear obstacle stop, visual following) to support guided operation and prototyping. It also provides wired interfaces and external power input to integrate sensors and payload computing.

Why is the Lite3 Venture important?

Lite3 Venture is designed to reduce the barrier to building legged robotics applications by providing a ready-to-use quadruped platform with published mobility specs and integration-friendly connectivity—useful for research, education, and field pilot projects.

What are the benefits of the Lite3 Venture?

Published benefits include 12.2 kg weight, 4.5 kg payload, 40° slope capability, 18 cm obstacle clearance, 1.5–2 hours runtime, 4 km range, and integration-friendly Ethernet ×2 with external power input options.

Summary

The Deep Robotics Lite3 Venture is a compact quadruped robot dog configuration aimed at developers who need a practical legged platform with field-friendly mobility and integration-ready connectivity. With official published figures of 610 × 370 × 445 mm, 12.2 kg, 4.5 kg payload, 40° slope, 18 cm obstacle clearance, and 1.5–2 hours of operation with up to 4 km range, it supports academic research, robotics education, and early-stage pilots where payload integration and repeatable testing matter.
