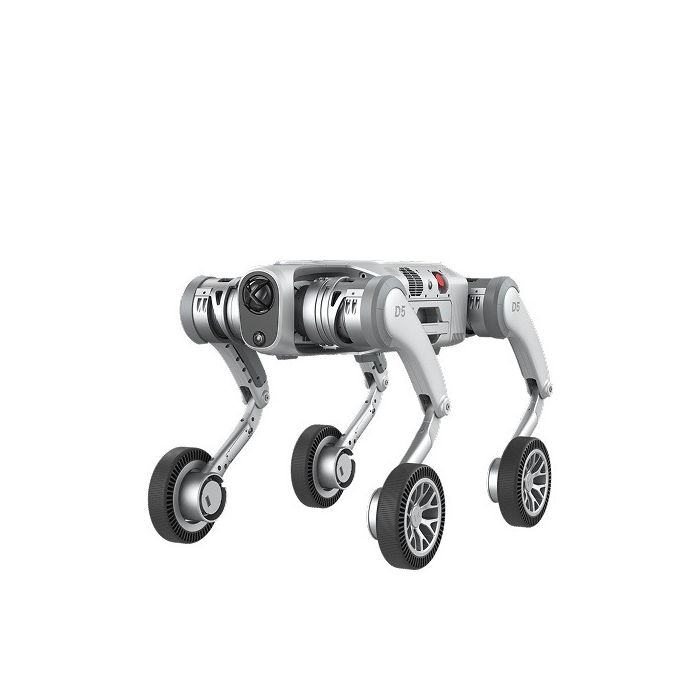

PUDU D5 Quadruped Robot Dog

Pudu markets D5 as a platform for embodied intelligence in the field, combining all-terrain mobility, dense 3D perception, and high onboard compute to enable autonomous navigation, mapping, obstacle avoidance, and supervised remote operation. The official product page emphasizes ruggedization (including IP67 ingress protection and wide temperature tolerance) alongside modular payload expansion for mission-specific kits such as inspection devices and delivery crates.

Design and Features

D5 vs D5-W platform variants

Pudu describes the D5 series as two complementary platforms:

• PUDU D5 (legged quadruped): designed for maximum terrain adaptability (steps, uneven ground, slopes).

• PUDU D5-W (wheeled variant): optimized for mixed surfaces where wheels can provide higher efficiency and sustained speed.

This product split reflects a typical robotics tradeoff: pure legs handle terrain discontinuities better, while wheel-assisted variants can be faster and more energy-efficient on flatter routes.

360° precision perception (LiDAR + fisheye cameras)

Pudu positions perception as a core differentiator. Public materials describe the D5’s sensing stack as:

• Dual LiDAR (Pudu notes production units ship with dual 96-line high-precision LiDAR, with an optional upgrade to dual 192-line LiDAR for specialized applications), and

• Four fisheye cameras for full-view coverage.

High-performance onboard compute for field autonomy

The D5 is marketed with a compute stack built on NVIDIA Orin + RK3588, with up to 275 TOPS of compute performance. Pudu frames this as enabling real-time SLAM, 3D reconstruction, and AI perception tasks in continuous outdoor operations. The product page also highlights thermal design measures (e.g., vapor chamber and dual-fan cooling) intended to maintain performance under sustained workloads.

All-terrain mobility envelope

Pudu publishes headline mobility capabilities for D5, including:

• Step/obstacle height: up to 25 cm

• Climbing: up to 30°

• Descending: up to 45°

• Maximum cruising speed: up to 5 m/s (on suitable surfaces)

These specifications are aimed at practical outdoor and industrial environments where curbs, stairs, ramps, and uneven transitions are common.

Ruggedization for outdoor and industrial conditions

Pudu positions D5 as an all-weather platform, publishing:

• Ingress protection: IP67

• Operating temperature range: -20°C to 55°C

• Cold start: -10°C

This ruggedization is central to the D5’s differentiation from indoor-only service robots.

Human–robot interaction and “intelligent follow”

For field team usability, Pudu highlights:

• Voice and gesture interaction, including “10+ gestures”

• 6-microphone array with noise reduction and sound source localization

• “Intelligent follow” behavior with dynamic obstacle avoidance and trajectory prediction to follow personnel in mixed environments.

Remote operations and modular mission payloads

Pudu describes a remote control and monitoring workflow (“RCOS Remote Control System”) with live camera views and supervision tools, which is a common requirement in industrial robotics where full autonomy may not always be feasible. Pudu also emphasizes an open expansion ecosystem with mission modules such as delivery crates, inspection gimbals/kits, and charging docks.

Technology and Specifications

Physical dimensions and weight

A manufacturer-verified spec summary lists:

• Length: 900 mm

• Width: 543 mm

• Standing height: 572 mm

• Weight (with battery): 61 kg

Mobility and environment specifications

Frequently published capability limits include:

• Max step height: 250 mm

• Max slope: 30°

• Ingress rating: IP67

• Operating temperature: -20°C to 55°C

Payload and endurance (published claims)

Pudu’s public announcement materials describe:

• Stable payload: 30 kg

• Single-charge range: up to 14 km

• “Over two hours of continuous runtime at full load” in some stated conditions.

These values are typically influenced by terrain type, speed settings, and payload mass; for field deployments, mission planning usually includes route profiling and safety margins.

Compute and sensor options

Official product materials specify:

• Compute: NVIDIA Orin + RK3588, up to 275 TOPS

• LiDAR: dual 96-line standard, optional dual 192-line upgrade

• Cameras: four fisheye cameras for panoramic awareness

Applications and Use Cases

Industrial inspection and monitoring

D5 is positioned for autonomous inspection in large industrial sites where conditions include uneven terrain, weather exposure, and complex infrastructure. The combination of rugged mobility, dense 3D perception, and remote supervision tools supports inspection-style workflows such as perimeter checks and asset monitoring.

Security patrol and perimeter operations

Pudu frames D5 for patrol-type tasks that require robust environmental tolerance and predictable autonomy across routes. In practical deployments, patrol robots often blend scheduled autonomy with remote supervision for exceptions.

Campus logistics and field support

Pudu’s series announcement emphasizes large-area navigation capacity (up to “million-square-meter” sites), suggesting target environments such as airports, metro systems, and industrial campuses. In these contexts, D5’s “follow” behavior and payload expansion can support staff by carrying equipment or supplies over long routes.

Research and secondary development

Third-party summaries frequently list secondary development and R&D platform use cases, reflecting that field-capable quadrupeds are often adopted as testbeds for autonomy, mapping, and payload sensor development.

Advantages / Benefits

Automation in environments that defeat indoor-only robots

The D5’s rugged mobility and IP67 protection directly target environments where indoor delivery robots struggle: uneven terrain, outdoor corridors, slopes, and weather exposure. This expands the scope of robotics into higher-variance environments.

High compute + dense perception for real-time autonomy

With up to 275 TOPS compute and dual LiDAR plus fisheye cameras, D5 is positioned to run multiple autonomy functions concurrently—SLAM, obstacle avoidance, path planning, and perception—during continuous operation.

Modular mission payload ecosystem

A modular payload approach (inspection kits, delivery crate, gimbals, charging dock) allows D5 to be adapted across applications without changing the base platform—important for fleet owners who want multi-mission flexibility.

Human-friendly control options

Voice/gesture interaction, intelligent follow, and remote supervision tools reduce the operational burden on field teams and can support safer deployments where full autonomy is not always possible.

FAQ

What is the PUDU D5 Quadruped Robot Dog?

The PUDU D5 is an industry-grade autonomous quadruped robot designed for outdoor and industrial environments, with rugged mobility, 360° perception, and modular payload support.

How does the PUDU D5 work?

D5 uses a high-compute autonomy stack (NVIDIA Orin + RK3588, up to 275 TOPS) and multi-sensor perception (dual LiDAR plus fisheye cameras) for mapping, navigation, and obstacle avoidance, with optional remote supervision tools.

Why is the PUDU D5 important?

It brings autonomous robotics to environments that are hard to automate—uneven terrain, slopes, stairs, and weather—through features like 25 cm step handling, IP67 protection, and -20°C to 55°C operation.

What are the benefits of the PUDU D5?

Commonly cited benefits include 30 kg payload, rugged outdoor tolerance (IP67, wide temperature range), high-speed all-terrain mobility, dense perception options, and modular mission payload expansion.

Summary

The PUDU D5 Quadruped Robot Dog is an industry-grade autonomous quadruped platform designed for complex outdoor and industrial operations. With published capabilities including 25 cm step handling, IP67 ruggedization, operation across -20°C to 55°C, a high-compute autonomy stack up to 275 TOPS, and dual LiDAR plus panoramic cameras for 360° perception, D5 is positioned for inspection, patrol, campus logistics, and R&D workflows where conventional indoor robots are not sufficient
