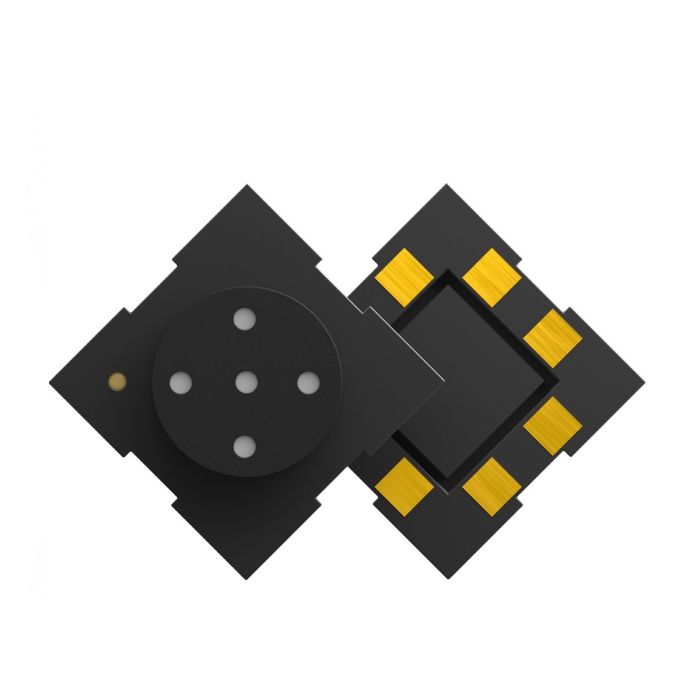

Paxini PX-3AX (PX-3AX)

Paxini PX-3AX (PX-3AX)

The PX-3AX is positioned as part of PaXini’s broader tactile sensing product matrix, which includes higher-end ITPU tactile sensors (such as PX-6AX series) and dexterous-hand platforms used in embodied intelligence research and commercialization.

In practical terms, PX-3AX is designed to help machines interpret contact interactions more like humans do detecting not only how hard an object is pressed, but also how the force is oriented and changing over time. This capability is especially valuable in tasks where vision alone is insufficient, such as grasp stabilization under occlusion, friction uncertainty, or contact-rich manipulation.

Unlike many traditional tactile sensors that focus on single-axis pressure, PaXini markets the PX-3AX as a multidimensional tactile sensor with selectable measurement outputs such as three-axis force, enabling “multi-dimensional tactile perception” across a wide range of scenarios.
Industry coverage has also described the PX-3AX as a cost-effective tactile sensor aimed at consumer-level robotics and smart home fields, emphasizing high cost performance and multi-scenario tactile perception.

Design and Features

Ultra-compact sensor package for dense integration

One of the defining characteristics of the PX-3AX is its extremely small physical size. PaXini lists the sensor dimensions as 6 mm × 6 mm × 4 mm, making it suitable for compact robotics and embedded designs where available space is limited.

This miniature size supports integration into:

• robot fingertips and finger pads (single-point or distributed layouts),

• compact grippers and end-effectors,

• automotive or consumer electronics prototypes requiring embedded touch feedback,

• wearables and human-machine interface hardware where low profile is critical.

Multidimensional tactile perception with selectable outputs

PaXini describes the PX-3AX as supporting multidimensional tactile perception with “15 kinds” of tactile perception modes, along with selectable measurement outputs such as three-axis force (in Newtons).
This design philosophy aligns with modern robotic manipulation needs, where stable grasping depends on interpreting both normal forces (push/press) and tangential forces (shear), which are strongly related to slip onset.

Industrial-grade durability in a consumer-grade product class

Although the PX-3AX is described as a consumer-grade ITPU tactile sensor, PaXini highlights robust traits typically associated with industrial sensing hardware, including:

• IP68 dustproof and waterproof rating,

• 200% safety overload,

• 300% impact overload,

• industrial-grade durability listed at 3 million cycles,

Technology and Specifications

Core specifications (officially listed)

PaXini publishes the following key parameters for PX-3AX:

• Product type: Consumer-grade ITPU tactile sensor

• Dimensions (L×W×H): 6 × 6 × 4 mm

• Measurement output (optional): Three-axis force (N)

• Communication interface: 6-wire

• Sampling frequency: 1000 Hz

• Accuracy: 1%FS

• Safety overload: 200%

• Impact overload: 300%

• Ingress protection: IP68

PaXini also lists “high precision measurement” and references 0.01 N as a precision indicator on the PX-3AX product page.

Measurement range and configurable options

PX-3AX measurement range is described as adjustable, with a default specification of:

• Normal (axial) force: 0–25 N

• Tangential (shear) force: ±10 N

PaXini also notes selectable “range specifications” including 30H, 40H, and 50H options.
While the naming convention is not fully explained in the public snippet, it indicates that the PX-3AX line may be offered in different range/firmness configurations depending on application needs.

Role within PaXini’s tactile ecosystem

PaXini’s official website frames its tactile stack as a multidimensional product matrix built around ITPU technologies and Hall-array-based approaches, positioning PX-3AX as the consumer-grade tactile sensor within the ecosystem.
In parallel, PaXini’s CES-era communications emphasize “tactile infrastructure” for embodied AI, reflecting a broader industry push toward combining tactile feedback with perception and control.

Applications and Use Cases

Robotics and gripper touch feedback

A primary application of PX-3AX is to provide multi-axis tactile feedback for robotics, enabling improved:

• contact detection,

• force-controlled gripping,

• slip-aware grasp stabilization,

• safer interaction with fragile or irregular objects.

Because tactile sensing remains reliable when cameras are blocked by the robot’s own hand or the object itself, it is often used as the final layer of “truth” during real manipulation.

Automotive and interior sensing

PaXini highlights the automotive sector as one of the product application categories linked to PX-3AX.
In automotive contexts, compact tactile sensors can support:

• tactile interaction surfaces and intelligent controls,

• occupancy and pressure/contact detection modules,

• embedded touch sensing in constrained spaces.

Wearables and human-machine interaction

Wearable technologies increasingly rely on miniature sensors to measure touch, pressure, or contact dynamics. PaXini lists wearables as a target domain in distributor-style product descriptions, reflecting use in tactile-enabled interfaces or sensing garments and accessories.

Medical and healthcare scenarios

PaXini lists “medical and health care” as an application category connected to PX-3AX.
In medical or rehab-adjacent robotics, tactile sensing can support controlled contact, safe force limits, and improved compliance when interacting with human users or sensitive tools.

Warehousing logistics and industrial manufacturing

PaXini’s website explicitly includes warehousing logistics and industrial manufacturing as application areas.
In these sectors, tactile sensing can improve reliability for pick-and-place, handling variable packaging surfaces, and reducing drops or crushing during automated handling.

Advantages / Benefits

Multi-axis tactile perception improves real-world grasp reliability

The PX-3AX’s three-axis force capability enables robots to distinguish normal force from tangential loading. In manipulation, tangential force trends are among the most useful early indicators for slip, helping systems adjust grip before failure occurs.

High update rate supports real-time control loops

With a listed 1000 Hz sampling frequency, PX-3AX is suited to closed-loop tactile control, where fast feedback enables micro-corrections during dynamic interactions such as lifting, turning, or pushing.

Compact size supports dense tactile arrays

At 6×6×4 mm, PX-3AX can be deployed as a single sensor or repeated as a dense array across contact surfaces (fingertips, palm zones, gripper jaws), enabling more informative tactile coverage without major mechanical redesign.

Environmental resilience and overload protection

The IP68 protection rating, combined with overload tolerance and impact overload specifications, supports tactile deployment in environments where dust, moisture, and repeated contact are unavoidable.

Positioning for cost performance in consumer-level robotics

Independent industry reporting describes PX-3AX as a consumer-level tactile sensor focused on cost performance and multi-scenario multidimensional tactile perception, which aligns with the growing market for affordable embodied intelligence and robotics experimentation.

FAQ Section

What is Paxini PX-3AX (PX-3AX)?

Paxini PX-3AX is a consumer-grade ITPU multidimensional tactile sensor designed to measure touch forces in a compact 6×6×4 mm package, with optional three-axis force output.

How does Paxini PX-3AX work?

PX-3AX captures multidimensional tactile signals (including three-axis force) and transmits them through a 6-wire interface, enabling robots or devices to interpret normal and tangential contact forces during interaction.

Why is Paxini PX-3AX important?

PX-3AX helps robotic systems achieve more stable manipulation by adding touch feedback at 1000 Hz sampling, with IP68 sealing and overload tolerance—useful for slip-aware gripping and contact-rich control.

What are the benefits of Paxini PX-3AX?

Key benefits include three-axis tactile sensing, miniature size (6×6×4 mm), 1000 Hz sampling, IP68 protection, and durability rated at 3 million cycles in PaXini’s published parameters.

Summary

Paxini PX-3AX (PX-3AX) is a compact, consumer-grade ITPU multidimensional tactile sensing unit designed to bring high-frequency, multi-axis touch perception into robotics and embedded products. With official specifications including 6×6×4 mm size, optional three-axis force output, 1000 Hz sampling, adjustable measurement range (default 0–25 N normal and ±10 N tangential), plus IP68 sealing and overload tolerance, the PX-3AX is positioned as a practical tactile building block for modern manipulation, HMI, and embodied intelligence systems where robust touch feedback improves real-world reliability.
