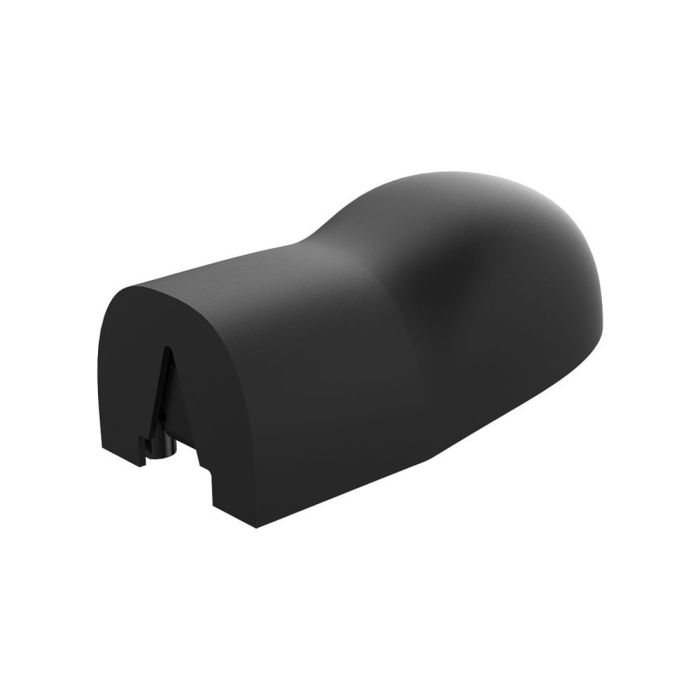

Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S3013-Core)

Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S3013-Core)

In Paxini’s PX-6AX GEN3 lineup, the DP-S3013-Core variant is positioned as an integrated “fingertip + fingerpad” tactile sensor (“指尖指腹一体传感器”), intended to provide a continuous tactile surface across the distal finger area rather than a single-point contact.

PX-6AX GEN3 devices are presented by the manufacturer as high-integration tactile modules that combine sensor structure, signal conditioning, and calibrated outputs. The broader GEN3 family highlights features such as IP68 dust/water resistance, chip-level anti-magnetic interference, factory calibration, and durability claims on the order of ten million continuous presses.

Design and Features

Form factor and mechanical integration

The DP-S3013-Core module is specified at 30 × 13 × 10 mm (L×W×H), aligning with slender finger geometries where tactile coverage must fit within compact fingertip shells.
Paxini’s product materials describe the GEN3 lineup as offering multiple shapes across fingertip, fingerpad, and palm coverage, enabling designers to select sensor footprints matching different hand kinematics and finger segment sizes.

“Fingertip + fingerpad” continuous touch surface

Unlike fingertip-only modules, an integrated fingertip/fingerpad layout can improve perception during:

• rolling contacts (when an object shifts across the finger surface),

• pinch-to-power grasps (transition from fingertip pinch to deeper pad support),

• edge/corner detection (contact spans multiple zones at once),

• slip monitoring (tangential force change across the contact patch).

Environmental and durability characteristics

In manufacturer-facing descriptions, PX-6AX GEN3 emphasizes:

• IP68 protection rating (dust-tight and water-resistant)

• durability claims including 10,000,000+ continuous press cycles (industrial durability positioning)

• chip-level anti-magnetic / improved interference resistance
  These claims are generally relevant for hands deployed in labs, pilot lines, or semi-structured industrial environments, where tactile skins may face dust, splashes, or repeated contact fatigue.

Technology and Specifications

Sensing approach and outputs

PX-6AX GEN3 is presented as a high-resolution tactile system capable of reporting multiple layers of tactile information. Product parameter descriptions include outputs such as:

• 3D distributed force arrays (spatial force distribution),

• 3D resultant force,

• 3D torque/moment.

Key published performance figures

From Paxini’s published product parameters for PX-6AX GEN3:

• Maximum tactile signal count: up to 717 channels

• Measurement range: normal (法向) 0–25 N, tangential (切向) ±10 N

• Operating temperature: 0–50 °C

• Sampling frequency: 1,000,000 Hz (as listed)

• Maximum output frequency: 1,000 Hz

• Minimum detectable force: 0.01 N

• Spatial resolution: 0.1 mm

• Safety overload: 200%

Applications and Use Cases

Dexterous robotic hands and grippers

The most direct use case for the DP-S3013-Core is dexterous robotic hands where tactile sensing is needed for:

• stable pinch grasping of small objects (electronics parts, labware, fasteners),

• compliant grasping of fragile items (packaging, soft goods, food containers),

• force-limited manipulation where the robot must avoid damaging objects,

• in-hand adjustment (micro-sliding/rolling) guided by tangential force changes.

Research in tactile perception and embodied AI

High-channel tactile sensors are frequently used in research that combines touch with vision and proprioception:

• contact-rich policy learning (reinforcement learning / imitation learning),

• material classification (texture, stiffness proxies via contact signatures),

• slip prediction and recovery,

• sim-to-real tactile transfer (training models on structured tactile features).

Human–robot interaction and safe contact

For robots that physically interact with human environments (assistance, service robotics, guided handling), tactile sensing can provide:

• safer contact detection,

• controlled grip force,

• feedback when objects are unexpectedly bumped or pulled.

Advantages / Benefits

High-density tactile information for robust grasping

A key advantage of multi-channel tactile sensing is the ability to detect distributed contact rather than a single scalar force. This supports:

• better grasp stability on irregular shapes,

• detection of “contact edge” movement,

• early slip detection via tangential changes.

Fine force sensitivity and fast control loops

Published parameters such as 0.01 N minimum force, high sampling, and 1,000 Hz maximum output suggest suitability for real-time force feedback and “delicate touch” behaviors (e.g., gently closing fingers until stable contact is achieved).

Environmental sealing (IP68) and durability positioning

For deployed systems, sealed tactile units can reduce maintenance overhead compared with exposed sensor films. Paxini explicitly markets IP68 and high-cycle durability for PX-6AX GEN3.

FAQ Section

What is the Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S3013-Core)?

It is a multi-dimensional tactile sensing module in Paxini’s PX-6AX GEN3 “Core” series, designed as an integrated fingertip + fingerpad sensor for robotic fingers, with a specified size of 30×13×10 mm.

How does the PX-6AX GEN3 tactile sensor work?

Paxini describes PX-6AX GEN3 as a high-integration tactile unit that outputs distributed 3D force information, resultant force, and torque, enabling robots to infer contact location and direction rather than only total force magnitude.

Why is the PX6AX-GEN3-DP-S3013-Core important for robotics?

Dense tactile sensing can improve grasp stability, slip detection, and force-limited manipulation. Published GEN3 parameters such as 0.01 N minimum force, up to 717 tactile channels, and up to 1,000 Hz output support responsive touch-driven control.

What are the benefits of the PX-6AX GEN3 Core series tactile sensors?

Benefits emphasized in the manufacturer’s materials include IP68 sealing, factory calibration, durability claims on the order of 10 million presses, and published tactile performance metrics (force range, resolution, and update rate) intended for dexterous-hand integration.

Summary

The Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S3013-Core) is a compact integrated fingertip-and-fingerpad tactile sensor module aimed at dexterous robotic manipulation. With manufacturer-published metrics spanning fine force sensitivity (0.01 N), high channel count (up to 717), fast output (up to 1,000 Hz), and IP68 sealing, it is positioned for robots that require reliable, high-resolution touch feedback to grasp, stabilize, and manipulate objects in real time.
