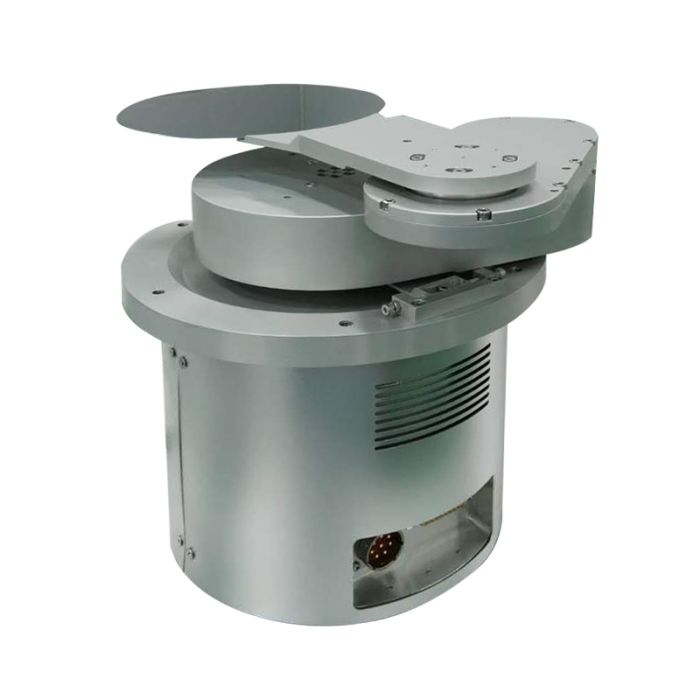

SIASUN SM11 Vacuum Robot (SM11)

Vacuum robots like the SM11 are engineered to operate inside vacuum chambers and cluster-tool architectures, where contamination control, repeatability, and reliable cycle life are critical. The SM11’s published configuration emphasizes a direct-drive motor structure (minimizing belts/gears), an expanded I/O module for interlocks and sensors, and safety features such as configurable safety zones and collision protection to reduce losses from misoperation.

SIASUN (Siasun Robot & Automation Co., Ltd.) is a China-based robotics and automation company founded in 2000, known for industrial robots and automation solutions across multiple industries.

Design and Features

Direct-drive vacuum-oriented architecture

A central design element highlighted for the SM11 is its direct-drive motor structure, described as improving vacuum suitability and stability by avoiding internal gears, belts, and similar transmission parts. In vacuum handling, fewer wear components can reduce particulate generation and help maintain consistent motion characteristics over long service intervals.

SCARA-style single-arm configuration

The SM11 is described as a Single SCARA arm type, with a compact kinematic layout suitable for in-chamber transfer tasks where footprint, reach geometry, and predictable planar motion are important.

Control and integration features

Published product notes emphasize controls and integration features commonly requested in fab automation environments:

• New I/O module with additional input/output pins configurable for interlocks and sensor detection (including support for hardware interrupt on input signals).

• PC remote operation software support and communications over Ethernet and serial interfaces.

• A large-screen teach pendant designed for commissioning and service workflows, with mention of hot-plug support.

Safety: zones and collision protection

The SM11 listings describe safety zone configuration and sensitive collision protection, positioned as safeguards against operator error and to reduce tool downtime or damage.

Environmental customization

For specialized applications, the SM11 is described as customizable for high-temperature and corrosion-resistant requirements—an important consideration for certain vacuum process modules and adjacent environments where materials, coatings, and cable/connector choices can be constrained.

Technology and Specifications

The following specifications are published in distributor-style product listings for SIASUN PINUS-SM11 (SM11 Vacuum Robot):

Core mechanical and motion specs

• Robot body weight: 23.5 kg

• Arm type: Single SCARA

• Number of axes: 1

• Travel (stroke): 530 mm

• Cycle time (example): R-axis < 3 s (Home to Extend 502.5 mm)

• Repeatability: R: ±0.05 mm (3σ)

Vacuum and cleanliness performance (published)

• Leak rate: < 1 × 10⁻⁹ std. cc/sec He

• Vacuum level: 5 × 10⁻⁹ Torr

• Cleanliness class: ISO Class 1

Reliability and lifecycle

• MCBF: > 11 million cycles

• Composite motion support: Supported

Electrical and interfaces

• Power input: AC 208 V, 50/60 Hz

• Voltage fluctuation range: 208 V +10% / -15%

• Communication interfaces: Ethernet / Serial

• I/O interlock support: Supported

• Safety zone support: Supported

• Collision protection: Supported

Compliance (published)

• Certifications: SEMI S2 / SEMI F47 / CE

Note: Detailed end-effector options (e.g., wafer size compatibility, blade geometry, material selections, and sensor packages) are not consistently disclosed in public distributor snippets; these are often finalized per tool OEM or fab integration requirements.

Applications and Use Cases

Semiconductor vacuum transfer and cluster tools

Vacuum robots are widely used to move sensitive substrates between process modules in sealed environments, where maintaining vacuum integrity and minimizing contamination are priorities. The SM11’s published vacuum level, helium leak rate, and ISO Class 1 cleanliness align with this general class of applications.

Precision handling in contamination-sensitive processes

In many high-precision workflows, contamination avoidance is addressed through cleanliness design, stable motion, and integration of interlocks/sensors. The SM11 descriptions emphasize interlock-capable I/O, sensor detection, and safety features intended to reduce handling errors.

Custom environments (high temperature / corrosion resistance)

Where process-adjacent conditions impose constraints (thermal loads, corrosive byproducts, or stringent materials requirements), the SM11 is described as supporting customization for high-temperature and corrosion-resistant characteristics.

Advantages / Benefits

• Vacuum suitability and stability: Direct-drive architecture is positioned to improve vacuum characteristics and operational smoothness by reducing internal transmission components.

• High cleanliness target: Published ISO Class 1 cleanliness and vacuum metrics are aimed at contamination-sensitive environments.

• Integration flexibility: Expanded I/O with interlocks, Ethernet/serial communications, and PC remote operation support simplify tool integration.

• Safety and error reduction: Safety zones and collision protection are intended to reduce downtime and damage caused by misoperation.

• Lifecycle focus: The listed >11 million cycles MCBF indicates design intent for continuous production use.

FAQ Section

What is the SIASUN SM11 Vacuum Robot (SM11)?

The SIASUN SM11 Vacuum Robot is a vacuum-rated transfer manipulator (also listed as PINUS-SM11) designed for automated handling tasks in high-vacuum, contamination-sensitive manufacturing environments.

How does the SM11 Vacuum Robot work?

The SM11 uses a SCARA-style single-arm mechanism and a direct-drive motor structure to execute repeatable in-chamber transfers. It supports interlocks and sensor integration via an expanded I/O module, and can be controlled through interfaces such as Ethernet/serial with optional PC remote operation support.

Why is the SM11 important in vacuum automation?

Vacuum automation requires reliable motion with low contamination risk and stable vacuum integrity. The SM11 is positioned around these needs with published helium leak-rate and vacuum level metrics, ISO Class 1 cleanliness, and safety features like collision protection and safety zones.

What are the benefits of the SM11 Vacuum Robot?

Commonly cited benefits include direct-drive stability, expanded I/O for interlocks and sensors, support for safety zones and collision protection, and published targets for ISO Class 1 cleanliness and high cycle life (>11 million cycles MCBF).

Summary

The SIASUN SM11 Vacuum Robot (PINUS-SM11) is a vacuum transfer manipulator designed for high-vacuum, contamination-sensitive automation, combining a direct-drive architecture, Single SCARA configuration, and integration features such as expanded I/O interlocks, Ethernet/serial communications, safety zones, and collision protection. With published vacuum performance metrics (including helium leak rate and vacuum level) and cleanliness targeting ISO Class 1, it is positioned for demanding vacuum-handling applications where repeatability, reliability, and tool integration are critical.
