XAG P150 Staðlaður Landbúnaðar Drone 14KW 4B4C Kitt

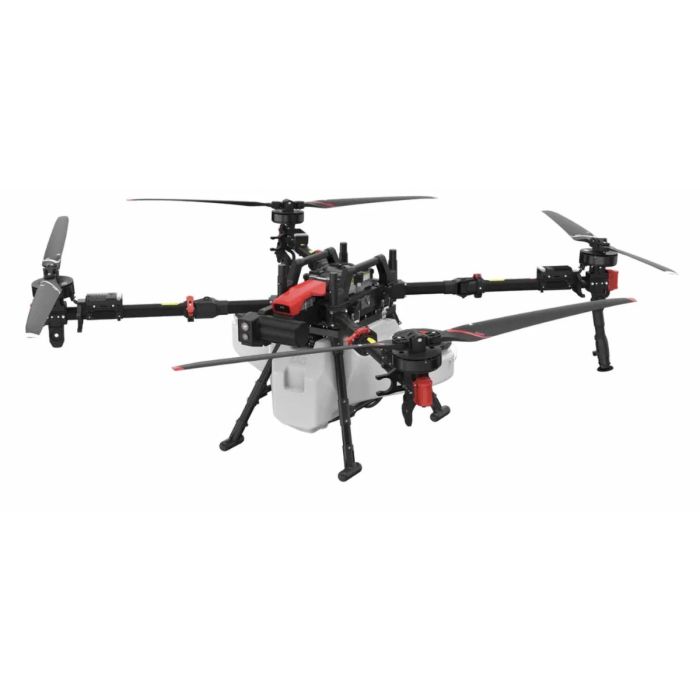

XAG P150 Standard Agricultural Drone 14KW 4B4C Kit

In reseller catalogs, the “14kW 4B4C” designation commonly indicates a 14-kilowatt-class charging setup paired with four batteries (4B) and four chargers (4C) to support rapid battery turnover and high daily utilization. A representative listing for the kit describes a package price around US$34,830 and explicitly references four smart batteries, four fast chargers, and parallel charging components sized for “14kW.”

The P150 platform itself is positioned by XAG as a multi-role agricultural drone for spraying, spreading, and field mapping, with emphasis on throughput and automation. XAG’s official P150 materials highlight a 70 kg maximum payload, a 30 L/min maximum spraying flow rate, and the ability to support variable-rate application and terrain-aware flight workflows.

Design and Features

Heavy-lift, modular agricultural UAV platform

The XAG P150 is built around a large, foldable multi-rotor platform designed to carry substantial payloads and to be transported and deployed efficiently. XAG describes it as “next-level efficiency” hardware intended for spraying, spreading, and mapping missions.

RevoSpray and RevoCast modular payload systems

XAG markets the P150 with modular payload systems, including the RevoSpray rotary atomization spraying system and the RevoCast spreading system, allowing operators to switch between liquid crop protection and granular applications depending on seasonal needs.

“14kW 4B4C” power ecosystem focus

The defining feature of the 14kW 4B4C kit is the inclusion of a larger charging stack intended to reduce downtime. One public bundle description lists four smart “Super Charge” batteries, four CM13600S chargers, and parallel charging kits sized for a “14kW” configuration, along with a battery cooling tower and an XRTK7 mobile station.
In operational terms, this bundle structure targets workflows where the aircraft is kept airborne with a tight battery rotation rather than waiting on a single charger.

Technology and Specifications

Payload, performance, and application systems

XAG’s official P150 specifications describe a platform designed for high-throughput application:

• Maximum payload: 70 kg

• Spraying: dual flexible impeller pumps with up to 30.0 L/min total flow rate, and a spray system designed for 5–10 m effective spray width depending on conditions

• Atomization: centrifugal atomizing nozzles with droplet size range 60–500 μm (dependent on operating factors), with high rotational speed spray discs

• Spreading: a granule container rated at 115 L and a maximum spread rate stated as 280 kg/min under test conditions (granule properties affect actual results)

Protection rating and field durability

XAG lists the P150’s protection rating as IPX6K, describing it as suitable for harsh field environments and “fully washable” in at least one retailer presentation of platform specs.

Charging and battery rotation (kit-dependent)

The “14kW 4B4C” naming is best understood as a kit-level throughput descriptor rather than a single-component rating. One public listing for the kit references four batteries and four chargers plus parallel charging components designed for 14kW operation.
Separately, other P150 bundles on the market emphasize fast charging with cooling (e.g., “mist cooling” charging stations) and minute-scale charging claims under specific conditions, reflecting the broader P150 ecosystem’s focus on battery turnaround.

Applications and Use Cases

Large-area crop spraying (liquid application)

The P150 is intended for high-throughput spraying in open fields and other demanding environments, with XAG highlighting substantial flow rate capability and adjustable droplet size for different crop protection objectives.

Granular spreading (fertilizer, seed, and similar materials)

With a dedicated spreading module and high stated maximum spread rate, the P150 platform is commonly positioned for fertilizer distribution and other granular tasks where aerial spreading can reduce ground compaction and cover large areas quickly.

Field mapping and prescription workflows

XAG’s P150 materials reference mapping-related features such as real-time 3D terrain mapping and prescription/variable-rate application workflows, supporting use cases where application rates are adjusted by zone to optimize inputs.

High-utilization contractor operations

Kits emphasizing 14kW-class charging and multi-battery/multi-charger bundles are particularly relevant for service providers who operate long days across multiple farms, where battery logistics can become the primary bottleneck.

Advantages / Benefits

Reduced downtime via higher charging throughput

A central benefit of the 14kW 4B4C kit concept is operational continuity: with multiple chargers and multiple batteries, the aircraft can return to service faster than with minimal charging infrastructure.

Platform versatility (spray + spread + map)

The P150 is marketed as a single platform capable of spraying, spreading, and mapping, enabling one airframe to serve multiple seasonal roles with modular payload systems.

High payload class for demanding missions

A 70 kg payload class positions the P150 among heavier agricultural UAVs, supporting fewer trips for the same delivered volume (subject to local regulations, safety constraints, and agronomic requirements).

FAQ Section

What is the XAG P150 Standard Agricultural Drone 14kW 4B4C Kit?

It is a bundled configuration of the XAG P150-series agricultural drone plus a higher-throughput charging package. “4B4C” commonly denotes four batteries and four chargers, and listings for the kit reference parallel charging components sized for 14kW-class operation.

How does the XAG P150 work?

The P150 is a modular agricultural UAV designed for spraying, spreading, and mapping, using dedicated payload systems (e.g., RevoSpray and RevoCast) and an automation stack that supports terrain-aware flight and application workflows.

Why is the XAG P150 important in precision agriculture?

High-capacity agricultural drones can apply inputs efficiently and reduce reliance on ground equipment in certain scenarios. XAG positions the P150 around high payload capacity (70 kg) and high application throughput (e.g., 30 L/min spraying flow and high-rate spreading), supporting time-sensitive farm operations.

What are the benefits of the 14kW 4B4C configuration?

Compared with minimal charging setups, a multi-battery/multi-charger bundle can reduce downtime and improve daily utilization. Public kit descriptions specifically highlight the inclusion of multiple batteries and chargers plus parallel charging components sized for 14kW-class charging throughput.

Summary

The XAG P150 Standard Agricultural Drone 14kW 4B4C Kit is a professional agricultural UAV bundle built around the XAG P150 platform and a high-throughput power ecosystem intended to keep operations moving. XAG’s official specifications emphasize a 70 kg payload platform with substantial spraying (30 L/min) and spreading capability, while the “14kW 4B4C” kit format is marketed around multi-battery, multi-charger rotation with parallel charging components to reduce downtime and support high daily productivity.
