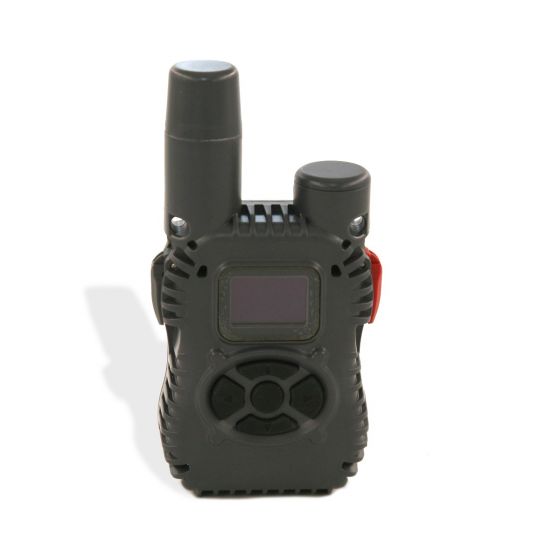

BSN-NAL SHOUT NANO-100 (ShoutNano100)

SHOUT NANO-100 (ShoutNano100)

Description

The SHOUT nano 100 is a handheld or body-worn narrowband SATCOM device with embedded Iridium® and GPS antennas.  The SHOUT nano 100 can be connected to a smartphone via Bluetooth for two-way messaging, including free text, canned messages, and a combination. It can send a position report every hour for up to 2,000+ reports. The device can periodically wake from sleep to send its position report to a command center. A dual-button 911 feature is used to send immediate emergency/alert notifications to that command center or directly to a designated point of contact. Data packaged in either standard or 256-bit AES encrypted format, or upon request, data can also be sent in encrypted PECOS formats to include Brevity codes.

Key Features:

• Small Size, Low-Profile
•  Low-Cost, Handheld, Body-Worn tracking, and messaging device
• Programmed for either DoD or commercial Iridium Gateways
• Ultra-Low Power Consumption
• Automatic Location Reports (+2,000 reports)
• 911 Alert Capability
• Bluetooth
• Free-text, canned messages or combined free-text and canned messages via smartphone
• Data logging
• Optional 256-bit AES encryption
• Real-time, pole-to-pole coverage
• AC Adapter & USB-C Port
• Integrated Motion Sensor
•  USB Interface
• 72-Channel GPS receiver with -160 dBm sensitivity
• IP67 Rated

Compatible Airtime Service:

SBD

Specifications
