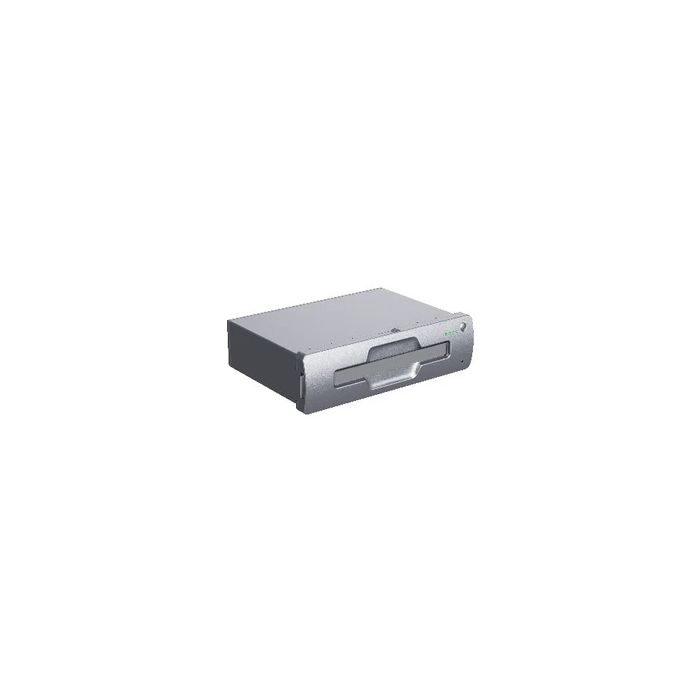

Unitree B2 Standard Battery (B2-SBATTERY)

B2 Standard Battery B2 Series Accessories (B2-Sbattery) (B2-SBATTERY)

Built to support long-duration field operation, high peak motor loads, and quick mission turnaround, the B2 Standard Battery is engineered for demanding robotics use cases such as industrial inspection, research and development, autonomous patrol, and mobile payload transport.

As a dedicated battery module for an industrial-grade legged platform, the B2-SBATTERY emphasizes energy density, hot-swap convenience, and battery management safety, enabling the B2 robot to sustain multi-hour deployments with minimal downtime. Official and reseller specifications commonly describe the battery as 45Ah with approximately 2.25–2.27kWh of stored energy, supporting extended walking endurance and high-performance locomotion.

Design and Features

High-capacity modular pack

The B2 Standard Battery is designed as a plug-in, quick-release module, allowing field replacement without extensive tools or disassembly. Unitree highlights quick battery change capability and compatibility with optional autonomous charging solutions for the B2 platform.

Integrated battery management (BMS)

Like many robotics-grade power systems, the B2 battery includes an integrated Battery Management System (BMS) to supervise cell balancing, over-current protection, thermal monitoring, and safe charge/discharge limits. Retail technical descriptions explicitly note a built-in BMS intended to improve reliability and service life in industrial environments.

Industrial deployment orientation

In contrast to consumer robotics batteries, the B2-SBATTERY is intended to support:

• Long runtime under mixed locomotion (walking, stair climbing, obstacle traversal)

• High payload power demands, including mounted sensors and optional compute modules

• Reduced operational interruptions via fast swap logistics

Unitree positions the B2 system for heavy-duty field work, and the battery is a core enabler of that endurance profile.

Technology and Specifications

Core electrical characteristics

Published specifications for the B2 Standard Battery commonly include:

• Capacity: 45Ah

• Energy: ~2250Wh (2.25kWh) to ~2268Wh (2.268kWh)

• Voltage (platform listing): 58V

• Standard/nominal voltage (some listings): 50.4V

Note on voltage labeling: Some sources describe the B2 battery as a 58V system, while others list 50.4V as the standard/nominal voltage. This is typical for multi-cell lithium packs where “system voltage” may be stated differently depending on whether the reference is nominal, rated, or marketing platform voltage.

Charging performance

Several retailer listings specify that the battery supports a maximum charging current of 15A, which can reduce turnaround time between deployments when used with compatible charging hardware.

Physical characteristics

Documentation-oriented sources list:

• Battery weight: ~12.2 kg

• Quick-release design: intended for easy replacement

Typical endurance with Unitree B2

When installed on the Unitree B2 quadruped, published endurance metrics include:

• Overall runtime: ~4–6 hours (mixed usage)

• Continuous walking, no load: >5 hours and >20 km

• Continuous walking, 20 kg payload: >4 hours and >15 km

Because runtime depends heavily on gait, terrain, payload, and ambient temperature, these figures are generally presented as performance ranges rather than fixed values.

Applications and Use Cases

Industrial inspection and patrol

The B2 Standard Battery supports long-duration robotic missions for infrastructure and facility inspection—such as power plants, warehouses, pipelines, or large industrial yards—where extended runtime improves coverage per shift and reduces manual intervention. Unitree promotes B2 use in industrial detection and environment perception scenarios, including mapping and sensing.

Robotics R&D and field testing

In research environments, the ability to swap batteries quickly enables repeated trials for:

• autonomy testing

• locomotion experiments

• perception algorithm validation

• payload integration (LiDAR, depth cameras, thermal sensors)

Battery modularity is especially valuable when testing multiple configurations in a single day.

Payload operations and mobile integration

The Unitree B2 platform supports high payload operation, and the battery must provide stable voltage under peak draw when carrying equipment (inspection sensor pods, compute stacks, or specialized tooling). Endurance specifications published for 20 kg walking use help illustrate this design intent.

Advantages / Benefits

Extended operational endurance

With roughly 2.25 kWh of energy, the B2-SBATTERY is positioned for multi-hour robotic activity and practical long-distance traversal, including with meaningful payload mass.

Quick swap and reduced downtime

A plug-in, quick-change design simplifies battery rotation strategies, supporting continuous operation across shifts—especially when paired with a charging rack workflow or optional autonomous charging ecosystem.

Safety and reliability features

The integrated BMS and industrial packaging concepts are intended to support safer, more predictable operation in demanding conditions such as vibration, variable temperatures, and high transient loads.

FAQ Section

What is the Unitree B2 Standard Battery (B2-SBATTERY)?

The B2-SBATTERY is a high-capacity lithium battery pack made for the Unitree B2 industrial quadruped robot. It provides approximately 45Ah capacity and roughly 2.25 kWh of stored energy for multi-hour operation.

How does the Unitree B2 battery work?

The battery supplies regulated DC power to the B2 robot’s drive system and onboard electronics. An internal BMS (Battery Management System) monitors charging, discharge, temperature, and cell balancing to help maintain safe and reliable operation.

Why is the B2-SBATTERY important for Unitree B2 deployments?

Runtime directly determines how long the robot can perform inspection, patrol, mapping, or payload tasks. Unitree’s published endurance figures (often 4–6 hours) indicate that the battery is central to the B2’s long-mission capability.

What are the benefits of the Unitree B2 Standard Battery?

Key benefits include high energy capacity (~2.25 kWh), quick-release replacement, and support for long continuous walking endurance (often cited as >5 hours unloaded).

Summary

The Unitree Robotics B2 Standard Battery (B2-SBATTERY) is a robotics-grade, quick-release power module built to support the Unitree B2 quadruped’s industrial mission profile. With a published 45Ah capacity and approximately 2.25–2.27kWh of stored energy, it enables multi-hour runtime, practical field swapping, and stable performance for inspection, research, and payload-driven deployments—making it a foundational component of the B2 ecosystem.
