XAG Revosling (05-002-02682)

XAG Revosling (05-002-02682)

When installed, RevoSling shifts the drone’s role from crop-application (spraying/spreading) to field logistics, enabling the aircraft to carry farm inputs, tools, or harvested produce between plots where roads are rough, flooded, or otherwise difficult to access.

Within XAG’s product ecosystem, RevoSling is positioned as a mission-specific payload module—similar in concept to XAG’s RevoSpray (liquid application) and RevoCast (granular spreading) systems—except its function is transport and delivery rather than application. XAG markets RevoSling as a way to keep supplies moving in terrain and weather conditions that commonly interrupt farm operations.

Design and Features

Modular “transport mode” payload architecture

RevoSling is designed as a swap-in module for the P150 Max platform, allowing operators to change the drone’s mission profile with dedicated hardware rather than improvised mounting. XAG frames this module swap as “adding the RevoSling module” to transform the P150 Max into a logistics solution for carrying cargo across plains, hills, and mountainous terrain.

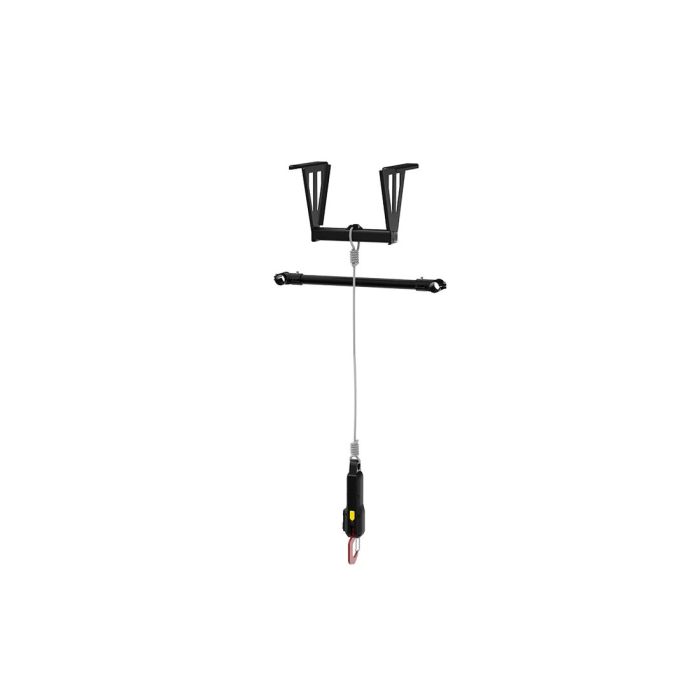

Two-part system: landing gear + smart hook

XAG’s published specifications describe RevoSling as comprising:

• a landing gear component (the structural base for transport operations), and

• a smart hook component (the compact hanging/attachment mechanism used to suspend cargo).

This two-part structure supports real-world workflows where the landing gear handles clearance and stability, while the hook supports attachment and release actions.

Cargo suspension via rope and controlled standoff

RevoSling is designed to operate with a required rope length of 5–15 meters, allowing cargo to hang below the aircraft for obstacle clearance and safer downwash separation from fragile loads (e.g., bags of seed, crates, or tools).

Ecosystem compatibility (aircraft and controllers)

XAG’s spec table lists RevoSling as compatible with:

• XAG P150 Max Agricultural Drone

• XAG P150 2024 Agricultural Drone
  and compatible remote controllers:

• XAG SRC5 Smart Remote Controller

• XAG SRC4 Smart Remote Controller

This pairing matters operationally because logistics missions still require stable command-and-control, mission planning, and safety behaviors (e.g., abort, return-to-home, and cautious flight profiles under load).

Technology and Specifications

XAG provides a set of concrete, field-relevant specifications for RevoSling within the P150 Max specification page:

Payload and physical characteristics

• Maximum payload (rated): 80 kg

• RevoSling module weight: 5.6 kg

• Dimensions (landing gear only): 859 × 595 × 532 mm

• Dimensions (smart hook only): 300 × 76 × 59 mm

These values indicate that the system is intended for heavy-duty logistics on a large-format ag-drone platform, not lightweight consumer UAV carrying.

Operating environment and rope requirements

• Operating temperature: 10–45 °C

• Storage temperature: −20–60 °C

• Required rope length: 5–15 m

In practice, rope length selection influences clearance, payload swing dynamics, and landing/delivery procedures. Operators typically choose shorter rope for tighter control in confined areas and longer rope where ground obstacles or vegetation demand more separation.

Smart hook charging

• Charging voltage/current: 5 V / 2 A

This suggests the smart hook includes powered electronics (commonly for status, communication, or actuated release functions in “smart” payload hooks), and it is intended to be charged with ubiquitous 5V power sources.

Applications and Use Cases

Farm input delivery between plots

RevoSling’s most direct use case is transporting seed, fertilizer bags, crop-protection supplies, tools, or spare parts to field teams when roads are muddy, flooded, or too slow. XAG explicitly describes carrying “farm inputs, tools, or produce” across rough or flooded ground as a core scenario.

Produce and harvest logistics in difficult terrain

In hilly or mountainous farms where vehicles cannot reach terraces or narrow paths, an aerial sling load can reduce time lost to manual carrying. XAG’s product messaging frames RevoSling as enabling safe and efficient transport across plains, hills, and mountainous terrain.

Emergency resupply and field maintenance

During breakdowns or time-sensitive operations, crews may need rapid delivery of critical items (e.g., a replacement part, tools, or a small fuel/power accessory) without waiting for vehicle access. In these workflows, the drone’s value is not only speed but also route independence.

Contractor and multi-farm service routes

For service providers covering multiple farms, logistics time can be a major hidden cost. RevoSling is positioned to reduce “dead time” moving supplies, particularly when the same platform already supports spraying or spreading modules and can be repurposed rapidly.

Advantages / Benefits

High rated lift for a modular logistics payload

A published 80 kg maximum payload places RevoSling in a heavy-lift category for agricultural drone logistics, enabling meaningful loads rather than small parcels.

Terrain independence and continuity of operations

XAG repeatedly frames RevoSling as a solution for disrupted access—rough ground, flooded roads, or hard-to-reach terrain—supporting continuity during weather events that would otherwise pause field work.

Defined rope-length operating window for safer procedures

By specifying a 5–15 m rope length requirement, XAG formalizes how the system is intended to be used, which helps standardize procedures across crews (attachment, takeoff, cruise, approach, and set-down).

Ecosystem integration

Compatibility with SRC5/SRC4 controllers and P150 Max / P150 2024 supports predictable deployment inside XAG’s broader field automation environment.

FAQ Section

What is the XAG RevoSling (05-002-02682)?

The XAG RevoSling is a modular aerial cargo transport system for compatible XAG agricultural drones (including P150 Max), enabling the aircraft to carry loads for farm logistics rather than spraying or spreading.

How does XAG RevoSling work?

RevoSling uses a landing gear module and a smart hook, suspending cargo beneath the drone using a rope (XAG specifies a 5–15 m rope length requirement). The drone then transports the load between locations and can set it down or deliver it under controlled procedures.

Why is XAG RevoSling important?

It addresses a common farm bottleneck: moving inputs, tools, or produce when roads are rough, flooded, or hard to access. XAG positions it as a way to keep supplies moving between plots in difficult terrain.

What are the benefits of XAG RevoSling?

Key benefits include a published 80 kg maximum payload, standardized rope-length operating guidance (5–15 m), and compatibility with XAG’s P150 Max/P150 2024 platforms and SRC-series controllers for integrated operations.

Summary

The XAG RevoSling (05-002-02682) is a purpose-built cargo transport module that converts compatible XAG agricultural drones—especially the P150 Max—into an aerial logistics platform for moving farm inputs, tools, or produce across difficult terrain and disrupted access routes. With manufacturer-published specifications including 80 kg maximum payload, defined 5–15 m rope length, and compatibility with SRC5/SRC4 controllers and P150 Max / P150 2024 aircraft, RevoSling is positioned as a practical field logistics tool within XAG’s modular precision-agriculture ecosystem.
