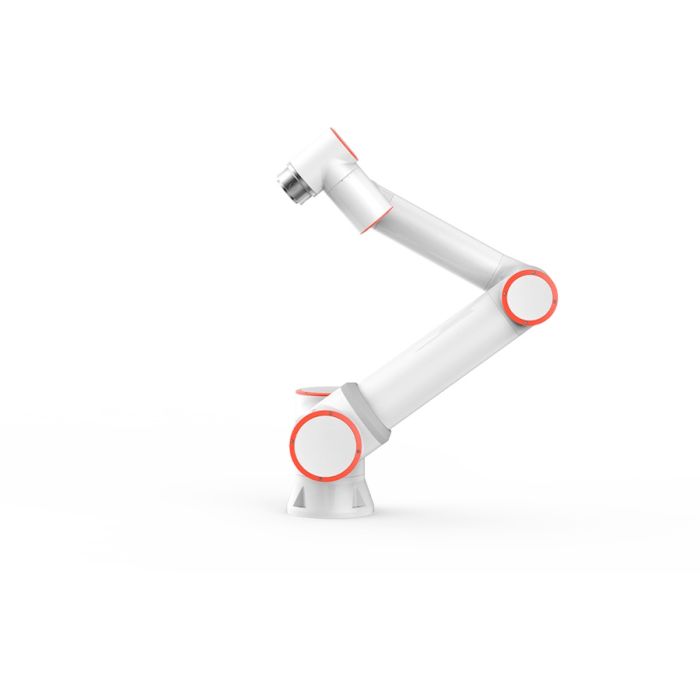

Fairino Cobot (FR16)

Fairino Cobot (FR16)

The Fairino FR16 is a 6-axis collaborative robot (cobot) in the FAIRINO FR-series designed for higher-payload, medium-reach automation where facilities want the flexibility of a cobot platform while handling heavier end effectors, larger parts, or multi-part picks. Fairino’s FR-series product line is presented as a family spanning multiple payload classes (including FR3/FR5/FR10/FR16 and larger), enabling integrators to standardize on a common platform while selecting the arm size that matches the workstation’s payload and reach requirements.

In commonly published specifications, the FR16 is rated at 16 kg payload with a 1034 mm reach, and pose repeatability around ±0.03 mm (ISO 9283)—placing it in the “heavy-duty cobot” category often used for material handling, machine tending, packaging, and process tooling where smaller 3–10 kg cobots lack sufficient margin.

Design and Features

Heavy-duty cobot form factor

Unlike compact cobots designed mainly for bench-top tasks, FR16 is positioned for heavier industrial work. Fairino’s official FR16 page describes it as suited to automated tasks with high payload demands. The higher payload class expands the range of feasible end-of-arm tooling (EOAT), including multi-cup vacuum arrays, larger grippers, and process tools that require additional dress packs.

6-axis collaborative architecture

FR16 uses six rotating joints (6 degrees of freedom), the standard configuration for cobots that need full pose control (position + orientation) at the tool flange. This allows the robot to approach fixtures from multiple angles, rotate parts for placement, and run short toolpaths for light process applications.

Human–machine interface and deployment workflow

Specification tables for FR16 commonly list a 10.1-inch teach pendant and/or a mobile terminal Web App for operation and programming. This aligns with modern cobot deployment: rapid point teaching for simple jobs and network-enabled configuration/monitoring for production cells.

Platform claims: encoders, openness, and certification context

Fairino’s FR-series overview states that each robot joint has dual encoders to achieve higher precision and describes an open operating platform intended to lower the barrier for use in different scenarios. The same overview also notes FR-series products are certified with CE and that the company operates under ISO 9001 quality management system references.
(As with any industrial robot purchase, compliance scope can vary by region and exact configuration; buyers typically confirm the documentation for the shipped SKU.)

Technology and Specifications

Core performance (commonly published)

• Payload: 16 kg (some spec tables also list Max: 20 kg)

• Reach: 1034 mm

• Axes / DoF: 6-axis

• Pose repeatability: ±0.03 mm (ISO 9283)

Speed and motion envelope

Some FR16 specification tables list a typical TCP speed around 2 m/s, while other distributor listings show maximum TCP speed figures closer to 1 m/s depending on how “typical” vs “maximum” is reported and under what payload conditions.
In real deployments, achievable speed is governed by payload, EOAT inertia, path type, and collaborative safety limits.

Environmental and acoustic characteristics

• Ingress protection: commonly listed as IP54, with IP65 optional in many distributor specs

• Noise: published values vary by source (examples include <70 dB and <65 dB)

• Mounting: commonly listed as any orientation

Some market pages also promote IP66 as an optional upgrade or configuration claim; as with other ratings, integrators typically validate the exact IP level and what it covers (arm, connectors, dress pack) for the delivered configuration.

Integration and software ecosystem

Fairino’s ecosystem positioning emphasizes practical integration pathways. Public FR-series materials describe an open operating platform, and third-party catalogs commonly list standard industrial connectivity and API/SDK approaches used for PLC integration and developer-led automation.
In practice, FR16 deployments often pair the robot with:

• Safety devices (E-stops, scanners, light curtains where required by risk assessment)

• EOAT (vacuum grippers, parallel grippers, magnetic grippers for metal parts)

• Sensors/vision for bin picking, inspection positioning, or alignment tasks

Applications and Use Cases

Material handling and kitting

A 16 kg-class cobot is commonly selected for material handling where the payload budget must cover both the part and the gripper (and sometimes multiple parts per pick). Catalog sources list FR16 for general handling and automation scenarios, consistent with its payload class.

Machine tending and fixture loading

FR16’s reach (~1.0 m) supports loading/unloading of CNC machines, presses, test fixtures, and packaging equipment, especially when doors and clamps require approach angles that benefit from six-axis motion. Higher payload also helps when using robust grippers designed for reliable clamping in oily or dusty conditions.

Welding and process-adjacent tasks (system dependent)

Some robotics software catalogs and application lists include welding among FR16’s typical manufacturing uses. In practice, welding suitability depends on the complete solution: torch and cable routing, wire feed placement, seam tracking (if used), fume extraction, and cell safety design—rather than the arm alone.

Palletizing-adjacent and end-of-line operations

While high-speed palletizing often uses dedicated palletizing robots or higher payload systems, FR16-class cobots can support end-of-line steps such as placing cartons on short pallets, loading totes, arranging layers in small batch flows, and feeding palletizing stations—particularly in high-mix environments where reconfiguration speed matters.

Research, pilot automation, and standardized cobot fleets

Fairino’s FR-series positioning as a multi-model family supports “fleet standardization” strategies: using similar software workflows, spares planning, and operator training across multiple payload classes in the same facility. FR16 often becomes the “heavy station” member of that fleet for tasks that exceed smaller cobots’ payload margins.

Advantages / Benefits

Payload headroom for industrial EOAT

The most direct benefit of FR16 is payload margin. More payload capacity makes it easier to use robust grippers, multi-part picks, or heavier process tools while maintaining stability and repeatability.

Compact reach for dense cells

At roughly 1034 mm reach, FR16 can serve deeper fixtures without requiring a large footprint robot, supporting dense cells where floor space and access lanes are limited.

Precision-oriented positioning claims

Published ±0.03 mm (ISO 9283) pose repeatability supports use cases where consistent placement matters: fixture loading, repeatable approach paths, and process steps that rely on steady tool positioning.

Standardization within the FR-series platform

Fairino’s FR-series overview highlights an open operating platform and dual-encoder joints, presenting FR16 as part of a broader standardized ecosystem rather than a one-off arm.

FAQ Section

What is the Fairino FR16?

The Fairino FR16 is a 6-axis collaborative robot commonly specified at 16 kg payload with 1034 mm reach and ±0.03 mm (ISO 9283) pose repeatability, designed for heavier-duty collaborative automation.

How does the Fairino FR16 work?

FR16 uses six motorized joints to position an end effector in 3D space. It is typically taught and operated via a 10.1-inch teach pendant or Web App, and integrated into cells through I/O, safety devices, and factory communication interfaces depending on the installation.

Why is the Fairino FR16 important?

FR16 expands collaborative automation into heavier tasks by offering a 16 kg payload class while retaining a cobot-oriented deployment model useful for machine tending, handling, and end-of-line workflows where smaller cobots lack payload margin.

What are the benefits of the Fairino FR16?

Commonly cited benefits include 16 kg payload, 1034 mm reach, published ±0.03 mm ISO 9283 repeatability, and compatibility with a standardized FR-series ecosystem that Fairino describes as using dual-encoder joints and an open platform approach.

Summary

The Fairino FR16 is a heavy-duty 6-axis collaborative robot built for automation tasks that require substantially more payload margin than compact cobots, while maintaining a flexible deployment model. Commonly published specifications place it at 16 kg payload, 1034 mm reach, and ±0.03 mm (ISO 9283) pose repeatability, supporting use cases such as material handling, machine tending, and end-of-line operations. Fairino’s FR-series positioning highlights a multi-model lineup with platform claims such as dual-encoder joints, an open operating approach, and region-dependent certifications, making FR16 a mid-to-high payload option within a standardized cobot family.
