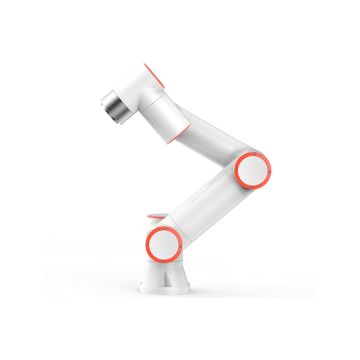

Within the FAIRINO FR-series ecosystem, the FR3 platform is generally presented as a 6-DOF collaborative arm with a 3 kg nominal payload, 622 mm reach, and ±0.02 mm pose repeatability (ISO 9283). The FR3(WML) variant is specifically associated with welding-oriented features—most notably extended wrist rotation (±360° on the final axis) to support curved and wrap-around weld paths (for example, pipes and complex shapes).

Design and Features

Ultra-lightweight, portable collaborative arm

Open listings describe FR3(WML) as ultra-lightweight and suitable for single-person handling in compact deployments, emphasizing portability for production cells that must be moved or reconfigured.
The underlying FR3 platform is also described as a collaborative robot intended for flexible “human–robot collaboration” applications across multiple industries.

Six-axis kinematics optimized for welding access

FR3(WML) is presented as a 6-axis cobot designed to combine manufacturing tasks (pick-and-place, tending, light assembly) with welding workflows.
A key differentiator highlighted in multiple sources is full continuous-style wrist rotation on the sixth axis (±360°), enabling tool orientation around cylindrical parts and curved surfaces with fewer repositioning steps.

Collaborative operation and safety-oriented behavior

FR3(WML) is marketed as supporting safe collaboration, with listings explicitly mentioning collision-related safety for human–robot collaboration.
The general FR3 specification pages frame the platform as a collaborative robot designed for shared workspaces and rapid deployment through intuitive programming methods.

Technology and Specifications

Core FR3 platform specifications

Public FR3 technical specifications commonly cited for the FR3 platform include:

• Payload: 3 kg (with “Max: 5 kg” noted on one specification page)

• Reach: 622 mm

• Degrees of freedom: 6 rotating joints

• Pose repeatability: ±0.02 mm (ISO 9283)

• Typical TCP speed: 1 m/s

• Ingress protection: IP54 (IP65 optional)

• Noise: <65 dB

• Mounting orientation: Any orientation

• Tool I/O power supply: 24V / 1.5A

FR3 pages also describe a controller ecosystem with industrial I/O and networking:

• Controller I/O shown as DI 16 / DO 16 and AI 2 / AO 2, plus Modbus TCP/RTU and other industrial protocol options (listed as optional) including CC-Link, Profinet, Ethernet/IP, EtherCAT.

• SDK / development support listed as C#, C++, Python, ROS, ROS 2.

FR3(WML) variant characteristics relevant to welding

For FR3(WML), public catalog descriptions emphasize:

• Ultra-lightweight design aimed at easy handling and flexible manufacturing layouts

• High-precision welding positioning paired with collaborative safety claims (collision-related protections)

• ±360° sixth-axis rotation to support curved-surface and pipe welding with fewer compromises in torch orientation

• Published baseline figures in some listings: payload 3 kg, reach 622 mm, repeatability ±0.02 mm

Applications and Use Cases

Collaborative welding and flexible fabrication

FR3(WML) is explicitly positioned for welding tasks, including complex geometries where extended wrist rotation can reduce the need to reposition the workpiece. Typical cobot-welding deployments include:

• TIG/MIG process cells for light-gauge parts

• Small-batch fabrication where programming speed matters

• Pipe or curved-surface welding where tool orientation is constrained

Multi-purpose manufacturing cells

The FR3 family is also described for broader flexible manufacturing scenarios—such as light handling and production support—often cited across electronics/3C, metal processing, and gluing applications in general FR3 descriptions.

Education, prototyping, and integrator development

Where supported, SDK references (C#/C++/Python and ROS/ROS 2) position the platform for integrators and R&D teams building custom applications, including machine vision, path planning, or process monitoring.

Advantages / Benefits

Mobility of deployment in real production environments

An “ultra-lightweight” positioning supports rapid redeployment: moving a cobot between benches or cells can reduce downtime in facilities that run variable product mixes.

Welding access via extended wrist rotation

The frequently cited ±360° sixth-axis capability is a practical advantage for weld paths around cylindrical parts and complex shapes, helping maintain torch angles and travel directions without excessive re-fixturing.

Collaborative design with industrial connectivity

The FR3 platform’s published specs include IP54 (optional IP65) and industrial I/O and networking options, which matter for production integration and shop-floor robustness.

FAQ Section

What is the Fairino FR3(WML)?

Fairino FR3(WML) (FR3-WML) is an ultra-lightweight six-axis collaborative robot positioned for flexible manufacturing and high-precision welding, commonly listed with 3 kg payload, 622 mm reach, and ±0.02 mm repeatability.

How does the Fairino FR3(WML) work?

FR3(WML) operates as a 6-DOF cobot arm controlled via a controller and teach pendant/web interface, executing programmed motion paths for manufacturing tasks. For welding, it is marketed with ±360° rotation on the sixth axis to maintain torch orientation around curved parts.

Why is the Fairino FR3(WML) important?

It represents a cobot approach to welding where portability and flexible deployment are emphasized, alongside welding-access features (notably extended wrist rotation) that can reduce repositioning and simplify certain weld geometries.

What are the benefits of the Fairino FR3(WML)?

Commonly stated benefits include ultra-lightweight handling, collaborative positioning, and ±360° sixth-axis rotation intended to improve access for pipe/curved-surface welding and flexible manufacturing setups.

Summary

The Fairino FR3(WML) is presented as an ultra-lightweight, six-axis collaborative robot tailored for flexible manufacturing and welding, with public listings emphasizing high-precision positioning, collaborative-safety positioning, and a defining welding-oriented capability: ±360° rotation on the sixth axis for complex curved-surface weld paths. As part of the FR3-class cobot platform (3 kg payload, 622 mm reach, ±0.02 mm repeatability), FR3(WML) fits organizations seeking a compact, integrator-friendly cobot arm for small-batch production cells and adaptable welding automation.
