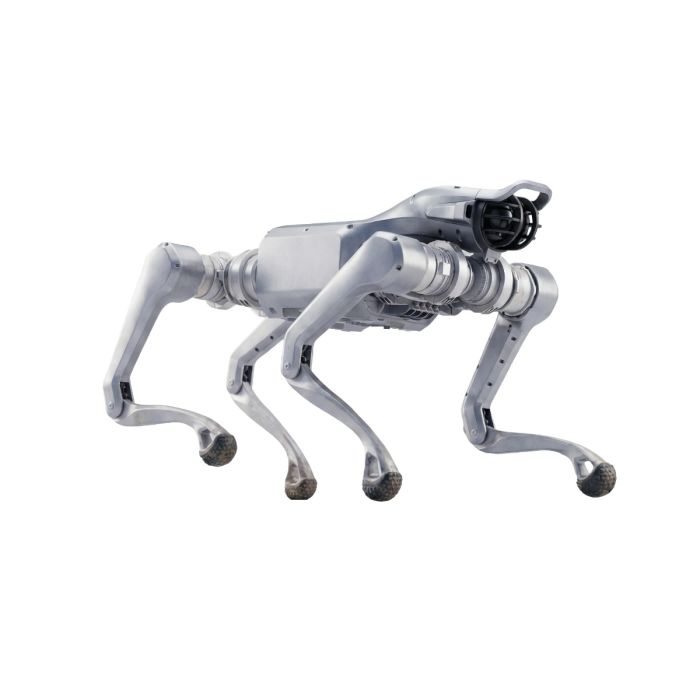

Unitree AS2 Air Industrial Quadruped Robot Dog

Unitree AS2 Air Industrial Quadruped Robot Dog

Within the AS2 family, Unitree lists three configurations—AS2 Air, AS2 Pro, and AS2 Edu—with Air intended as a lower-cost entry point that preserves the core mechanical platform (size, 12-DOF quadruped layout, and base mobility) while using a lighter sensor and battery configuration than the Pro/Edu variants.

AS2 Air is often described in press coverage as a 40-pound (≈18 kg) class robot that can run at multi-meter-per-second speeds and handle real terrain features such as stairs and steep slopes (capability and performance vary by configuration and conditions).

Design and Features

Compact chassis and quadruped layout

Unitree lists the AS2 platform (including AS2 Air) with a standing size of 720 × 378 × 457 mm and a lying-prone size of 776 × 378 × 233 mm, with approx. 18 kg weight (with battery).
This compact geometry is intended to fit through typical doors and narrow passages while still enabling stable legged locomotion on uneven surfaces.

12-DOF leg actuation and joint design

AS2 is a 12-DOF quadruped (three actuated joints per leg), a common architecture for dynamic robot dogs. Unitree’s AS2 materials highlight industrial-oriented joint components such as dual encoders and industrial-grade bearing structures, with performance figures scaling by configuration (Air vs Pro vs Edu).

Sensor stack and perception options (Air vs Pro/Edu)

Unitree differentiates AS2 Air by its perception hardware. Third-party reporting and Unitree’s spec tables indicate:

• AS2 Air uses Unitree’s L2 ultra-wide-angle LiDAR (a lighter, entry sensor option) while

• AS2 Pro/Edu can include higher-end industrial LiDAR packages (e.g., 64–128-line classes in some reported summaries).

Across all AS2 configurations, Unitree shows an HD camera as part of the platform sensor set in its published overview/spec context.

Industrial usability features

AS2 Air inherits much of the “industrial-capable” framing of the AS2 line, including a focus on carrying small payloads over distance, operating across mixed terrain, and supporting field workflows (inspection/patrol). However, developer-focused features such as open secondary development are typically emphasized more strongly for the Edu configuration than for Air.

Technology and Specifications

Mechanical and dimensional specifications (official)

Unitree’s AS2 spec table lists the following for the AS2 series (including Air):

• Standing size: 720 × 378 × 457 mm

• Lying prone size: 776 × 378 × 233 mm

• Weight (with battery): approx. 18 kg

Mobility and terrain capability (series positioning)

AS2 capability claims commonly highlighted in official materials and recent coverage include:

• Stair/step capability: up to about 25 cm (series claim; best-case performance is often associated with higher configurations)

• Slope traversal: around 40° (series claim; configuration and terrain dependent)

• Speed: coverage frequently cites up to ~5 m/s for the top configuration, while Air is typically described as slower than Pro/Edu.

Note on interpretation: Unitree and media sources emphasize that peak speeds and terrain feats can depend on configuration, load, surface conditions, and brief-duration performance limits.

Payload: standing vs continuous walking

Recent technical reporting around AS2 often distinguishes:

• Standing (static) load potentially much higher (often cited up to 65 kg for the Edu configuration), versus

• Continuous walking payload commonly cited around 15 kg for practical transport.

For AS2 Air specifically, expectations are generally closer to the continuous-walking “utility payload” class than the high static-load maximums quoted for the top-tier configuration.

Battery and endurance (Air vs Pro/Edu)

Unitree’s AS2 page shows configuration-dependent battery options; third-party coverage notes:

• AS2 Air uses a smaller 8,000 mAh battery, while

• Pro/Edu use larger long-range packs (often cited around 15,000 mAh in reporting).

Because of that, AS2 Air typically has shorter endurance than Pro/Edu in unloaded walking time and range.

Environmental protection

AS2 is widely described as IP54 rain/dust resistant (especially for Pro/Edu), with an operating temperature range commonly cited around -20°C to 50°C for the series in coverage.
Whether AS2 Air matches the same protection level can depend on the exact Air configuration and regional package; buyers typically confirm this in the official configuration sheet or quote.

Applications and Use Cases

Industrial inspection and patrol

AS2 Air is intended for routine inspection routes and patrol tasks in environments where wheeled robots may be blocked by stairs, thresholds, debris, or uneven ground. Recent launch coverage frames AS2 as a more capable platform for industrial and outdoor applications than earlier consumer-oriented models.

Campus and field-team support

With a practical walking payload class (commonly cited around 15 kg for the series) and dynamic locomotion, AS2 Air can function as a mobile carrier for tools or equipment over mixed terrain—particularly where a compact robot is preferred over a larger inspection quadruped.

Robotics R&D and prototyping

While Unitree emphasizes open secondary development most strongly for the Edu configuration, AS2 Air still occupies a role as a lower-cost entry point into the AS2 mechanical platform for labs that prioritize base locomotion capability over maximum sensing and onboard compute expansion.

Advantages / Benefits

Industrial capability in a compact footprint

AS2 Air shares the AS2 platform’s small physical dimensions and legged mobility, which can be attractive for facilities that need a robot to operate in tight corridors while still handling stairs and steep grades better than wheeled platforms.

Lower barrier to adoption than higher-end configurations

Because AS2 Air is positioned as the entry configuration, it’s often evaluated as a way to pilot quadruped workflows (inspection loops, patrol routes, tool-carrying) before upgrading to Pro/Edu for higher endurance, weather resistance, and developer features.

Broad ecosystem visibility and support

The AS2 launch received broad coverage across technology outlets, which can improve ecosystem support (integrators, third-party accessories, community knowledge) over time compared with niche one-off industrial quadrupeds.

at that time.

FAQ

Unitree AS2 Air is the entry configuration of the Unitree AS2 industrial quadruped robot dog, designed for compact, agile mobility and industrial field tasks.

How does Unitree AS2 Air work?

AS2 Air uses a 12-DOF quadruped leg system and a sensor package that commonly includes Unitree’s L2 ultra-wide-angle LiDAR and an HD camera (configuration dependent) to support navigation and obstacle-aware locomotion.

Why is Unitree AS2 Air important?

It provides a lower-cost entry point into an industrial-capable quadruped platform, allowing organizations to pilot inspection and patrol workflows where wheeled robots struggle with terrain and stairs.

What are the benefits of Unitree AS2 Air?

Common benefits include compact dimensions, legged mobility for mixed terrain, and the ability to carry light-to-moderate payloads for patrol and inspection tasks, with the option to upgrade to Pro/Edu variants for stronger endurance and features.

Summary

The Unitree AS2 Air is the entry-level variant of Unitree’s AS2 industrial quadruped robot dog line, combining a compact footprint with legged mobility aimed at inspection, patrol, and field-support routes. Official information shows AS2 Air is sold on a quote basis (“Contact Sales”), while recent launch coverage highlights the AS2 family’s broader performance envelope—fast locomotion, meaningful payload capability (especially in higher configurations), and rugged outdoor-ready positioning. For organizations evaluating a robot dog for industrial mobility in tight spaces, AS2 Air is typically positioned as the starting point, with Pro/Edu offering expanded sensing, endurance, and developer tooling.
