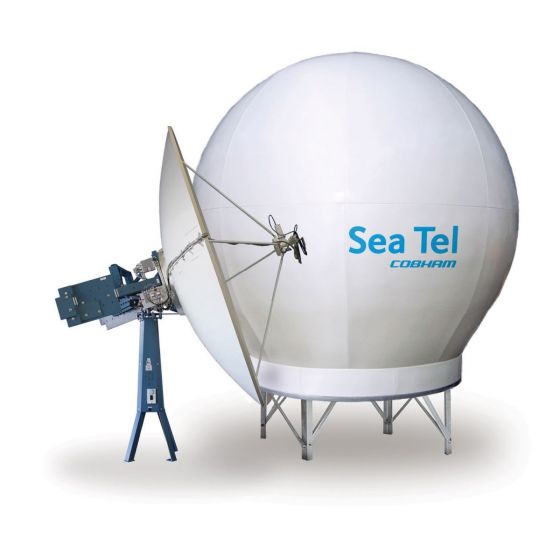

COBHAM Sea Tel 370 TV, C-Ku, 168 In Radome (40-360900-00102A)

Skladem

ZNAČKA:
COBHAM
MODEL:
370 TV
ČÁST #:
40-360900-00102A
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
COBHAM-40-360900-00102A
164 270,84 €
Bez DPH: 164 270,84 €
145 497,03 €
Bez DPH: 145 497,03 €

Buy now, pay later

Načítání...

COBHAM Sea Tel 370 TV, C-Ku, 168 In Radome (40-360900-00102A)

Sea Tel 370 TV, C/Ku, 168 in Radome (40-360900-00102A)

The Sea Tel 370 TV is Cobham SATCOM’s latest top-of-the-line, 3.6m (144”) TV-at-Sea™ system. The reflector, radome design, and RF components are based on our well proven Sea Tel ST144 system, while the stabilization platform has been updated to integrate our IMA Platform. It is the preferred system for users who need the largest possible offshore operating area and compatibility with all known and planned satellites.

The Sea Tel 370 TV has undergone major tracking, reliability, stability and industry leading improvements and is the antenna of choice for large vessels operating in deep oceans.
Proven technology, simpler The Sea Tel 370 has reliable and proven IMA electronics have a host of improvements for improved productivity. These include: LED indicators for troubleshooting, USB port for Bluetooth adaptor and digital control interface between the motor driver and integrated ICU for improved tracking and system communications. The level cage used in the predecessor systems has also been replaced by high accuracy accelerometers.
This allows for continuous calculation of position, orientation and velocity vector of a moving object without the need for external references.
The micro-electromechanical (MEM) sensors used in Sea Tel’s antennas are based on the same technology currently being used in missile and aerospace technology around the world.

Included in the system :

  • LITE MEDIA EXCHANGE POINT (LMXP) w DISPLAY
  • BELOW DECKS ACCESSORY BOX

Included Above Decks Equipment:

  • 3.7 M REFLECTOR
  • 370 TV GENERAL ASSEMBLY
  • 168" TUNED RADOME ASSEMBLY W/ DECAL KIT
  • LNB PN: 80-207545-000, LNB, C-Band, PLL, NORSAT 5150RF (Qty 2)
  • LNB PN: 88-207953-050, LNB, DUAL F, SMW LO 9.75/10.6 GHz, 50dB GAIN,10MHz (Qty 2)

* RF Cable Package not included

Specifikace

MODEL 370 TV
ČÁST # 40-360900-00102A
TYP PRODUKTU SATELITNÍ TELEVIZE
ZNAČKA COBHAM
POUŽIJTE TYP NÁMOŘNÍ

Co je zahrnuto

COBHAM Sea Tel 370 TV, C-Ku, 168 In Radome (40-360900-00102A)
