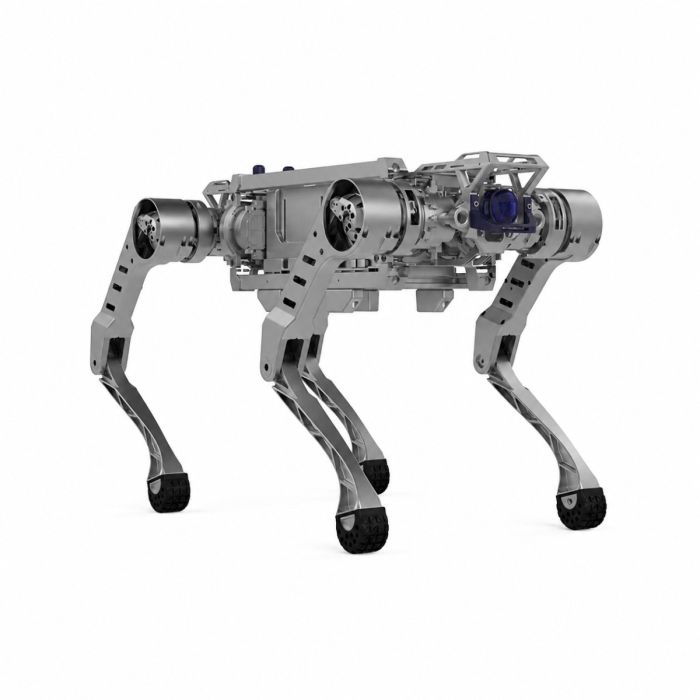

MirrorMe Black Panther X Open Industrial-Grade Quadruped Robot

MirrorMe BPX Quadruped Robot offers a listed 8 kg effective payload, speeds up to 4 m/s, and 1.5 hours of battery life. Request a quotation for configuration, availability, and delivery details.

Skladem

ZNAČKA:
MIRRORME
MODEL:
BLACK PANTHER X
ORIGIN:
Čína
Warranty:
12 MĚSÍCŮ
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
MirrorMe-Black-Panther-X
140 709,71 €
Bez DPH: 140 709,71 €

Buy now, pay later

Načítání...

MirrorMe Black Panther X Open Industrial-Grade Quadruped Robot

MirrorMe BPX Quadruped Robot

MirrorMe BPX Quadruped Robot offers a listed 8 kg effective payload, speeds up to 4 m/s, and 1.5 hours of battery life. Request a quotation for configuration, availability, and delivery details.

Technical specifications

  • Standing dimensions (L x W x H): 724 x 374 x 369 mm
  • Net weight including battery: 15.1 kg
  • Nominal voltage: 29.6 V
  • Battery energy: 167 Wh
  • Battery life: 1.5 hours
  • Maximum effective payload: 8 kg
  • Maximum joint torque: Approximately 33 Nm
  • Speed: 0–4 m/s
  • Maximum climbing height: 20 cm
  • Maximum climbing angle: 30 degrees
  • Number of joints: 12
  • Materials: Aluminium alloy
  • Charging time: 2.5 hours

Specifications reflect the manufacturer quotation dated 8 October 2026. Performance depends on operating conditions and configuration; the quotation does not specify test conditions for runtime or maximum performance.

Pricing and availability

This product is offered on a quote-only basis. Contact us to confirm the required configuration, current availability, shipping arrangements, and a project-specific quotation.

Frequently asked questions

What is this model? MirrorMe BPX Quadruped Robot.

Is a public retail price available? Pricing is supplied on request.

How can I order? Submit a quotation request with your quantity and destination.

Is delivery time guaranteed? Availability and delivery timing must be confirmed in the quotation.

Are accessories included? Confirm the supplied configuration and accessories before purchase.

Specifikace

Degrees of Freedom
metry za sekundu
Max Speed
kg (17.6 lbs)
Payload
Runtime

General

ZNAČKA MIRRORME
MODEL BLACK PANTHER X
TYP ROBOTA ČTYŘNOŽEC
POUŽITÍ ROBOTA VZDĚLÁVACÍ, VÝZKUM

Physical

VÝŠKA 36.9 cm
DÉLKA 72.4 cm
ŠÍŘKA 37.4 cm
HLOUBKA 37.4 cm
HMOTNOST 15.1 kg

Mobility

CELKOVÁ DOF 12 DOF

Performance

MAXIMÁLNÍ RYCHLOST 4 METRY ZA SEKUNDU
PROVOZNÍ RYCHLOST 4 METRY ZA SEKUNDU
AKTIVNÍ KLOUBY 12
ŠPIČKOVÝ TOČIVÝ MOMENT 33 NM
MAXIMÁLNÍ UŽITEČNÉ ZATÍŽENÍ 8 KG (17.6 LBS)
ÚHEL SKLONU 30 STUPŇŮ
VÝŠKA STOUPÁNÍ PO SCHODECH 20 CM

Software

SEKUNDÁRNÍ VÝVOJ PODPOROVÁNO

Battery + Power

DOBA BĚHU PŘIBL. 1,5 HODINY

Hand

NAPĚTÍ 26~33.6 V
