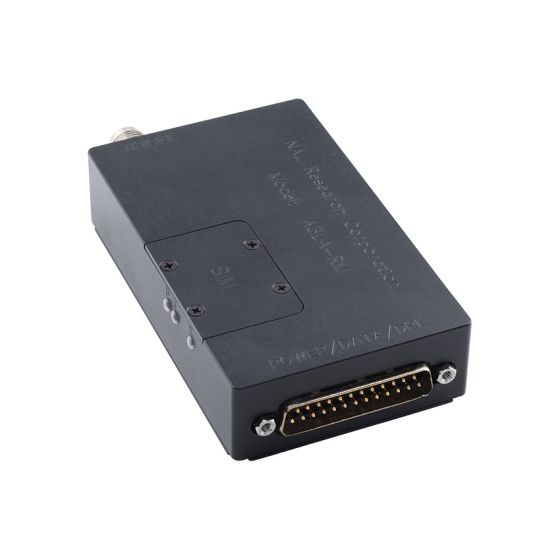

BSN-NAL A3LA-RM Iridium Modem W- Encryption (A3LA-RM)
1 685,42 € 1 685,42 €
PART #:
A3LA-RM
État du stock:
En stock
AVAILABILITY:
SUBJECT TO AVAILABILITY
Product Code:
BSN-NAL-A3LA-RM
A3LA-RM Iridium Modem w/ Encryption (A3LA-RM)
Description
The A3LA-RM Modem is comprised of an Iridium® 9523 transceiver. It enables SBD, SMS, Data Switch and RUDICS connectivity to the Iridium satellite network. Used with a connected DPL handset, the A3LA-RM Modem can support voice communications. The A3LA-RM Modem can support AES-256 bit data encryption and can monitor network status to prevent device lock-up.
Key Features:
- Low-cost
- Small form-factor
- Capable of SBD, SMS, Data Switch, RUDICS and voice communication
- AES-256 bit encryption
- Lock-up monitoring
- RS-232 interface
- Functionally the same as the Iridium 9522B Modem
- Approx. 60% less volume than the Iridium 9522B Modem
- Approx. 50% lighter than the Iridium 9522B Modem
Variant:
- A3LA-RM-MIL Modem is certified to MIL-STD-810G standards and is IP67 rated
Compatible Airtime Services:
Dial-Up, RUDICS, SBD, SMS, Voice
Description
The A3LA-RM Modem is comprised of an Iridium® 9523 transceiver. It enables SBD, SMS, Data Switch and RUDICS connectivity to the Iridium satellite network. Used with a connected DPL handset, the A3LA-RM Modem can support voice communications. The A3LA-RM Modem can support AES-256 bit data encryption and can monitor network status to prevent device lock-up.
Key Features:
- Low-cost
- Small form-factor
- Capable of SBD, SMS, Data Switch, RUDICS and voice communication
- AES-256 bit encryption
- Lock-up monitoring
- RS-232 interface
- Functionally the same as the Iridium 9522B Modem
- Approx. 60% less volume than the Iridium 9522B Modem
- Approx. 50% lighter than the Iridium 9522B Modem
Variant:
- A3LA-RM-MIL Modem is certified to MIL-STD-810G standards and is IP67 rated
Compatible Airtime Services:
Dial-Up, RUDICS, SBD, SMS, Voice
Description
The A3LA-RM Modem is comprised of an Iridium® 9523 transceiver. It enables SBD, SMS, Data Switch and RUDICS connectivity to the Iridium satellite network. Used with a connected DPL handset, the A3LA-RM Modem can support voice communications. The A3LA-RM Modem can support AES-256 bit data encryption and can monitor network status to prevent device lock-up.
Key Features:
- Low-cost
- Small form-factor
- Capable of SBD, SMS, Data Switch, RUDICS and voice communication
- AES-256 bit encryption
- Lock-up monitoring
- RS-232 interface
- Functionally the same as the Iridium 9522B Modem
- Approx. 60% less volume than the Iridium 9522B Modem
- Approx. 50% lighter than the Iridium 9522B Modem
Variant:
- A3LA-RM-MIL Modem is certified to MIL-STD-810G standards and is IP67 rated
Compatible Airtime Services:
Dial-Up, RUDICS, SBD, SMS, Voice
Specifications
| Dimensions | 102 mm x 61 mm x 24 mm (4.0″ x 2.43″ x 0.95″) |
| Weight | 198 g (7.0 oz) |
| Input Voltage: | 4.0V to 5.4V or 5.0V to 32.0V |
| Avg. Current: | 400mA @ 5V Input |
| I/O Interface: | 25-Pin D-Sub, SIM Reader |
| Status Display: | Three LEDs |
| Antenna Interface: | TNC Female |
| Software Interface: | AT Commands through Serial |
| Operating Temp: | –30°C to +70°C (–22°F to +158°F) |
| Operating Humidity: | < 75% RH |
| Operating Frequency: | 1616.0 to 1626.5 MHz |
| Link Margin: |
12 dB |
| PIÈCE NO. | A3LA-RM |
|---|
