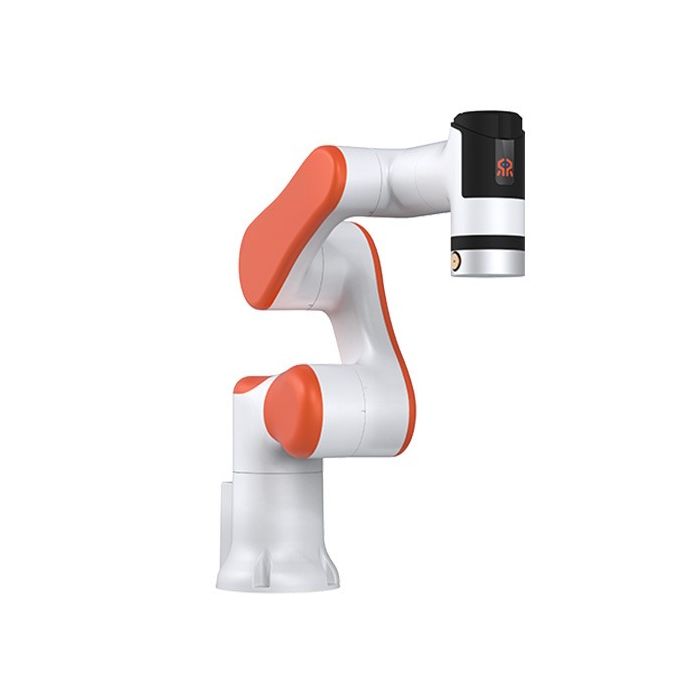

Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO62-B)

ECO62-B 6-DOF Ultra-lightweight Humanoid Robotic Arm (ECO62-B)

RealMan describes itself as a robotics company focused on ultra-lightweight humanoid robotic arms, with in-house development of key motion-control components (controllers, drivers, servo motors, and harmonic reducers).

Design and Features

Compact, desktop-oriented form factor

The ECO62-B is described by RealMan as compact in size while targeting fast operation in confined spaces. Its published dimensions include an overall height of 505 mm and a working radius of 355 mm, which aligns with “desktop” or benchtop manipulation and close-range workstation tasks.

Ultra-lightweight structure and integrated controller

A defining design characteristic is its low mass: RealMan specifies a body weight of 3.3 kg and an integrated controller (controller built into the system rather than a separate external cabinet).
This architecture can reduce installation complexity and footprint for labs, kiosks, small fixtures, and mobile carts where weight and cable routing matter.

Environmental and materials profile

RealMan lists the ECO62-B’s materials as aluminum alloy + ABS and specifies an IP54 protection level for the robotic arm body, which typically indicates basic protection against dust ingress and splashing water (not washdown).

Multi-mode teaching and control

RealMan specifies multiple ways to operate the ECO62-B, including drag-and-drop teaching, a teaching pendant, and programmatic interfaces via API/JSON, supporting both quick manual setup and software-driven integration.
RealMan’s developer documentation describes a JSON command interface used for configuration tasks such as tool-frame calibration and payload parameters.

Technology and Specifications

Core specifications (manufacturer-published)

RealMan’s official ECO62-B specification table lists the following key parameters:

Power and interface notes (developer documentation context)

RealMan’s developer documentation emphasizes that configuration and calibration workflows—such as tool-frame setup and payload settings—are performed through structured commands, and notes that payload and center-of-mass parameters can influence behaviors such as collision detection and the feel of drag teaching.
In practical deployments, these settings are typically validated alongside the end-effector (gripper, suction tool, probe, etc.) and the target task to ensure stable motion and predictable contact behavior.

Applications and Use Cases

RealMan states that the ECO62 platform supports applications and customization across industrial, medical, commercial services, and education scenarios.
Given its 1 kg rated / 2 kg max payload and 355 mm reach, the ECO62-B is commonly suited to light manipulation and demonstration-scale automation, including:

• Benchtop pick-and-place and sorting: moving small parts between trays, fixtures, and inspection positions within a compact workspace.

• Laboratory automation assistance: handling sample containers or tools where low payload and consistent repeatability are priorities, often paired with custom grippers and safety constraints appropriate to the lab environment.

• Education and robotics R&D: teaching kinematics and programming concepts, prototyping manipulation behaviors, and integrating with software stacks via API/JSON control.

• Commercial-service demos and kiosks: short-reach, scripted interactions (e.g., simple dispensing, handoff motions, or guided demonstrations) where the integrated controller and low DC power draw can simplify installation.

Advantages / Benefits

Ultra-lightweight deployment for tight spaces

At 3.3 kg with an integrated controller and a 355 mm working radius, the ECO62-B targets installations where minimizing footprint and mounting mass is a primary constraint—such as benchtops, compact fixtures, or mobile platforms with strict payload budgets.

High-precision repeatability for small-part tasks

RealMan’s published ±0.05 mm repeatability supports consistent positioning for delicate handling, basic assembly aids, and lab-style manipulation (within the payload limits and with appropriate tooling).

Flexible connectivity and programming interfaces

Support for Wi-Fi, Ethernet/network, Bluetooth, USB serial, and RS485, alongside teaching pendant, drag teaching, and API/JSON control, provides multiple integration paths—from simple teaching workflows to software-defined automation.

DC power profile for modular systems

RealMan lists DC 20–30 V (nominal 24 V) input and up to 200 W peak power, which can be advantageous in modular automation stacks that standardize on DC supplies.

FAQ Section

What is the RealMan Robotics ECO62-B?

The ECO62-B is a 6-DOF ultra-lightweight humanoid robotic arm with an integrated controller, specified at 1 kg rated payload (2 kg max), 355 mm working radius, 3.3 kg body weight, and ±0.05 mm repeatability.

How does the ECO62-B work?

The ECO62-B coordinates six joints via its integrated controller and can be operated through drag-and-drop teaching, a teaching pendant, or programmatically using API/JSON interfaces. RealMan’s developer documentation describes JSON-based configuration workflows such as tool-frame and payload parameter setup.

Why is the ECO62-B important?

Its main significance is enabling compact, low-power, high-repeatability automation in tight spaces—useful for benchtop workflows, education, and light industrial or lab-style handling where a small reach and low payload are sufficient.

What are the benefits of the ECO62-B?

Key benefits include ultra-lightweight deployment (3.3 kg), ±0.05 mm repeatability, integrated controller, IP54-rated arm body, DC 24 V nominal power, and flexible operation via drag teaching, teach pendant, and API/JSON, plus multiple communication options (Wi-Fi/Ethernet/Bluetooth/USB serial/RS485).

Summary

The RealMan Robotics ECO62-B is a compact 6-DOF ultra-lightweight humanoid robotic arm built for close-range manipulation and space-constrained installations. With 1 kg rated / 2 kg max payload, 355 mm reach, 3.3 kg body weight, ±0.05 mm repeatability, and an integrated controller supporting both teach modes and API/JSON control, it is positioned as a practical option for benchtop automation, education, and light-duty industrial or lab applications requiring reliable precision in a small footprint.
