Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO65-B)

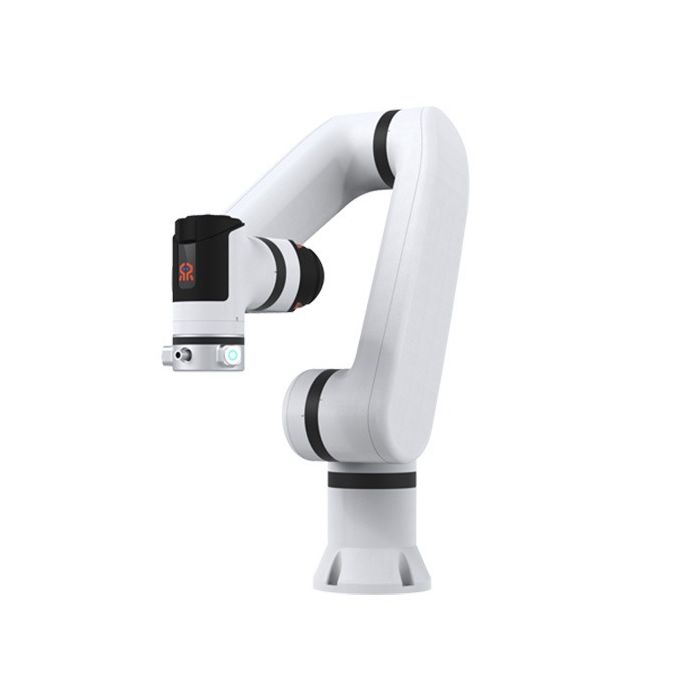

ECO65-B 6-DOF Ultra-lightweight Humanoid Robotic Arm (ECO65-B)

RealMan (RealMan Robotics / RealMan Intelligent Technology) markets its broader portfolio as “ultra-lightweight humanoid robotic arms” and states it develops key motion-control components in-house (controllers, drivers, servo motors, harmonic reducers), a design approach intended to optimize integration and performance across its product families.

Design and Features

Integrated controller and compact deployment

A central design feature of the ECO65-B is its integrated controller, combining the control unit and arm into a single system rather than relying on a separate cabinet. RealMan and third-party listings describe the system weight at approximately 7.8 kg (arm + integrated controller), which can simplify mounting on benches, carts, mobile bases, or compact workcells—subject to application-specific mechanical design and safety assessment.

“Drag teaching” and multi-mode control

RealMan highlights drag-and-drop (hand-guided) teaching as a core interaction method for creating or reproducing motion trajectories, alongside operation via a teaching pendant and software interfaces such as API/JSON.
This multi-mode approach is commonly used to reduce development time in tasks like pick-and-place, basic assembly, and lab automation—especially where rapid iteration matters more than complex custom motion planning.

Safety-oriented behaviors (feature-level)

RealMan’s product materials describe configurable protection behaviors where the arm can stop when collision torque reaches a defined limit, aiming to reduce risk of injury or equipment damage in contact scenarios. This is a feature description (not a statement of third-party collaborative certification), and real-world safety depends on system integration, tooling, speeds, payloads, and a formal risk assessment.

Power efficiency and DC operation

The ECO65-B is specified for DC 20–30 V (nominal DC 24 V) input. RealMan states a maximum power consumption of 200 W with ~100 W comprehensive power consumption, and emphasizes suitability for scenarios where DC power supplies or mobile power packs are preferred.

Technology and Specifications

Core specifications (manufacturer-published)

RealMan’s official ECO65-B specification sheet includes the following highlights:

• Degrees of freedom: 6

• Rated payload: 5 kg

• Body/system weight: 7.8 kg

• Repeatability: ±0.05 mm

• Working radius (reach): 610 mm

• Power: DC 20–30 V (nominal DC 24 V)

• Power consumption: max 200 W; comprehensive ~100 W

• Protection: IP54 (robotic arm body)

• Materials: aluminum alloy + ABS

• Controller: integrated

• Communication modes: Wi-Fi / network interface / Bluetooth / USB serial / RS485

• Control modes: drag-and-drop teaching / teaching pendant / API / JSON

Workspace and integration considerations

RealMan’s developer documentation describes the ECO65-B workspace primarily as a sphere with a 610 mm working radius, plus cylindrical spaces above and below the base that should be considered in installation planning to avoid toolpaths that unnecessarily enter those regions.
In practice, this matters for workstation layout, guarding, cable management, and ensuring the end effector has clearance across the full operating envelope.

Third-party catalog summaries

Robot libraries and industrial directories commonly summarize the ECO65-B as a 6-axis arm with 5 kg payload, ~610 mm reach, and ~0.05 mm repeatability, broadly aligning with manufacturer-published values.

Applications and Use Cases

The ECO65-B is commonly positioned for compact automation scenarios where a 5 kg payload class and moderate reach are sufficient. Listings and manufacturer materials point to applications across electronics/“3C”, warehousing/logistics, research/education, and general industrial tasks.

Typical use cases include:

• Material handling and kitting: moving parts between trays, bins, fixtures, or conveyors within a 610 mm reach envelope.

• Light assembly and screwdriving assistance: repetitive positioning tasks where consistent repeatability supports fixture-based workflows.

• Dispensing and process tasks: applying adhesives, sealants, or coatings in controlled paths (subject to process validation).

• Education and robotics R&D: using API/JSON control and multi-protocol connectivity to prototype manipulation behaviors, evaluate end-effectors, or build proof-of-concept automation.

Advantages / Benefits

High capability in a compact form factor

At 7.8 kg system weight (including the integrated controller) and 5 kg rated payload, the ECO65-B targets a favorable payload-to-mass profile for benchtop and space-limited installations.

Integrated controller reduces setup complexity

By eliminating a traditional external control cabinet, the ECO65-B can reduce wiring runs and floor footprint, which is often valuable in labs, pilot lines, and modular workcells.

Flexible control and connectivity for integrators

Support for Wi-Fi/Ethernet, serial interfaces (USB serial/RS485), and software control paths (teaching pendant, drag teaching, API/JSON) makes the arm adaptable to different integration stacks—industrial PCs, embedded controllers, and robotics middleware environments.

FAQ Section

What is the RealMan Robotics ECO65-B?

The ECO65-B is a 6-DOF ultra-lightweight humanoid robotic arm with an integrated controller, rated for a 5 kg payload, 610 mm reach, and ±0.05 mm repeatability, designed for compact automation and research environments.

How does the ECO65-B work?

The ECO65-B coordinates six motor-driven joints via an integrated controller, and can be operated using drag-and-drop teaching, a teaching pendant, or software control through API/JSON, depending on the integration approach.

Why is the ECO65-B important?

Its combination of compact size, DC 24 V operation, and multiple control options helps teams prototype or deploy automation in space-limited workcells, lab benches, or modular production setups where a 5 kg payload class is sufficient.

What are the benefits of the ECO65-B?

Key benefits include an integrated controller, IP54-rated arm body, low-power DC operation, and flexible operation via drag teaching, teaching pendant, and API/JSON, plus connectivity options such as Wi-Fi, Ethernet, Bluetooth, USB serial, and RS485.

Summary

The RealMan Robotics ECO65-B is a compact, 6-DOF ultra-lightweight robotic arm built around an integrated controller, delivering a 5 kg rated payload, 610 mm working radius, and ±0.05 mm repeatability in a DC-powered, connectivity-rich package. Positioned as the ECO65 family’s standard/economic configuration, it is widely suited to benchtop automation, light industrial tasks, and robotics R&D where space efficiency and integration simplicity are priorities.
