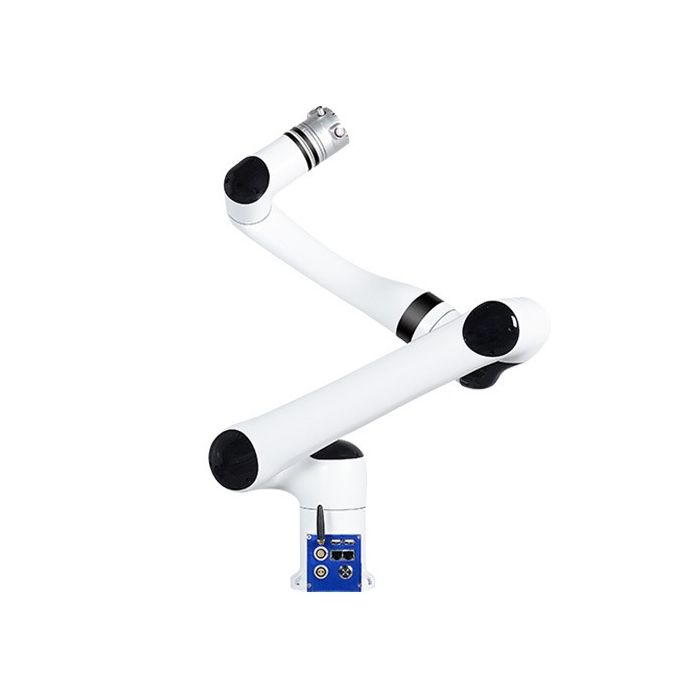

Realman Robotics RML63-6F Long Arm Span Robotic Arm 6-Axis-Force Version (RML63-6F)

RML63-6F Long Arm Span Robotic Arm 6-Axis-Force Version (RML63-6F)

Positioned within Realman’s RML Series (“Ultra-lightweight Lengthening Robotic Arm”), the RML63-6F is commonly described as a “long arm span” configuration that targets broader work envelopes—such as larger benches, shelves, fixtures, or multi-step process cells—without requiring a heavier industrial-class manipulator.

A defining attribute of the RML63-6F variant is its integrated six-axis force/torque sensing capability, intended to support compliant interaction (e.g., contact-rich tasks, force-guided alignment, or assisted teaching workflows) compared with base versions of the same long-reach platform.

Design and Features

Ultra-lightweight long-reach form factor

Within the RML Series, the RML63 platform is presented as a lightweight arm with an extended working radius for coverage across larger workspaces. Realman lists the RML63-6F at ~10.1 kg body weight and a working radius of 928.5 mm, positioning it as a long-reach alternative to shorter-range ultra-lightweight arms.

Integrated controller and modular joint structure

Realman describes the controller as integrated (rather than a separate cabinet), a design approach that can simplify deployment in mobile bases, compact workcells, research benches, and service-robot enclosures. The company also emphasizes modular joint design, which typically supports maintenance access and scalable integration across varied automation layouts.

Multiple control and communication options

The RML63-6F is presented with several communication modes, including Wi-Fi, network port (Ethernet), Bluetooth, USB serial, and RS485, reflecting typical needs in robotics integration (factory networks, lab setups, mobile platforms, and embedded controllers).
Realman also lists multiple control modes, including drag teaching, teaching pendant, and programmatic control via API/JSON, supporting both rapid setup and software-driven automation.

Technology and Specifications

Core motion platform (6-DoF)

Realman specifies the RML63-6F as a 6-DoF arm with a rated payload of 3 kg, while also listing a maximum load capacity of 5 kg for the broader RML63 platform description.
Repeatability is listed as ±0.05 mm, a figure commonly used to characterize positioning consistency for light assembly, pick-and-place, lab automation, and inspection workflows.

Working radius and reach-oriented performance

The RML63-6F is listed with a 928.5 mm working radius (with the RML63-B listed at 900 mm), underscoring the model’s “lengthening” focus in the RML Series lineup.

Six-axis force/torque sensing (RML63-6F)

For the RML63-6F, Realman lists:

• Six-axis force range: 200 N / 7 Nm

• Six-axis force accuracy: < 0.1% FS

In practical terms, a 6-axis F/T sensor can enable force-controlled insertion, surface following, gentle handling, and safe contact behaviors, especially when combined with suitable compliance control algorithms.

Power and protection

Realman lists DC 24V supply, with maximum power consumption 200 W and comprehensive power consumption 100 W.
The robotic arm body is listed at IP54 protection level, and the material is listed as aluminum alloy, which aligns with lightweight structural priorities.

Joint motion ranges and speeds

Realman provides joint travel and speed characteristics, including:

• Joint motion range: J1 ±178°, J2 ±178°, J3 +145° to −178°, J4 ±178°, J5 ±178°, J6 ±360°

• Joint maximum speed: J1–J2 180°/s; J3–J6 225°/s

Applications and Use Cases

Because the RML63-6F combines long reach, lightweight integration, and six-axis force sensing, it is typically positioned for tasks that benefit from both workspace coverage and controlled contact.

Logistics, shelving, and light industrial handling

A long working radius can reduce the need to reposition fixtures or add linear rails for modest coverage increases. In warehousing and “shelf arrangement” style tasks, the arm’s reach can help access multiple bins or shelf zones from a single base position.

Lab and medical workflows

Realman highlights example scenarios such as medical sample management, which often demand repeatable motion, gentle handling, and reliable integration into compact lab environments. In these settings, force sensing can support safer interaction with racks, lids, or delicate containers.

Contact-rich service tasks

Use cases such as massage-style service demonstrations are often used to illustrate compliant control and safe contact interaction. While real-world deployments vary by jurisdiction and safety validation, the presence of a six-axis F/T capability is commonly associated with this category of contact-aware automation.

Research, education, and prototyping

The combination of API/JSON control, multiple communication interfaces, and an integrated controller is frequently attractive for R&D teams building embodied AI prototypes, mobile manipulation platforms, or multi-sensor lab rigs.

Advantages / Benefits

Extended workspace without a heavy arm

A near-1-meter working radius can broaden reachable area for benches, shelves, and fixtures, improving cell coverage while maintaining a relatively low body mass (~10 kg class).

Force sensing for compliant automation

The RML63-6F’s specified six-axis force range and accuracy are intended to support tasks requiring measured contact, including alignment, insertion, polishing-like surface following, and safer human interaction.

Simplified integration and control flexibility

Integrated control hardware plus multiple communication options (Wi-Fi/Ethernet/USB/RS485) can reduce integration overhead across industrial PCs, embedded controllers, and mobile platforms.

Low power profile for mobile or distributed deployments

A DC 24V supply and stated 100–200 W consumption range can be advantageous for battery-backed systems, portable workcells, and energy-conscious deployments.

FAQ Section

What is the Realman Robotics RML63-6F?

The RML63-6F is a 6-DoF ultra-lightweight long arm span robotic arm in Realman’s RML Series, featuring an extended working radius (928.5 mm) and an integrated six-axis force/torque capability for contact-aware tasks.

How does the RML63-6F work?

The RML63-6F uses a multi-joint (6-axis) motion structure for positioning and orientation control, and it supports multiple control approaches such as drag teaching, teaching pendant operation, and programmatic control via API/JSON. It can communicate over Wi-Fi/Ethernet/Bluetooth/USB serial/RS485, depending on the integration design.

Why is the RML63-6F important?

The RML63-6F is notable for combining long reach with six-axis force sensing, which can enable safer contact interaction, better alignment in insertion tasks, and more flexible automation in larger work envelopes—without moving to a heavier industrial manipulator class.

What are the benefits of the RML63-6F?

Key benefits include 928.5 mm working radius, ±0.05 mm repeatability, 3 kg rated payload, six-axis force capability (200 N / 7 Nm), flexible communications, and DC 24V operation with stated 100–200 W consumption characteristics.

Summary

The Realman Robotics RML63-6F is a long-reach, ultra-lightweight 6-DoF robotic arm designed for broader workspace coverage and force-aware manipulation. With a 928.5 mm working radius, ±0.05 mm repeatability, 3 kg rated payload, and a specified six-axis force range of 200 N / 7 Nm, it is positioned for applications spanning lab automation, logistics-style handling, contact-guided tasks, and research platforms that require both reach and compliant interaction.
