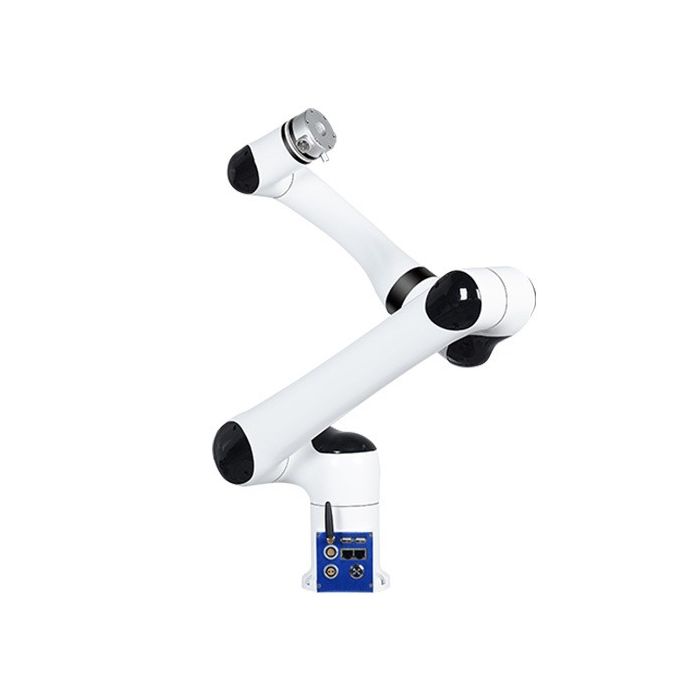

Realman Robotics RML63-B Long Arm Span Robotic Arm Basic Version (RML63-B)

RML63-B Long Arm Span Robotic Arm Basic Version (RML63-B)

With a rated payload of 3 kg, a working radius of 900 mm, and a quoted repeatability of ±0.05 mm, the RML63-B is typically described for scenarios where reach, portability, and software integration are prioritized over high payload capacity—such as laboratory handling, light assembly, service robotics prototypes, pilot production lines, and research platforms.

Design and Features

Mechanical design and materials

The RML63-B is built with an aluminum-alloy structure and a modular joint design, intended to provide a wide motion envelope while remaining relatively light for its reach class. The arm’s body weight is listed as 10 kg, supporting deployments on mobile bases, benches, carts, or compact pedestals when properly engineered for stability and safety.

Integrated controller and connectivity

A distinguishing feature of the RML63-B is its controller integration at the bottom of the robotic arm.  In addition to simplifying the physical layout, the platform is described with multiple communications options, including Wi-Fi, Ethernet (network port), Bluetooth, USB serial, and RS485, supporting a range of integration styles—from direct machine control to higher-level orchestration via PCs or edge gateways.

Teaching and control modes

Realman describes several operator and developer control paths, including drag (hand-guiding) teaching, a teaching pendant workflow, and programmatic control via API/JSON interfaces.  This multi-mode approach is commonly used to bridge fast setup (hand-guiding and pendant) with repeatable production logic (API-driven sequences).

Technology and Specifications

Core specifications (manufacturer-published)

Realman’s published specifications for the RML63-B include: 6 DOF, 3 kg payload, 10 kg body weight, 900 mm working radius, and ±0.05 mm repeatability. The arm is specified for DC 24 V supply and lists ≤200 W maximum power consumption with ~100 W comprehensive/typical power consumption.

The robotic arm body is listed at IP54 protection level, indicating limited dust ingress protection and resistance to splashing water (context-dependent; system-level sealing and connectors still matter in real deployments).

Joint ranges and motion limits

The published joint motion ranges include J1 ±178°, J2 ±178°, J3 +145° to −178°, J4 ±178°, J5 ±178°, and J6 ±360°. Maximum joint speeds are listed as J1–J2: 180°/s and J3–J6: 225°/s.

Realman’s developer documentation also notes a TCP speed limit ≤2.8 m/s for the RML63 series, providing a useful reference for cycle-time modeling and safe-speed planning.

Power and deployment guidance

Realman’s RML63-B FAQ notes a 20–27 V DC input range and indicates that, while rated at 200 W, initialization/self-tuning after power-on is best supported by a supply capable of ≥20 A maximum instantaneous current.  This kind of “surge headroom” guidance is important for integrators choosing power supplies, fusing, wiring gauge, and battery systems on mobile platforms.

Reliability and maintainability notes

The same FAQ states a continuous service life of 30,000 hours under rated load, and notes MTBF testing certification from the Shanghai National Robot Testing Center (as described by the manufacturer). In practice, realized lifetime depends strongly on duty cycle, motion profiles, environment, maintenance practices, and payload inertia.

Applications and Use Cases

The RML63-B is commonly positioned for light-duty automation where reach and integration flexibility matter:

• Laboratory and medical workflows: sample movement, tube handling, tray transfers, or instrument loading in controlled environments.

• Service and commercial automation prototypes: kiosks, back-of-house handling, assisted operations, and pilot deployments where compact integration and quick teaching accelerate iteration.

• Education and R&D: embodied AI experimentation, perception-manipulation research, and reinforcement-learning manipulation setups that benefit from JSON/API control surfaces.

• Light assembly and inspection: pick-and-place of small parts, fixture tending, and vision-guided tasks within a 3 kg payload envelope.

Advantages / Benefits

A few practical advantages often associated with the RML63-B’s published design approach include:

Long reach in a lightweight form factor. A 900 mm working radius at a 10 kg arm weight supports portable workcells and mobile manipulation concepts where heavier industrial arms are harder to mount.

Flexible integration options. Multiple physical interfaces (Wi-Fi/Ethernet/USB/RS485) and API/JSON control paths can reduce integration friction across industrial, research, and service-robot stacks.

Multiple teaching workflows. Drag teaching and pendant instruction can shorten setup time for repetitive sequences, while API control supports repeatability and orchestration.

Moderate power requirements. A DC 24 V supply and stated consumption targets can be advantageous for battery-backed systems and compact electrical cabinets, assuming current headroom is engineered correctly.

FAQ Section

What is the Realman Robotics RML63-B?

The RML63-B is a 6-DOF long-reach robotic arm in Realman’s RML series, specified at 3 kg payload, 900 mm working radius, and ±0.05 mm repeatability, with an integrated controller at the base.

How does the RML63-B work?

It uses six actuated joints to position an end effector through a defined workspace. Users can program motion via drag teaching, a teaching pendant, or software control using API/JSON, with communications over Wi-Fi/Ethernet/Bluetooth/USB/RS485 depending on the integration design.

Why is the RML63-B important?

In many automation pilots, the main constraint is not maximum payload but deployment speed, reach, and integration flexibility. A long-reach, lightweight arm with multiple teaching and software interfaces can reduce time from prototype to repeatable operation in labs, service environments, and R&D.

Where can I buy the RML63-B?

The RML63-B is typically sourced through manufacturer inquiries and authorized distributors, depending on region. Realman’s official product page includes distributor/contact paths for quotations and purchasing.

What power supply is recommended for the RML63-B?

Realman’s FAQ lists a 20–27 V DC input range and suggests ensuring the supply can provide ≥20 A instantaneous current to support initialization and self-tuning after power-on.

Summary

The Realman Robotics RML63-B is a 6-DOF, long-reach, ultra-lightweight robotic arm designed to balance workspace, portability, and integration flexibility. With published specs including a 3 kg payload, 900 mm working radius, ±0.05 mm repeatability, and an integrated controller, it is commonly positioned for lab automation, service robotics prototyping, and light industrial tasks where fast deployment and API-driven control matter.
