Realman Robotics Ultra-Lightweight Robotic Arm (RM65-6F)

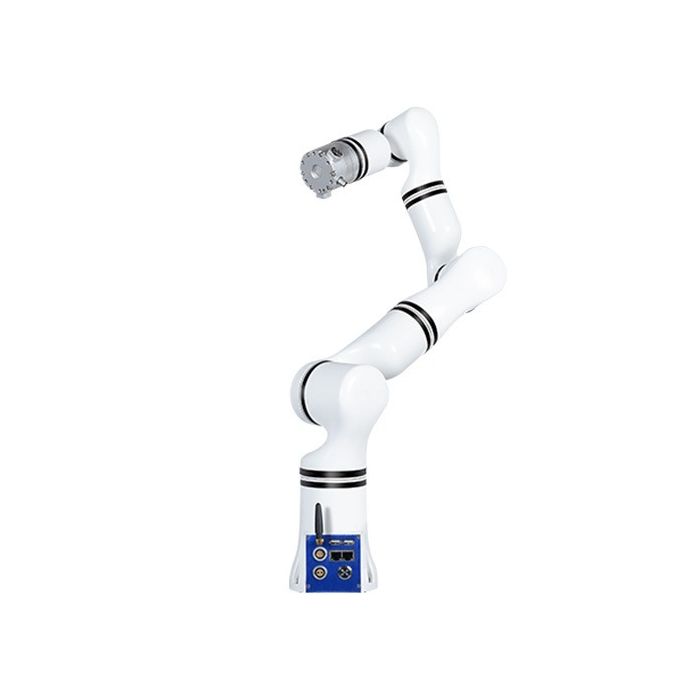

Realman Robotics RM65-6F Ultra-Lightweight Humanoid Robotic Arm (RM65-6F)

It is described as a “6-axis-force” version of RealMan’s RM65 series, indicating that the arm is intended to support applications where contact sensing, compliant motion, or interaction safety are important, such as laboratory tasks, food handling, and certain medical-adjacent demonstrations and pilot deployments.

With an emphasis on portability and integration, the RM65-6F is marketed as an ultra-lightweight robotic arm that integrates its controller, aiming to simplify deployment in mobile workcells, benchtop automation, and education or prototyping environments.

Design and Features

Compact, integrated architecture

A key characteristic of the RM65-6F is its integrated controller design, which reduces external control-box requirements and can streamline wiring and installation in constrained spaces. The arm body is described as using aluminum alloy construction, supporting a lightweight form factor while maintaining rigidity for precision tasks.

Six-axis articulated motion

The RM65-6F uses a 6-axis articulated kinematic chain (six degrees of freedom), allowing it to reach around obstacles, orient tools, and perform common industrial arm motions such as pick-and-place, insertion, and surface following.

“6-axis-force” variant for interaction tasks

RealMan positions the RM65-6F as a force-enabled variant (described as “6-axis-force version”), suited for interaction-oriented tasks such as contact-based procedures, guided teaching, and compliant end-effector control. Public listings do not always disclose full force/torque sensor ranges, but the naming and description clearly identify it as the force-capable model in the RM65 family.

Teaching and control options

The RM65-6F supports multiple control approaches, including drag-and-drop teaching, use of a teaching pendant, and programmatic control via API/JSON interfaces. This mix targets both traditional industrial usage and modern software-driven robotics development.

Technology and Specifications

Core performance (published figures)

Commonly cited published specifications for the RM65-6F include:

• Axes (DOF): 6

• Payload: 5 kg

• Reach / working radius: 638.5 mm

• Repeatability: 0.05 mm

• Robot weight: 7.3 kg

• Protection rating: IP54 (arm body)

Some listings additionally note a peak load of 9 kg for the RM65-6F.

Power and consumption

The arm is listed as using a DC 24 V power supply. Power consumption figures cited on public listings include maximum power ≤200 W and comprehensive/typical power ≤100 W (wording varies by listing).

Connectivity and I/O

Published communication and connection options include Wi-Fi, network/Ethernet, Bluetooth, USB serial, and RS485, supporting both local development setups and integration into broader automation networks.

Joint motion ranges and speed (published)

Public listings provide joint range and maximum joint speed figures, including ranges such as J1 ±178°, J2 ±130°, J3 ±135°, J4 ±178°, J5 ±128°, and J6 ±360°, and speeds including J1–J2 up to 180°/s and J3–J6 up to 225°/s.

Applications and Use Cases

Laboratory automation and sample handling

The RM65-6F is positioned for laboratory and benchtop automation, where light payloads, repeatable motion, and compact integration matter—e.g., moving containers, presenting samples to instruments, or handling small tools.

Food industry handling prototypes

Public listings associate the RM65-6F with food industry applications, where washdown requirements may vary by site, but the arm’s IP54 body rating and compact design can fit enclosed or partitioned automation cells for packaging, sorting, or light handling tasks.

Medical-adjacent demonstrations and human-interaction pilots

The RM65-6F is also marketed into medical and rehabilitation-adjacent contexts (including “massage” and similar categories on medical equipment marketplaces). In practical terms, these deployments typically emphasize interaction, smooth motion, and controlled contact behavior—areas where a force-enabled arm can be beneficial for research and controlled environments.

Research, education, and software-driven robotics

Because it supports API/JSON control and multiple communications options, the RM65-6F can be used in robotics R&D for motion planning, teleoperation, and end-effector experimentation (e.g., grippers, suction tools, cameras, or compliant tooling).

Advantages / Benefits

Lightweight deployment and mobility

At ~7.3 kg for the integrated arm/controller package, the RM65-6F is relatively portable compared with traditional industrial arms, making it easier to mount on carts, benches, and compact frames for rapid deployment and testing.

Precision for light automation

A published 0.05 mm repeatability figure supports consistent placement for tasks like sorting, small-part handling, and basic assembly experiments, especially when paired with fixtures or vision guidance.

Force-capable variant for contact tasks

As the 6-axis-force model in the RM65 family, the RM65-6F is positioned for workflows that require controlled contact, compliant motion, or interaction-aware behaviors (subject to the specific sensing and control configuration used).

Integration-friendly connectivity

Built-in support for Wi-Fi/Ethernet/Bluetooth plus serial and RS485 options can reduce integration friction across prototypes, labs, and industrial pilot cells.

FAQ Section

What is the RealMan RM65-6F?

The RealMan RM65-6F is a 6-axis articulated robotic arm in the RM65 series, described as a 6-axis-force version intended for light automation and interactive/contact-aware robotics applications.

How does the RM65-6F work?

The RM65-6F moves through six motorized joints to position and orient a tool or end-effector. It supports multiple control methods, including drag teaching, a teaching pendant, and software control via API/JSON, enabling both manual programming and application-driven automation.

Why is a “6-axis-force” robotic arm important?

Force-capable robotic arms can be better suited to contact tasks—for example, surface following, gentle handling, or guided teaching—because they are designed for interaction workflows where purely position-based motion may be insufficient or less safe.

Where can I buy the RM65-6F?

The RM65-6F is listed on industrial and medical equipment marketplaces and is commonly sold via robotics integrators and resellers, often through quotation based on region and configuration.

What are the benefits of the RM65-6F?

Commonly cited benefits include its light weight (~7.3 kg), 5 kg payload, 638.5 mm reach, 0.05 mm repeatability, integrated controller concept, and multiple connectivity/control options for integration and R&D.

Summary

The RealMan Robotics RM65-6F is a lightweight, integration-friendly 6-axis robotic arm positioned for light automation and force-aware interaction tasks. With published specs including 5 kg payload, 638.5 mm reach, 0.05 mm repeatability, IP54 body rating, and multiple teaching/control options (including API/JSON), it is commonly presented as a compact platform for labs, pilot production cells, and R&D teams seeking an ultra-light articulated arm with a “6-axis-force” variant profile.
