Realman Robotics Robotic Arm (RX75-6FB-V)

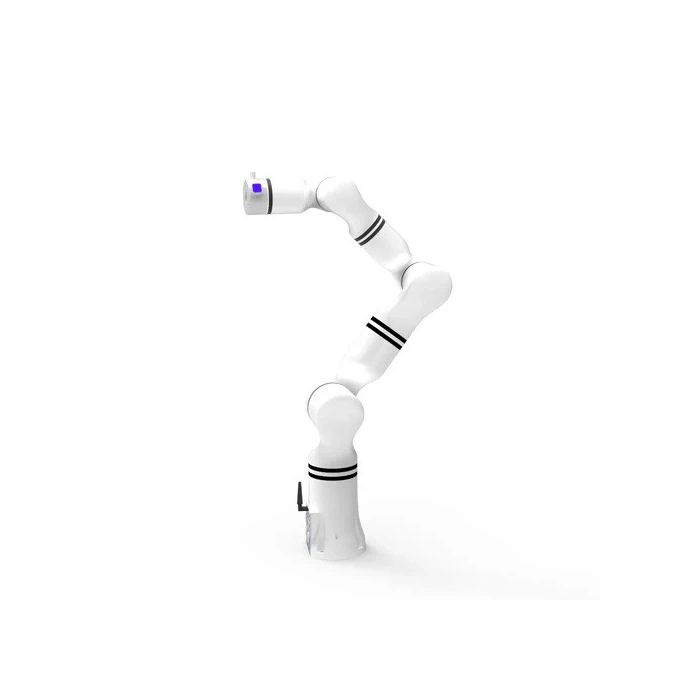

Humanoid Robotic Arm (RX75-6FB-V)

RealMan’s broader RM-series positioning emphasizes ultra-lightweight design, integrated controller architecture, and multi-interface connectivity, aiming to reduce the footprint and integration time for laboratories and small workcells.

Design and Features

Human-scale, “humanoid configuration” geometry

RealMan’s RM75-class documentation describes a humanoid configuration with joint groupings analogous to shoulder–elbow–wrist segmentation. This geometry is commonly selected for tasks that benefit from human-like reachability and intuitive teleoperation/teaching.

Integrated controller and compact deployment

A defining design choice in RealMan’s RM-series product positioning is the integrated controller, intended to simplify mounting, wiring, and deployment in tight spaces (benchtops, mobile bases, compact fixtures). The RM-series overview highlights an integrated-controller approach across RM65/75 variants.

Force-aware interaction (the “6FB” concept)

RealMan’s developer-facing RM75 parameter documentation distinguishes among RM75 variants, including RM75-6FB, described in that documentation as a Six-Axis Force “L” Version (with RM75-6F referenced separately as another six-axis force variant). This nomenclature is often used to denote an arm configured for force/torque sensing and compliant control—capabilities that are central to many humanoid-robotic-arm use cases.

Technology and Specifications

Kinematics and motion (RM75-series reference baseline)

RealMan’s RM75-series ontology/parameter documentation lists the following baseline attributes for the RM75 platform family:

• Degrees of freedom: 7

• Configuration: humanoid configuration

• Working radius (standard): 610 mm (with other variant radii noted)

• Payload: 5 kg

• Self-weight: 7.8 kg (standard version; six-axis force versions listed separately)

• Repeatability: ±0.05 mm

• Protection level: IP54 (body)

• Operating conditions: 0–45 °C; 25–85% humidity (non-condensing)

• Typical / peak power: ≤100 W typical; ≤200 W peak (listed)

• Installation angle: any angle

• Motion ranges and joint speeds: joint range limits and max angular velocities are enumerated in the parameter table.

Force control (RM75-series reference baseline)

The same RM75-series documentation includes force-control specifications for six-axis force sensing (supported only by the 6-DoF sensor configuration), including:

• Six-axis force range: 200 N / 7 N·m

• Six-axis force accuracy: ±0.5% FS

Interfaces and control modes (RM75-6F family page)

RealMan’s RM75-6F product page (a closely related six-axis force variant in the same RM75 family) describes a multi-interface system and common control methods used across the line, including:

• Communication modes: Wi-Fi / network port / Bluetooth / USB serial / RS-485

• Control modes: drag/teach (“drag and drop teaching”), teaching pendant, API, JSON

• Secondary development: API support (including languages such as C/C++/C#/Python), JSON protocol control, and ROS support are described as supported development approaches for the platform family.

Applications and Use Cases

Research and education

Humanoid-configuration arms with integrated controllers and published kinematic models are widely used in robotics education, ROS/MoveIt experimentation, and manipulation research—especially where the goal is rapid iteration rather than bespoke industrial cell engineering. RealMan’s developer documentation and RM-series positioning support these workflows with parameter models and ROS2-oriented navigation resources.

Force-guided assembly and compliant manipulation

A six-axis force-sensing variant is typically selected for tasks requiring compliance, contact detection, and safe interaction, such as:

• insertion/fit tasks (press-fit, connector mating),

• surface following (polishing, inspection contact),

• torque-limited fastening,

• human-guided “teach by hand” programming.

Lab automation and sample handling

RealMan’s RM75-6F page highlights real-world categories such as laboratory and medical-adjacent automation use cases (e.g., sample management) as representative scenarios for the platform class.

Mobile manipulation and compact workcells

The RM-series emphasis on low mass and integrated control supports deployment on:

• mobile bases (AMRs),

• small carts,

• benchtop fixtures,

• space-constrained kiosks and demo systems.

Advantages / Benefits

High capability per footprint

A recurring value proposition in RealMan’s RM-series positioning is combining human-scale reach, 5 kg class payload, and integrated electronics to reduce external cabinet space and simplify installation.

Force interaction for safer, more flexible automation

Six-axis force sensing is central to enabling:

• compliant control (reducing contact forces),

• contact-aware trajectory execution,

• more intuitive hand-guided teaching and calibration workflows.

Developer-facing ecosystem

The availability of published kinematic/parameter resources for the RM75 series (including D-H/MDH model references and a ROS2 development navigation structure) supports faster integration into modern robotics stacks, simulation, and motion planning workflows.

FAQ Section

What is the Realman Robotics Humanoid Robotic Arm (RX75-6FB-V)?

The RX75-6FB-V is a Realman Robotics humanoid-configuration robotic arm entry used in distributor catalogs, typically associated with an RM75-class manipulator and a “6FB” six-axis force-sensing variant intended for contact-aware, compliant manipulation.

How does the RX75-6FB-V work?

It operates as an articulated, multi-joint robotic arm controlled through an integrated controller and software interfaces. RM75-family documentation describes support for multiple communication options and common control approaches such as teaching/drag methods and programmatic control via APIs or JSON protocols, with robotics-stack support referenced through developer documentation.

Why is the RX75-6FB-V important?

Force-capable humanoid arms are important because they enable compliant, contact-aware automation—useful for tasks that are difficult to rigidly automate (insertion, surface contact, guided teaching) and for safer interaction in research or service environments. RealMan’s RM75 documentation explicitly characterizes the six-axis force variants and their force-range/accuracy parameters.

What are the benefits of the RX75-6FB-V?

Key benefits typically sought in this class include:

• Humanoid configuration for intuitive reach and task mapping,

• Force sensing (6FB variant) for compliant control and contact tasks,

• Integrated controller + multi-interface connectivity for faster deployment,

• Published kinematic/parameter resources supporting integration with modern robotics software workflows.

•

Summary

The Realman Robotics Humanoid Robotic Arm (RX75-6FB-V) represents a distributor-listed humanoid robotic arm entry commonly associated with RealMan’s RM75-class platform and the 6FB six-axis force variant documented in RealMan’s technical materials. With a focus on human-scale geometry, integrated control, and force-aware manipulation, it aligns with modern needs in research, lab automation, compact workcells, and embodied AI development, where compliant interaction and fast integration are decisive factors
