Realman Robotics Ultra-Lightweight Robotic Arm (RM65-B)

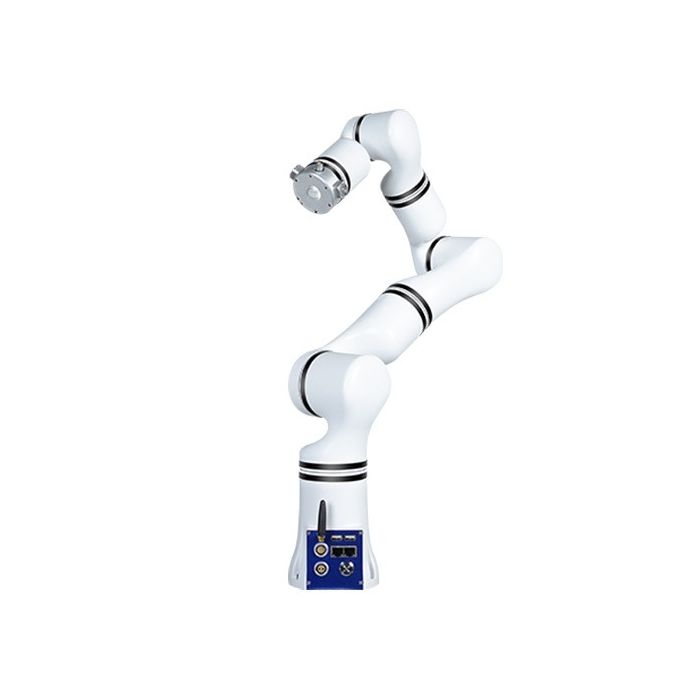

Realman Robotics RM65-B Ultra-Lightweight Humanoid Robotic Arm (RM65-B)

It is positioned as a “basic version” within RealMan’s RM65 series, combining an integrated controller architecture with a relatively high payload for its mass, and supporting multiple control and communication options for industrial and prototyping workflows.

In RealMan’s product framing, the “humanoid” descriptor refers to the arm’s human-scale form factor and weight class, intended to simplify integration in environments where traditional robotic arms and control cabinets may be difficult to install or power.

Design and Features

Ultra-lightweight, integrated architecture

A defining design feature of the RM65-B is its integrated controller concept—reducing the need for a separate control cabinet in typical installations. The manufacturer describes the total system (robotic arm integrating the controller) as weighing 7.2 kg, supporting a 5 kg payload with a stated peak load of 9 kg, and providing a 610 mm working radius.

Deployment-focused form factor

The RM65-B emphasizes compact deployment with a small footprint and flexible mounting orientations. Retail technical listings commonly note table/ceiling vertical mounting and wall horizontal mounting as supported orientations, supporting integration into lab rigs, mobile bases, and small workcells.

Multi-modal control and teaching

The RM65-B supports multiple ways to create and run motion programs, including drag teaching (sometimes described as drag-and-drop teaching), pendant-based or guided workflows, and programmatic control via APIs and structured formats. The product page lists control modes such as drag teaching, teaching pendant, and API/JSON control.

Technology and Specifications

Motion system (DoF, reach, repeatability)

The RM65-B is specified as a 6-DoF arm with a 610 mm working radius and ±0.05 mm repeatability, targeting tasks where compact size and consistent positioning matter (e.g., picking, placement, inspection, and light assembly).

Electrical and power characteristics

The manufacturer specifies a DC 24 V supply and power consumption figures of maximum 200 W and comprehensive/average 100 W. Such a low-voltage DC input is often associated with easier mobile integration compared with higher-voltage AC systems, especially when mounted on autonomous mobile robots (AMRs) or battery-backed platforms.

Environmental protection and materials

RealMan lists an IP54 protection level for the robotic arm body and an aluminum alloy construction, indicating a design intended for common industrial indoor conditions such as dust exposure and incidental splashes rather than washdown environments.

Joint ranges and speed

RealMan provides joint motion ranges and maximum speeds, describing a wide J6 rotation range and comparatively high joint speeds for a compact arm class. Published specifications include:

• Joint motion range: J1 ±178°, J2 ±130°, J3 ±135°, J4 ±178°, J5 ±128°, J6 ±360°

• Joint maximum speed: J1–J2 180°/s, J3–J6 225°/s

Communication and software ecosystem

The RM65-B lists multiple communication methods, including Wi-Fi, Ethernet/network port, Bluetooth, USB serial, and RS485.
Retail technical listings also describe broad software and API compatibility—commonly noting Windows/Linux, programming language support (e.g., C/C++/C#/Python), and robotics platform integration such as ROS, RViz, MoveIt, and simulation tools.

Key specification summary (as published)

Applications and Use Cases

Factory automation in compact cells

RealMan highlights use in industrial production contexts and cites example “successful cases” such as inspection and process tasks.  In practice, a compact 6-DoF arm with moderate payload can be used for end-of-line handling, light machine tending, parts transfer, labeling, and simple fixture operations—especially where a small footprint and integrated control reduce installation complexity.

Mobile manipulation on AMRs

The 24 V DC supply and low power profile are frequently referenced as enabling mobile scenarios, where an arm is mounted on a wheeled base to create a mobile manipulator for warehouse picking, lab logistics, or facility patrol tasks that require interaction (opening drawers, pressing buttons, moving objects).

Research, education, and ROS-based development

With common listings noting ROS ecosystem compatibility and multiple programming language options, the RM65-B is positioned for robotics R&D workflows such as perception-to-manipulation pipelines, grasp planning experiments, imitation learning via drag teaching, and simulation-to-real validation using standard tools.

Demonstrations, exhibitions, and “human-friendly” workspaces

RealMan’s site includes “Exhibition” among application scenarios, reflecting use cases where safe-looking form factor, lightweight handling, and interactive teaching can be valuable for demos, showrooms, and human-in-the-loop setups.

Advantages / Benefits

High capability relative to mass

A frequently emphasized benefit is the payload-to-weight profile: 5 kg payload on a 7.2 kg integrated arm/controller system, supporting applications that want meaningful end-effector capability without heavy mounting structures.

Simplified integration

The integrated controller reduces cabling and cabinet requirements, potentially shortening integration timelines for OEMs, lab teams, and system integrators building compact robotic stations.

Flexible connectivity and control

With support for common wired and wireless communication methods and multiple control paradigms (teaching + API/JSON), the RM65-B can fit both “quick teach” workflows and software-defined automation.

FAQ Section

What is the RealMan RM65-B robotic arm?

The RealMan RM65-B is a 6-DoF ultra-lightweight humanoid robotic arm with an integrated controller, designed for compact automation and R&D. It is specified with a 5 kg payload, 610 mm working radius, and ±0.05 mm repeatability.

How does the RM65-B work?

The RM65-B moves through six motorized joints to position an end effector (such as a gripper or suction tool). It can be operated through teaching modes (e.g., drag teaching) and through software control using APIs and structured data formats such as JSON, depending on the deployment.

Why is the RM65-B important for automation and robotics R&D?

Its combination of low mass, integrated control, and 24 V DC power can simplify deployment in mobile or space-limited environments while still supporting a practical payload and reach for real-world manipulation tasks.

What are the benefits of the RM65-B ultra-lightweight humanoid robotic arm?

Key benefits include an integrated controller, 5 kg payload with 7.2 kg body weight, 610 mm reach, DC 24 V power, and multiple communication options (e.g., Wi-Fi/Ethernet/serial interfaces) for flexible integration.

Summary

The RealMan Robotics RM65-B is a compact 6-DoF ultra-lightweight humanoid robotic arm combining an integrated controller, low-voltage DC power, and published performance specifications (5 kg payload, 610 mm working radius, ±0.05 mm repeatability). Its emphasis on flexible communications and multi-modal control makes it relevant for modern automation, mobile manipulation, and ROS-centric robotics development.
