EngineAI PM01 Education Edition Humanoid Robot
In stock
- BRAND:
- ENGINE AI
- MODEL:
- PM01 Education Edition
- PART #:
- PM01 Education
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Engineai-PM01-Education

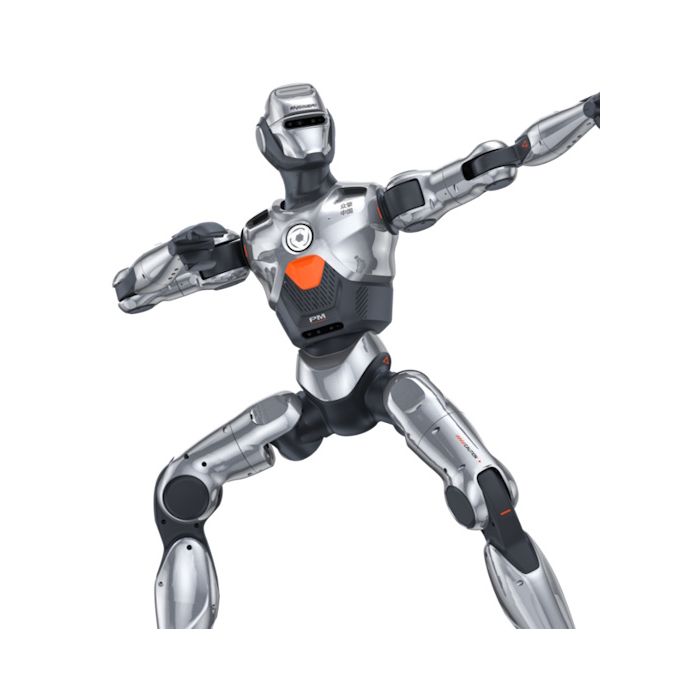

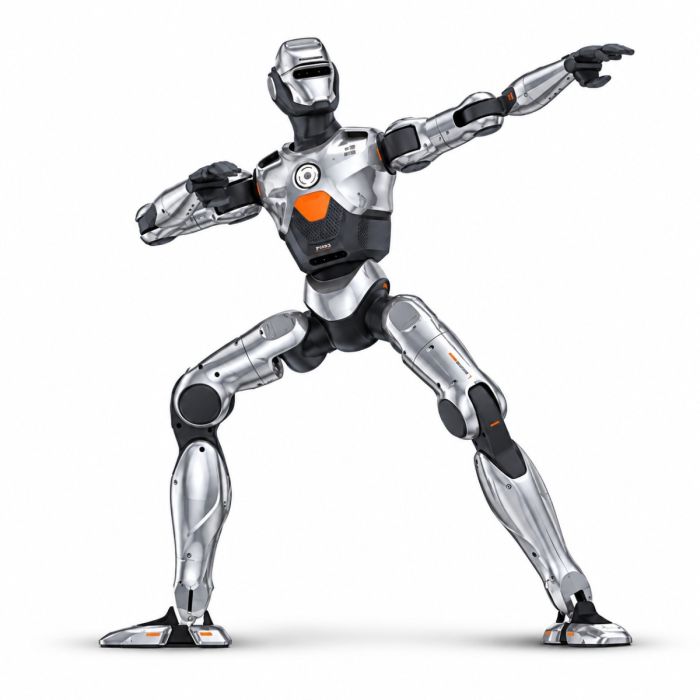

EngineAI PM01 Education Edition Humanoid Robot
Teaching humanoid robotics on slides and simulators only goes so far. Students learn the most when their code meets a real body: when a gait that worked in simulation slips on the lab floor, or a perception model sees the world through the robot's own cameras. The EngineAI PM01 Education Edition is built for that step. It is a compact, agile humanoid with onboard AI computing, depth cameras and open development tools, small enough for a lab to handle every day.
Background
The EngineAI PM01 is a 138 cm open source humanoid from Shenzhen based EngineAI, offered in two editions. The Commercial edition targets dynamic demonstrations and pilots. The Education Edition adds what research and teaching need: an NVIDIA Jetson Orin NX module, depth cameras, a touch screen and support for secondary development. See all EngineAI robots.
Education vs Commercial Edition
| Feature | PM01 Education | PM01 Commercial |
|---|---|---|
| Total degrees of freedom | 24 | 23 |
| Weight, with battery | Nearly 43 kg | About 42 kg |
| AI computing module | NVIDIA Jetson Orin NX 16 GB | Not listed |
| Depth cameras | Head and waist | Not listed |
| Touch screen | Yes | Not listed |
| Secondary development | Supported | Not listed |
Specifications
| Specification | PM01 Education Edition |
|---|---|
| Height | 138 cm |
| Standing dimensions | 1400 × 535.55 × 252.66 mm (H × W × D) |
| Weight | Nearly 43 kg with battery |
| Arm span | 1.44 m |
| Degrees of freedom | 24: 1 neck, 1 waist, 5 per arm, 6 per leg |
| Waist rotation | More than 300° |
| Movement speed | More than 2 m/s, hardware supported |
| Main processor | 4-core high performance CPU |
| AI computing | NVIDIA Jetson Orin NX 16 GB |
| Perception | Two depth cameras, head and waist |
| Interface | Touch screen, handheld remote |
| Development | Secondary development supported; open source training and deployment code |
| Battery | 10,000 mAh smart battery, quick release |
| Runtime | Nearly 2 hours |
| Charging* | 54.6 V, 4.5 A |
*According to published specifications. Confirm final values with your order.
Key Features
Onboard AI with Jetson Orin NX
The NVIDIA Jetson Orin NX 16 GB module sits alongside the main CPU, so perception models, mapping and learned controllers run on the robot itself. Students and researchers can test AI on real hardware without a tethered workstation.
Depth Cameras in the Head and Waist
Two depth cameras give the robot a view of the world ahead and of the ground near its feet. That supports obstacle detection, terrain aware walking and perception research.
Open Development
The Education Edition supports secondary development, and EngineAI provides open source training code for reinforcement learning and deep learning, deployment code and a ROS deployment framework. Teams can train locomotion in simulation and deploy it on the PM01 instead of building a stack from scratch.
Compact, Agile Body
At 138 cm and nearly 43 kg, the PM01 is light enough to lift onto a support frame and handle every day, yet it walks and runs at speeds above 2 m/s. A waist that rotates more than 300° and a moving neck give it a wide range of expressive motion.
Touch Screen and Quick Release Battery
A touch screen makes the robot easier to operate in class, and a 10,000 mAh quick release battery gives nearly two hours per charge, with a spare keeping sessions going.
Applications
- University courses: robotics, control, ROS and AI taught on a real humanoid.
- Locomotion research: reinforcement learning, balance and sim to real transfer.
- Perception and embodied AI: running vision and decision models on the Jetson Orin NX.
- Student projects and competitions: a durable platform for project based learning.
- Technical colleges and STEM centers: hands on humanoid robotics programs.
Explore more educational robots, research robots and bipedal humanoids.
Who Should Buy the PM01 Education Edition?
Buy the PM01 Education Edition if your program wants students and researchers working on a real humanoid with onboard AI, depth vision and open code, at a size the lab can manage every day. It suits universities, robotics departments, AI labs, technical colleges and student teams.
Which Should You Buy?
| If you need... | Choose |
|---|---|
| A compact humanoid with AI computing and depth cameras for teaching | EngineAI PM01 Education Edition |
| A PM01 for dynamic demonstrations and commercial pilots | EngineAI PM01 Commercial Edition |
| A lower cost bipedal robot for introductory courses | EngineAI SA01 EDU |
| A full size open source humanoid | EngineAI T800 EDU Open Source |
| A person controlling the robot through VR | EngineAI Embodied Teleoperation |
Before You Buy
- Plan class sessions: with nearly two hours per charge, order spare batteries for full lab days.
- Prepare the space: set up an open, padded test area and a support gantry for early experiments.
- Check the software: review the open source code, ROS versions and SDK documentation against your curriculum.
- Plan safety: a 43 kg robot moving at 2 m/s needs clear rules, emergency stop training and supervision.
- Know its limits: the PM01 has simple 5-DOF arms without dexterous hands; manipulation courses may need another platform.
- Ask about support: confirm warranty, spare parts, training and repairs in your region.
Pricing and Availability
The EngineAI PM01 Education Edition is available to buy directly from this page. Current price and availability are shown at the top of the page. Add it to your cart to order, or add it to your quote for classroom sets, multiple units or spare batteries.
Frequently Asked Questions
What is the EngineAI PM01 Education Edition?
It is the research and teaching edition of the EngineAI PM01 humanoid, with an NVIDIA Jetson Orin NX 16 GB module, depth cameras, a touch screen and secondary development support.
How is it different from the Commercial edition?
The Education Edition has 24 degrees of freedom instead of 23 and adds the Jetson Orin NX module, depth cameras, a touch screen and secondary development support.
How tall and heavy is it?
It stands 138 cm tall and weighs nearly 43 kg with its battery.
How fast can it move?
EngineAI lists hardware supported movement speeds above 2 m/s.
How long does the battery last?
Nearly two hours per charge from a 10,000 mAh quick release battery.
Can I program it myself?
Yes. It supports secondary development, and EngineAI provides open source training and deployment code and a ROS deployment framework.
How much does the EngineAI PM01 Education Edition cost?
The current price is shown at the top of this page.
Where can I buy the EngineAI PM01 Education Edition?
You can buy it right here on this page. Add it to your cart or request a quote.
Summary
The EngineAI PM01 Education Edition puts onboard AI computing, depth vision and open development tools into an agile 138 cm humanoid that a lab can handle every day. For universities, research groups and student teams that want to move from simulation to a real humanoid, it is a practical, open platform to teach and build on. If you are ready to buy, order it from this page or add it to a quote for a classroom set.
