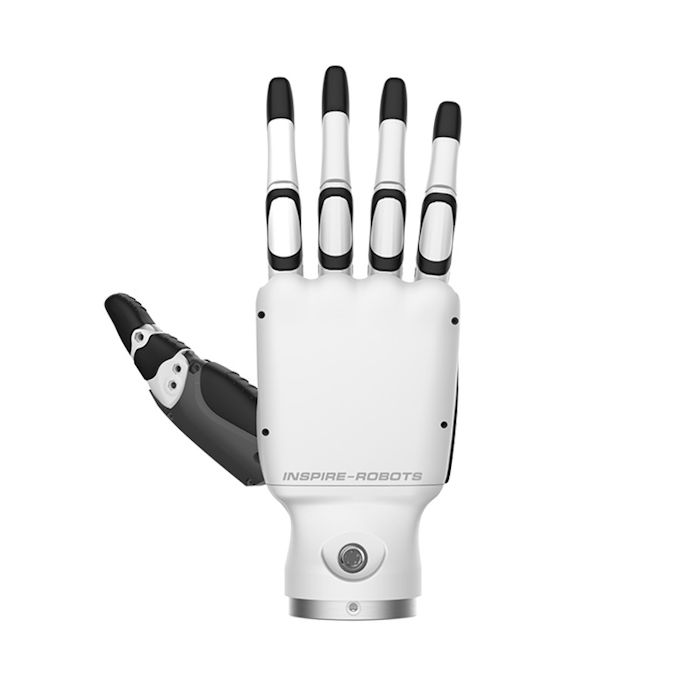

Inspire RH56BFX Dexterous Robot Hand (RH56BFX)

RH56BFX Dexterous Robot Hand (RH56BFX)

Produced by Inspire Robots, the RH56BFX belongs to the RH56 “Dexterous Hands” family and is often positioned as a “piano-hand” style end-effector—emphasizing fast finger motion, repeatable fingertip positioning, and integrated force sensing rather than maximum gripping strength.

Within the RH56 lineup, the “BFX” variant is commonly described as high-speed with slightly lower grip force, making it particularly suited to expressive gestures, lightweight object handling, and lab-scale manipulation experiments where responsiveness and precision matter more than heavy payload grasping.

Design and Features

Anthropomorphic form factor

The RH56BFX is shaped and proportioned to approximate a human hand, enabling naturalistic interaction patterns such as pointing, pinching, and common hand gestures. The design is intended for straightforward mounting to robot wrists or adapter plates, and is sold in left- and right-hand configurations through various channels.

Linear-actuated finger architecture

A defining design choice in the RH56 family is the integration of miniature linear servo actuators driving finger linkages. In Inspire’s product literature, the dexterous hand is described as using multiple micro linear servo drives and internal pressure/force sensors to support controlled grasping and interaction.

Integrated force sensing and hybrid control

RH56 documentation describes force sensors integrated into the hand, enabling feedback during contact and grasping. This supports hybrid force–position control approaches—useful for delicate pickup tasks, stable holds, and research into compliant manipulation.

High-speed motion focus (“piano-hand” positioning)

The RH56BFX is consistently characterized in official and reseller materials as a fast-moving dexterous hand, optimized for quick finger articulation and interactive demonstrations (for example, gesture-based interaction).

Technology and Specifications

Note: Specifications can vary slightly by configuration and documentation edition. The parameters below reflect commonly published RH56BFX/RH56-series figures.

Core kinematics and sensing

• Degrees of freedom (DOF): 6

• Total joints: 12

• Force sensors: 6

• Force sensor resolution: 0.5 N

• Repeated fingertip positioning accuracy / repeatability: ~0.2 mm (often expressed as ±0.20 mm)

Power and electrical interface

• Recommended operating voltage: 24 V (commonly listed as DC 24 V ±10%)

• Current (typical published values): quiescent current around 0.12 A and higher draw under motion/force, with peak values depending on grip demand

• Communication interface: RS485 is widely listed for RH56BFX commercial listings; Inspire documentation also provides serial communication parameters for RH56-series setups (e.g., 115200 bps, 8-N-1).

Grip force and motion emphasis

Published selection-guide and reseller data typically present the RH56BFX as lower-force, higher-speed compared with more grip-focused variants in the broader RH56 family:

• Maximum grip force (typical BFX figures): thumb ~6 N; four fingers combined ~4 N

• Fast finger motion: reseller spec sheets list high finger flexion speeds for BFX (used to illustrate its “pianist” positioning).

Software and robotics ecosystem support

Product pages and distributors commonly note compatibility with ROS (Robot Operating System) workflows, sometimes offering ROS packages or plugins depending on distributor channel and integration approach.

Applications and Use Cases

Humanoid robotics research and teleoperation

Dexterous hands are a key bottleneck in humanoid manipulation. The RH56BFX is often used in research environments to prototype grasp planning, contact-rich manipulation, and hand–arm coordination, particularly when high-speed finger articulation is useful for responsive control loops.

Gesture interaction and service-robot demonstrations

Because of its fast motion profile and anthropomorphic form, the RH56BFX is frequently framed as suitable for gesture-based interaction, reception/guide robots, and educational demonstrations where expressive hand movements improve perceived social capability.

Lab automation and light manipulation

While not typically marketed as a heavy-duty gripper, RH56-series documentation and reseller descriptions position it for controlled handling of small objects, instrument interaction, and lightweight manipulation tasks—especially where force feedback supports stable contact.

Education and prototyping

Universities and training programs use dexterous hands to teach robotics concepts such as kinematics, grasp taxonomy, tactile/force feedback control, and closed-loop manipulation. Listings and selection guides often reference teaching and research as core scenarios.

Advantages / Benefits

High-speed finger articulation

The RH56BFX’s defining advantage is fast, expressive motion, making it well suited to gestures and rapid manipulation sequences.

Force feedback for contact-aware interaction

Integrated force sensing (commonly described as six sensors with ~0.5 N resolution) supports safer contact, improved grasp stability, and research into compliant control strategies.

Repeatability for research-grade experiments

Repeat fingertip positioning on the order of ~0.2 mm is frequently cited for RH56-series hands, enabling consistent experiment baselines and repeatable demonstrations.

Compact integration path

A lightweight, hand-scale end-effector can be easier to integrate on small humanoids and cobot arms than heavier multi-finger hands, especially in lab environments where rapid iteration matters. (Exact mass is sometimes listed around ~540 g in selection-guide materials, depending on configuration.)

FAQ Section

What is the Inspire RH56BFX Dexterous Robot Hand?

The Inspire RH56BFX is a high-speed dexterous robotic hand with an anthropomorphic form factor, designed for humanoid robotics, gesture interaction, and manipulation research. It is part of Inspire’s RH56 dexterous hand family and is commonly described as a “piano-hand” style model focused on speed and precision.

How does the RH56BFX work?

The RH56BFX uses a linkage-driven finger mechanism powered by miniature actuators, combined with integrated force sensing to enable contact-aware grasping. Control systems typically coordinate finger motions (position) and adjust behavior using force feedback (hybrid force–position control concepts).

Why is a dexterous robot hand like RH56BFX important?

Dexterous hands enable robots to perform tasks that require human-like grasp types, fine manipulation, and natural interaction—capabilities that are difficult to achieve with simpler two-finger grippers. The RH56BFX targets this space with fast articulation and repeatable motion for research and demonstration settings.

What are the benefits of the RH56BFX?

Commonly cited benefits include fast finger motion, integrated force feedback (often described as six force sensors with ~0.5 N resolution), and repeatable fingertip positioning around 0.2 mm—features that support expressive gestures, light manipulation, and research-grade experimentation.

Summary

The Inspire RH56BFX is a dexterous robotic hand designed around high-speed articulation, force-feedback interaction, and repeatable fingertip precision, making it a practical platform for humanoid manipulation research, gesture-driven HRI, and lab-scale dexterous handling. With published RH56-series specifications emphasizing 6 DOF, 12 joints, and integrated force sensing, the RH56BFX is commonly positioned as a “piano-hand” option for fast, expressive manipulation rather than maximum gripping power.
