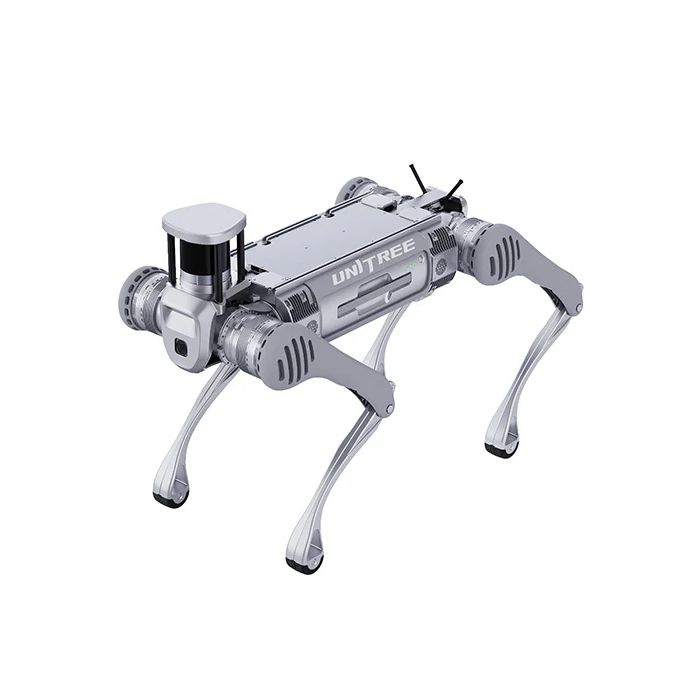

Unitree B2 Quadruped Robot with Navigation Kit Package

Unitree B2 Quadruped Robot with Navigation Kit Package

Developed by Unitree Robotics, the B2 emphasizes high payload capacity, long endurance, and robust mobility across uneven terrain, stairs, and obstacles, and is positioned for “all-scene” industrial use cases such as power inspection and emergency response.

In commercial deployments, the B2 is often paired with a navigation kit package—a practical term used in industry to describe the additional sensing, computing, and software components that support mapping, localization, path planning, and semi-autonomous or autonomous patrol workflows. On Unitree’s industrial inspection materials, the B2 platform is presented with perception and “intelligent patrol” concepts that combine LiDAR, cameras, and AI vision for scanning and structured patrol execution.

Design and Features

Industrial quadruped form factor

The B2 uses a four-legged configuration to maintain stability on complex terrain and to step over discontinuities that can stop wheeled platforms. Unitree highlights obstacle crossing of up to 40 cm, climbing grades above 45°, and continuous stair climbing on 20–25 cm steps (with additional claims for forward-direction stair traversal up to 40 cm).

Load, endurance, and mobility emphasis

A distinguishing theme of the B2 platform is high load capacity and long operating time:

• Standing load: ≥ 120 kg

• Continuous walking load: > 40 kg

• Endurance: walking without load > 5 hours; with 20 kg load > 4 hours (mileage targets also stated)

Unitree also lists a maximum running speed > 6 m/s (noting it is realized in special configurations and subject to safety limits in practice).

Durability and environmental operation

For industrial deployment, Unitree specifies IP67 ingress protection and an operating temperature range of −20°C to 55°C.

Wheeled and legged hybrid option

Unitree describes the B2 as capable of switching between legged and wheeled forms (optional), positioning the wheeled-foot configuration as a way to improve operational efficiency and address endurance limitations in certain scenarios.

Technology and Specifications

Core dimensions and power system

Unitree provides approximate mechanical and power figures for the B2 platform:

• Size (standing): ≈ 1098 × 450 × 645 mm

• Size (lying prone): ≈ 880 × 460 × 330 mm

• Weight: ≈ 60 kg (battery included)

• Battery: 45 Ah (2250 Wh) at 58 V; battery life stated as 4–6 hours

The B2 battery is described as plug-in / quick-change, with autonomous charging solutions (optional) referenced for longer-duration deployments.

Onboard computing and interfaces

For control and perception, Unitree lists:

• Standard configuration: Intel Core i5 (platform function), Intel Core i7 (user development)

• Optional configuration: Intel Core i7 and Jetson Orin NX (up to 3 devices)

External interfaces listed include multiple Ethernet and USB ports and several power outputs (12V, 24V, 5V) plus a battery interface, supporting sensor expansion and industrial payload integration.

Sensor baseline relevant to “navigation kit” configurations

Unitree notes a sensing set that varies by configuration, including:

• 3D LiDAR ×1

• Depth camera ×2

• Optical camera ×2

This sensor stack aligns closely with what many integrators refer to as a navigation kit package: a combined perception suite intended to support 3D mapping, obstacle detection, localization, and route following.

Applications and Use Cases

Industrial inspection and patrol

Unitree positions the B2 for inspection work such as “infrared scanning” and “3D mapping,” and separately describes an industrial inspection approach combining infrared thermography + LiDAR + AI vision for continuous scanning and anomaly detection.

Common inspection deployments include:

• Substation inspection

• Pipeline network inspection

• Mine site inspection

Intelligent patrol workflows and fast deployment

For larger-scale industrial programs, Unitree describes an intelligent patrol system that can interface with robots and other smart devices and integrate AI-vision algorithms to support centralized monitoring and automated responses.

Unitree also describes a rapid rollout concept for patrol routes using a “Waypoint – Simulation – Deployment” closed-loop workflow, connecting environment modeling, path planning, and on-site execution.

Emergency and difficult-terrain operations

Unitree highlights B2 operation on long stairs, rock piles, and steep slopes as an emergency-rescue-oriented capability, consistent with the platform’s focus on mobility and payload in uncontrolled environments.

Advantages / Benefits

High payload and endurance for industrial tasks

The B2’s stated >40 kg continuous walking load and multi-hour endurance targets support payload-heavy missions (multi-sensor inspection payloads, comms relays, specialized tooling, or added compute), where lighter quadrupeds may require shorter duty cycles.

Strong terrain-handling characteristics

Obstacle clearance and steep-grade climbing specifications are aimed at real-world facilities (stairs, trenches, rubble, platforms), reducing the need for dedicated access infrastructure or human entry into hazardous areas.

Navigation kit value: higher autonomy and repeatability

When paired with navigation-oriented perception and patrol software, a “navigation kit package” can shift deployments from teleoperation-heavy trials to repeatable patrol routes, consistent data capture, and scalable site coverage—goals reflected in Unitree’s intelligent patrol and waypoint-simulation-deployment descriptions.

FAQ Section

What is the Unitree B2 Quadruped Robot with Navigation Kit Package?

It is an industrial quadruped robot (Unitree B2) configured with additional perception and patrol capabilities—commonly including LiDAR and camera sensing plus onboard compute—intended to support mapping, localization, and route-based inspection. Unitree lists a configurable sensing stack (3D LiDAR, depth cameras, optical cameras) and describes intelligent patrol workflows for industrial inspection.

How does a navigation kit for the Unitree B2 work?

A navigation-oriented configuration typically fuses data from the B2’s LiDAR and cameras with onboard computing to build or reference a 3D map, localize the robot within the environment, detect obstacles, and follow planned patrol routes. Unitree describes a deployment workflow based on “Waypoint – Simulation – Deployment,” linking modeling, planning, and execution for patrol missions.

Why is the Unitree B2 important for industrial inspection?

The B2 is designed for environments where human access is risky or inefficient, and where coverage must be repeatable. Unitree frames industrial inspection around continuous scanning using combinations such as infrared thermography, LiDAR, and AI vision, alongside patrol systems that centralize monitoring and analysis.

What are the benefits of adding a navigation kit package?

A navigation-ready configuration improves autonomy and repeatability, enabling route-based patrols, consistent data collection, and faster scaling across large facilities. Unitree’s inspection materials emphasize intelligent patrol systems and rapid deployment workflows to increase coverage density and reduce manual workload.

Summary

The Unitree B2 is an industrial quadruped engineered for demanding field conditions, combining high payload capacity, multi-hour endurance targets, configurable compute, and a LiDAR-and-camera perception stack suitable for navigation-oriented deployments. When packaged with a navigation kit approach—integrating perception, onboard computing, and patrol workflow software—the B2 is positioned to support scalable inspection and monitoring in complex, high-risk environments, aligning mobility, autonomy, and repeatable data capture for modern industrial operations.

The Unitree B2 Quadruped Robot, when combined with its dedicated Navigation Kit, transcends the boundaries of traditional robotics, offering a powerful platform for advanced autonomous mobility. This package isn't merely a robot; it's a complete solution designed to tackle the most demanding tasks in industrial, research, and development sectors.

Elevating Autonomous Navigation:

The B2, renowned for its strength and agility, gains a new dimension of intelligence with the Navigation Kit. This kit, meticulously engineered, equips the robot with the sensory perception necessary for true autonomous operation. Key components include:

• High-Resolution LiDAR: Enables precise 3D mapping of the environment, crucial for obstacle avoidance and path planning.
• Stereo Cameras: Provide detailed visual data, enhancing object recognition and depth perception.
• Advanced IMU Sensors: Offer accurate motion and orientation data, ensuring stable navigation in dynamic environments.
• Powerful Onboard Computer: Processes sensor data and executes sophisticated navigation algorithms in real-time.

Applications Across Diverse Industries:

The B2 with Navigation Kit is a versatile tool, capable of adapting to a wide range of applications:

• Industrial Inspection: Navigate complex industrial environments to perform inspections, monitor equipment, and detect anomalies.
• Construction and Logistics: Transport materials, map construction sites, and navigate challenging terrains.
• Search and Rescue: Deploy in disaster-stricken areas to locate survivors, map debris, and provide crucial information.
• Environmental Monitoring: Collect data in remote or hazardous locations, mapping terrain and analyzing environmental conditions.
• Research and Development: Serve as a powerful platform for developing and testing advanced robotics and AI algorithms.

Key Features and Benefits:

• Robust Quadruped Design: Exceptional mobility and stability in complex environments.
• Advanced Navigation Kit: LiDAR, stereo cameras, and IMU sensors for precise autonomous operation.
• Real-Time Mapping and Path Planning: Enables efficient navigation in dynamic environments.
• High Payload Capacity: Carry significant payloads for diverse applications.
• Powerful Onboard Computing: Process sensor data and execute complex algorithms.
• Customizable Interfaces: Integrate with various payloads and tools.
• Remote Operation: Safe and efficient control from a distance.
• Data Collection and Analysis: Real-time data gathering for improved decision-making.

Why Choose the Unitree B2 with Navigation Kit?

This package represents a significant investment in advanced robotics, offering a comprehensive solution for demanding applications. Unitree's commitment to innovation and quality ensures that you receive a reliable and powerful platform that can tackle the challenges of the future.
