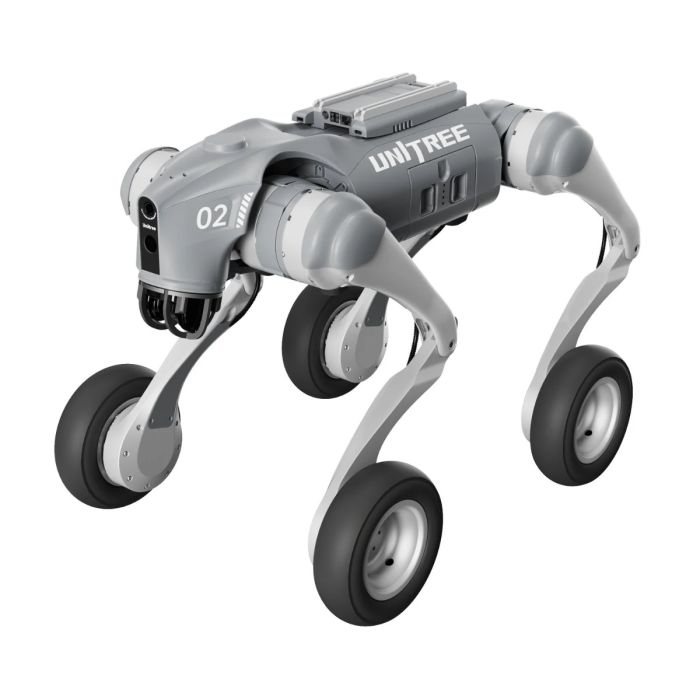

Unitree Go2-W Standard Wheeled Quadruped Robot Dog (Go2-W-U1)

Unitree Go2-W Standard Wheeled Quadruped Robot Dog (Go2-W-U1)

As a “wheeled quadruped robot dog,” the Go2-W is commonly positioned as a mobile robotics base for education, research, prototyping, and applied autonomy—especially where developers want the stability and obstacle negotiation of legs alongside the speed and efficiency of wheels.

Unlike purely legged quadrupeds, the Go2-W emphasizes hybrid mobility: wheels can improve rolling efficiency on smooth surfaces while legs preserve the ability to step over small obstacles, traverse uneven ground, and maintain stability during turns or low-speed maneuvers. In practical deployments, this hybrid approach may reduce energy use for long traverses compared with continuous stepping, while still enabling legged behaviors when terrain conditions require them.

Design and Features

Hybrid wheeled–legged architecture

The Go2-W uses a four-leg chassis with integrated wheels and a compact body intended to carry onboard compute, sensors, and payload modules. Product listings describe the wheels as pneumatic tires (commonly referenced as 7-inch class (≈180 mm) in distributor specifications), aimed at improving traction and vibration isolation on typical outdoor surfaces such as concrete, compact dirt, and light gravel.

Actuation and mechanical layout

The Go2-W is described as using 16 joint motors, reflecting four legs with multiple actuated joints per limb, a configuration typical of dynamic quadruped robots. Distributor specifications also reference peak joint torque values for the platform, which are relevant to step clearance, acceleration, and payload handling in legged mode.

Sensors and perception (platform-dependent)

Go2-series platforms are typically presented with a sensor suite that supports navigation and autonomy experiments, including depth sensing and LiDAR-class perception elements depending on configuration and market. In distributor documentation for the Go2-W, the robot is positioned as an “innovative” hybrid platform that can be used for autonomous development and research applications that benefit from perception-driven locomotion.

Technology and Specifications

Core published performance figures

• Approximate weight: ~12.5 kg

• Nominal payload: ~8 kg

• Maximum speed (claimed): ~2.5 m/s

• Maximum climb angle (claimed): ~35°

• Actuators: 16 motors (published)

Power system and endurance

Listings commonly specify a 28.8 V battery pack and publish a 15,000 mAh capacity for the Go2-W configuration, with typical operating time described in broad ranges depending on gait, terrain, payload mass, and compute load. Charging and battery management are generally treated as integrated subsystems, with charging hardware supplied as part of the platform package in many commercial offerings.

Software and development context

As a research and developer-oriented platform, the Go2-W is often used in workflows involving mapping, teleoperation, autonomy stacks, and reinforcement learning (RL) locomotion research. In many academic and industrial pilot projects, quadruped platforms serve as a repeatable “hardware-in-the-loop” base for developing perception and control pipelines—especially for mobile robot navigation, obstacle avoidance, and outdoor inspection autonomy. (Software tooling and supported SDKs vary by distributor and region.)

Applications and Use Cases

Education and robotics research

The Go2-W is frequently marketed toward universities, labs, and training centers that need a compact, field-ready mobile robot for curriculum and capstone projects. Hybrid mobility supports a broader range of demos than a purely wheeled base (which may struggle with curbs or uneven thresholds) while remaining more energy-efficient than constant legged motion on smooth floors.

Inspection and patrolling prototypes

Quadruped robots are widely prototyped for facility inspection and patrol scenarios where stairs are not required but uneven ground, ramps, and outdoor walkways are common. A wheeled quadruped can traverse long corridors and paved paths efficiently and still step over small obstacles (hoses, cable covers, minor debris) when needed.

Computer vision and autonomy validation

For teams building vision-based navigation (e.g., depth + LiDAR fusion, visual–inertial odometry, terrain classification), a quadruped form factor offers motion patterns that stress perception pipelines more than a simple differential-drive robot. This makes platforms like the Go2-W useful for testing robustness of SLAM and navigation stacks under vibration, body pitch/roll, and non-planar ground contact.

Teleoperation and remote presence experimentation

Developers can also use quadruped platforms for teleoperation experiments in human–robot interaction (HRI), remote site walkthroughs, and robotics competitions. Wheels can reduce operator workload on smooth terrain by simplifying motion control while preserving the ability to reposition feet for stability.

Advantages / Benefits

Mobility versatility in mixed environments

A key value proposition of the Go2-W concept is versatility: rolling efficiency on smooth surfaces plus legged adaptation on irregular ground. This hybrid behavior can be beneficial for long-range campus or industrial park traverses where the route includes both pavement and uneven patches.

Payload capacity for sensors and research add-ons

Published payload figures around 8 kg support common research payloads such as additional compute modules, cameras, LiDAR units, environmental sensors, or small manipulator add-ons (within stability limits).

Compact form factor

At a published weight around 12.5 kg, the Go2-W sits in a size class that can be transported by a single person in many contexts, supporting field tests without heavy lifting equipment.

FAQ Section

What is the Unitree Go2-W Standard (Go2-W-U1)?

The Unitree Go2-W Standard is a wheeled quadruped robot (“robot dog”) that combines legged locomotion with integrated wheels, intended as a mobile robotics platform for research, education, and prototyping.

How does the Go2-W work?

The Go2-W uses multiple actuated joints per leg (published as 16 motors total) to control stance and stepping behaviors, while the wheels provide efficient rolling on smooth surfaces. Sensor and compute modules support perception and control for teleoperation or autonomous navigation, depending on configuration.

Why is the Go2-W important?

Hybrid wheeled–legged robots are important because they can bridge the gap between efficient wheeled travel and adaptive legged motion. This can reduce energy use on flat ground while retaining the ability to handle uneven surfaces common in real-world environments.

What are the benefits of the Go2-W for research and education?

Commonly cited benefits include a compact, transportable platform (published around 12.5 kg), meaningful payload capacity (published around 8 kg), and hybrid mobility that supports a wide range of navigation, perception, and control experiments.

Summary

The Unitree Go2-W Standard (Go2-W-U1) is a hybrid wheeled quadruped robot dog designed to support mobile robotics development where both rolling efficiency and legged adaptability matter. With published characteristics such as 16 motors, a weight around 12.5 kg, and a nominal payload around 8 kg, it is positioned as a versatile base for education, autonomy research, and inspection-oriented prototypes across mixed indoor–outdoor terrain.
