Iridium Edge Pro Short Burst Data Satellite Modem (EDGEPRO9690)
In stock
- BRAND:
- IRIDIUM
- MODEL:
- EDGE PRO
- PART #:
- EDGEPRO9690
- ORIGIN:
- Canada
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Iridium-Edge-Pro-SBD-Modem

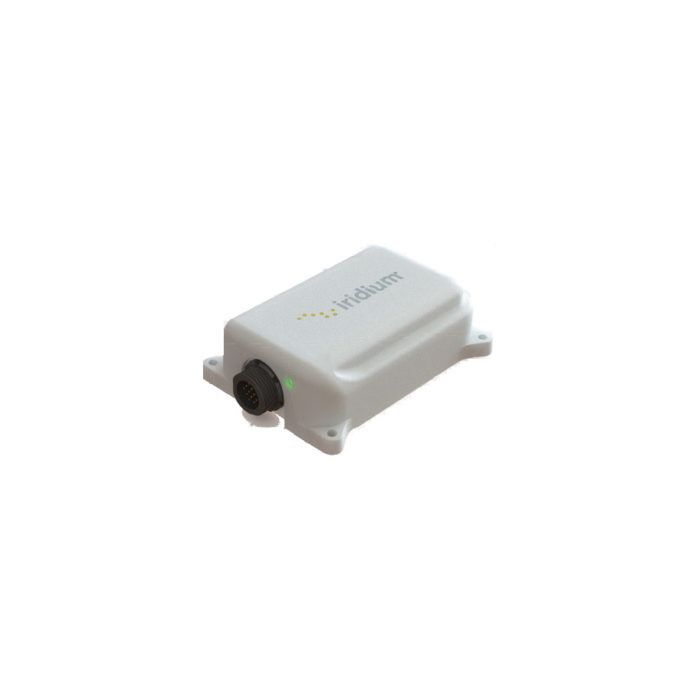

Iridium Edge Pro™
The Iridium Edge® Pro is a standalone Short Burst Data® (SBD) device with real-time GPS and a flexible programming platform
(software tools using JAVA), which allows developers to easily create and run their own custom-made applications. This
commercial off-the-shelf Iridium terminal includes a temperature sensor and accelerometer plus BLE, USB, and CanBus interfaces.
Key Markets:
- Fleet Management
- Remote Monitoring
- SCADA
- Asset Tracking
- Maritime
Specifications
| MODEL | EDGE PRO |
|---|---|
| PART # | EDGEPRO9690 |
| PRODUCT TYPE | SATELLITE M2M, SATELLITE TRACKING |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM SBD |
| USE TYPE | FIXED, MARITIME, VEHICULAR |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| FREQUENCY | L BAND (1-2 GHz) |
| HARMONIZED TARIFF NUMBER | 85177900 |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 127 mm (5") |
| WIDTH | 90 mm (3.54") |
| DEPTH | 41 mm (1.61") |
| WEIGHT | 200 grams (7.05 oz) |
Feature
Network:
- Message Size: 240 bytes (Receive), 370 bytes (Transmit)
- Frequency: 1616 – 1626.5 MHz
Mechanical:
- Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
- Ingress Protection: IP 67
- Side and bottom cable exits
Environmental:
- Operating temperature range: -40C to 85C
- Storage temperature range: -40C to 85C
Interfaces:
- RS232 AT command interface
- On/Off control lines
Power:
- Power Supply ( 9-32V), SAE J1455 Load dump protected
- Reverse Polarity Protection
- Maximum Power: 1.6W (peak for short transmit burst)
- Low Power Modes: < 100uA
Certifications:
- Iridium® satellite network certification
- FCC, IC, CE, Australia approvals
- RoHS compliant
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
