MagicLab MagicBot Z1 Standard Edition Humanoid Robot + Free Delivery

Design and Features

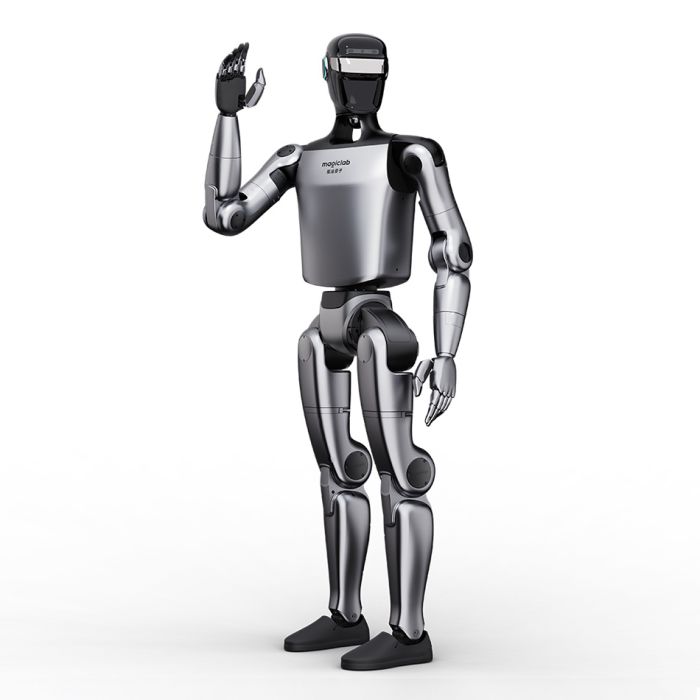

Compact Humanoid Architecture

The MagicBot Z1 Standard Edition is a relatively compact humanoid. A reseller specification page lists the robot at 136.9 cm tall, 42.2 cm wide, 20.0 cm deep, and 40 kg with battery, making it substantially smaller than many industrial humanoids while still large enough for meaningful locomotion and interaction.

MagicLab emphasizes the Z1’s high-strength aluminum alloy and engineering-plastic structure, saying the body was refined through topology optimization and forward analysis design to improve impact resistance, wear resistance, and reliability after repeated falls or collisions. The company also highlights thermal-simulation-based airflow optimization to maintain stable internal temperatures during long-term operation.

Wide Joint Motion and High-Dynamic Movement

One of the Z1’s most distinctive design claims is its ultra-wide joint rotation, with MagicLab stating a motion range of up to 320°. The robot also uses in-house joint modules with maximum torque above 130 N·m, enabling high-dynamic behaviors such as large-disturbance recovery, continuous falling-and-rising, and large-amplitude motions such as deep back-bending.

MagicLab says the Z1 has 24 basic degrees of freedom, expandable up to 50 DoF depending on configuration. The Standard Edition focuses on core motion capability, while the more customizable Developer Edition is intended for more advanced secondary development and specialized research.

Humanlike Interaction

MagicLab also describes the Z1 as having anthropomorphic emotional interaction. According to the launch announcement and reseller page, the robot combines rich visual and tactile sensing with multimodal interaction so that simple actions such as touching its head can trigger voice engagement and gestures like head-turning or waving.

Technology and Specifications

Motion and Learning Stack

MagicLab says the Z1 achieves human-like walking through imitation learning (IL) and reinforcement learning (RL) and can master full-body motion in as little as 24 hours. The official launch materials also say developers can teach the platform an entirely new motion sequence in about 20 minutes using MagicLab’s multi-source database and standard controller.

The company frames this as part of a broader embodied-AI development strategy. In separate company materials, MagicLab says it trains MagicBot robots using synthetic data, teleoperation data, imitation-learning datasets, and real-time scenario data, processed through its internally developed MagicData AI Engine. That context helps explain why the Z1 is presented as both a robot and an AI development platform.

Sensor Suite and Navigation

MagicBot Z1 is equipped with 3D LiDAR, depth cameras, and binocular cameras, according to both MagicLab’s official announcement and reseller specification page. MagicLab says these sensors work with its navigation system to enable autonomous movement in complex environments and rapid development of application-specific skill libraries.

The company further says the robot can adapt to varied terrain including flat ground, grass, gravel, and stairs, which suggests the Z1 is designed for more than showroom floors alone. That claim is grounded in MagicLab’s own description of terrain adaptation and robust motion-control algorithms.

Open Platform and Secondary Development

A recurring theme in MagicLab’s Z1 positioning is openness. The product page describes the robot as “Open-Source and Open-Minded” with powerful hardware and a rich suite of open APIs, while the launch announcement says the Standard Edition can serve as an entry-level platform and the Developer Edition can be expanded with optional hardware packages.

This open-platform approach matters because it places the MagicBot Z1 Standard Edition somewhere between a fixed-purpose demo robot and a full custom research system. It appears designed for users who want a capable humanoid with strong baseline mobility, while leaving room to scale up into deeper development work if needed. That is an inference based on MagicLab’s distinction between the Standard and Developer editions.

Applications and Use Cases

MagicLab explicitly links the Z1 platform to scientific research and education, commercial services, industrial operations, and family companionship. On the Z1 reseller page, the Standard Edition is described as suitable for industrial, research, educational, and consumer applications, while MagicLab’s launch materials mention scenarios ranging from family companionship and commercial guidance to specialized industry use.

MagicLab’s application pages provide broader context for where its humanoid systems are being positioned. The company describes commercial-service uses such as retail reception and shopping guidance, and highlights generalized tasks such as coffee latte art and household tasks including folding clothes, grilling, and watering plants on other MagicBot-family application materials. While not every one of those use cases is explicitly tied to the Z1 Standard Edition alone, they show the operational categories MagicLab is targeting for its humanoid robots.

In practical terms, the Z1 Standard Edition appears especially well suited to demonstrations, educational labs, interactive exhibitions, commercial receptions, and entry-level humanoid research. That conclusion follows from its compact size, core motion-focused configuration, multimodal interaction, and seller positioning toward industrial, educational, and consumer buyers.

Advantages / Benefits

One of the Z1 Standard Edition’s biggest advantages is its combination of compact form factor and unusually high dynamic performance. MagicLab’s claims around 320° joint range, 130 N·m torque, disturbance recovery, and repeated fall resilience suggest a platform built for motion-rich demonstration and development rather than purely static interaction.

A second benefit is sensor richness and autonomous mobility. The inclusion of 3D LiDAR, binocular cameras, and a depth camera gives the robot a more serious perception stack than many entry-level humanoid products. That makes it more credible for navigation, interactive service, and experimentation in mixed environments.

A third advantage is the upgrade path. Buyers who start with the Standard Edition get basic motion capability and an entry-level experience, while organizations that later need dexterous hands or stronger onboard compute can look toward the Developer Edition. This modular pathway broadens the robot’s relevance across education, prototyping, and commercial evaluation.

FAQ Section

What is the MagicLab MagicBot Z1 Standard Edition?

The MagicLab MagicBot Z1 Standard Edition is a compact humanoid robot with core motion capability, autonomous perception hardware, and entry-level access to MagicLab’s humanoid platform. MagicLab positions it as the baseline version of the Z1 line for robotics enthusiasts, researchers, and commercial users.

How does the MagicLab MagicBot Z1 work?

It combines in-house high-performance joint modules, multimodal sensors such as 3D LiDAR, depth cameras, and binocular cameras, plus MagicLab’s navigation and motion-control stack to support walking, interaction, terrain adaptation, and application development.

Why is the MagicLab MagicBot Z1 important?

It is important because it aims to make advanced humanoid robotics more accessible in a smaller and lower-cost package, while still offering high-dynamic motion, robust sensing, and an open development path.

What are the benefits of the MagicLab MagicBot Z1 Standard Edition?

Its main benefits include compact humanoid form, high-torque and wide-range joint motion, autonomous navigation sensors, multimodal interaction, and a clear path toward more advanced developer-oriented expansion.

Does the “free delivery” offer come from MagicLab?

Based on the sources reviewed, free delivery appears to be a reseller offer shown on store listings, not an official MagicLab product specification on the manufacturer page.

Summary

The MagicLab MagicBot Z1 Standard Edition Humanoid Robot is a compact, high-dynamic humanoid platform designed to balance accessibility with real technical depth. Its defining features are 24 base DoF, up to 320° joint range, over 130 N·m joint torque, 3D LiDAR-based perception, multimodal interaction, and an entry-level path into MagicLab’s broader humanoid ecosystem. For buyers seeking a smaller humanoid robot for education, demonstrations, research, or commercial interaction, the Z1 Standard Edition stands out as a serious and current option. The “+ Free Delivery” wording should be treated as retailer-specific rather than a universal manufacturer guarantee.
