The original Unitree H1 was, by Unitree's own characterization, primarily a locomotion research platform. Its base arm configuration used 5-DOF arms without wrist articulation, and the arm terminations  when not fitted with optional hands  were functionally oriented toward balance contribution during running rather than manipulation. The H1-2 upgrade added 7-DOF arms with wrist pitch and yaw, creating the kinematic prerequisite for functional manipulation: the ability to orient the hand at any target angle within the arm's workspace.

Five-Finger Anthropomorphic Architecture

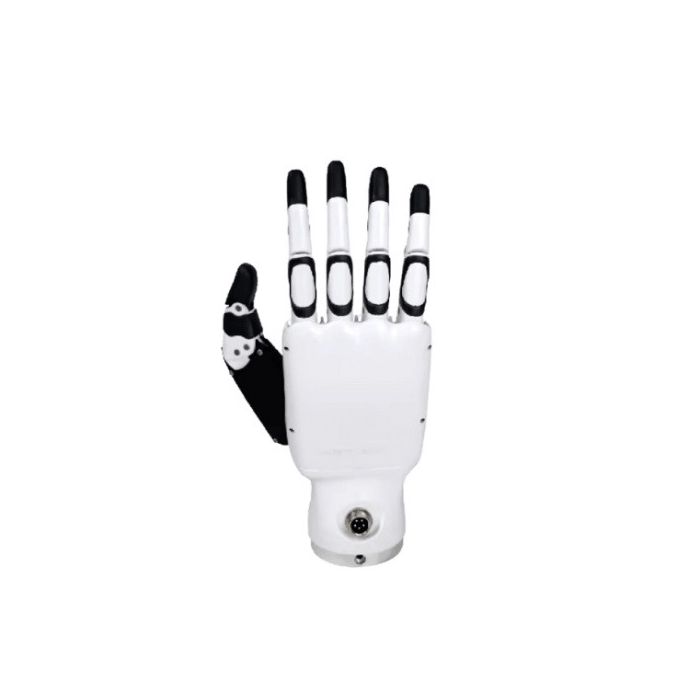

The Dex5-1 family uses a full five-finger design with an independently actuated thumb, index, middle, ring, and little finger. The thumb incorporates a 4-DOF design enabling full opposition — the mechanical prerequisite for precision pinch grasps, lateral key grips, and the full spectrum of human grasping postures. Without thumb opposition, a robotic hand is mechanically limited to power grasps and cannot replicate the precision manipulation that distinguishes human hand capability.

The four non-thumb fingers each incorporate the lateral swing DOF — the ±22° abduction and adduction that allows the fingers to spread for larger object envelopes or converge for concentrated contact. Humanoid.guide describes this as "snake-like" flexibility: "Think of this like how you can splay your fingers apart or bring them together. This gives the Dex5 more ways to wrap around different objects."

20 Degrees of Freedom: 16 Active + 4 Passive

The 20-DOF total is distributed as 16 independently motor-actuated joints and 4 passive joints that provide mechanical compliance without independent actuation. OpenELAB's detailed review confirms: "With 16 active joints + 4 passive, Dex5-1 mimics human hand dynamics with remarkable precision. Each finger joint supports smooth backdrivability, eliminating the 'stiff hand' effect and enabling fluid motion — perfect for reinforcement learning (RL) and adaptive control."

The active joint distribution places independent motors on the joints most critical for grasp configuration — the thumb opposition joints, proximal phalanx flexion joints, and the lateral swing joints. The passive joints provide mechanical compliance at the distal phalanges and interphalangeal joints, allowing those finger segments to conform to object surfaces naturally without requiring the control system to independently command them.

Backdrivable Joints: The Anti-Stiff-Hand Design

Full joint backdrivability is one of the Dex5-1's most technically significant mechanical features. A backdrivable joint yields to external contact forces rather than rigidly maintaining its commanded position — when the finger touches an object, the joint gently complies rather than pressing against it with the full motor force. This compliance behavior matches how human fingers work during contact and provides two critical operational advantages:

Safe physical human-robot interaction: A backdrivable hand does not impose rigid impact forces when it contacts a human body. The joint yields to the contact, preventing injury from the high contact forces that non-backdrivable hands can impose.

Natural object grasping: During the closing motion toward an object, backdrivable joints naturally conform to the object's surface geometry rather than requiring perfect prediction of the contact angles. The hand "wraps" around objects organically, similar to how a human hand does.

Hollow-Cup Motors and Micro-Force Transmission

Top3DShop's documentation confirms the actuation architecture: "Actuation: High-power hollow-cup motors, low-damping reducers, 12 micro force-controlled joints, micro-gap design for smooth grasping." Blue Skies Drone Shop adds: "Hollow-Cup Motors and Micro-Force Transmission achieve high power density, ultra-low joint damping, and lightning-fast reflexes."

Hollow-cup (coreless) motors eliminate the iron core from the motor rotor, substantially reducing rotor inertia and enabling the rapid acceleration and deceleration needed for reflexive responses to contact events. The "lightning-fast reflexes" characterization reflects the ability to transition from a closing motion to a compliant hold when contact is detected, or to tighten grip instantaneously when the 94-sensor array detects slip onset.

Replaceable Individual Fingers

RobotShop confirms the independent finger replacement design — each of the five fingers can be replaced individually without replacing the complete hand assembly. This modularity reduces maintenance costs when a specific finger is worn or damaged, and enables task-specific customization of individual fingertip properties for different manipulation contexts.

Technology and Specifications

Full Dex5-1/Dex5-1P Specifications

94 Tactile Sensors: Spatial Contact Intelligence

The 94 tactile sensors in the Dex5-1P (the full tactile variant) are distributed across the palm and fingertips, providing comprehensive spatial contact mapping. OpenELAB's review describes the sensing function: "These sensors act like nerve endings in a skin, detecting when and where the hand is touching something and how much pressure is there. In practice, this allows the robot to tell if an object is slipping or to judge how hard it's holding an item."

At a 10-gram minimum pressure detection threshold, the sensors can detect contact from a standard sheet of paper or a light fabric. The 2.5-kilogram upper range provides detection well above typical manipulation forces. The 250:1 ratio between minimum and maximum detectable force enables nuanced grip control across the full spectrum from the lightest surface touch to firm functional grasps.

OpenELAB confirms precision: "±1mm positioning accuracy for delicate operations."

1,000 Hz Communication: Real-Time Tactile Control

Blue Skies Drone Shop confirms "Real-Time Feedback at 1 kHz delivers position, torque, stiffness, and IMU data for algorithmic control or reinforcement learning." The millisecond update rate provides 1,000 complete sensor state updates per second — faster than the fastest human reflexive responses (50 to 80 milliseconds) by a factor of 50 to 80. This enables closed-loop control algorithms that respond to contact events before they register as observable motion.

Operating Temperature: -20°C to 60°C

OpenELAB confirms the wide temperature range of -20°C to 60°C — enabling the Dex5-1 to operate across industrial outdoor environments (cold storage, outdoor winter inspection) through warm manufacturing floor conditions, expanding the H1-2's deployment scenarios beyond the room-temperature laboratory environments where many robotic hands are limited.

Landmark Demonstrations

Rubik's Cube Solving

The Dex5 hand has been demonstrated solving a Rubik's cube — one of the canonical benchmarks for dexterous in-hand manipulation. Rubik's cube solving requires the ability to hold the cube securely while independently rotating different face layers, a manipulation task that demands the full five-finger dexterity and in-hand repositioning capability of the 20-DOF architecture. Humanoid.guide notes: "For a robotics fan, it's downright inspiring to see a robot hand shuffle cards and solve puzzles."

Card Shuffling and Delicate Object Handling

Card shuffling demonstrates precision multi-finger coordination at the lightest detectable force levels — the 10-gram minimum pressure threshold is critical for handling objects like playing cards, paper, and thin film materials that would be invisible to lower-sensitivity systems. The Dex5's demonstrations across a range of delicate manipulation tasks have established it as a reference benchmark for what commercial humanoid dexterous hands can achieve.

Fragile Object Grasping

Ghostysky's documentation includes the fragile object example: "If Dex5 picks up an orange, the touch sensors can help it sense the fruit's surface and ensure it's not squeezing too hard." The real-time closed-loop between the 94-sensor tactile array and the backdrivable finger joint motors enables the force regulation that prevents crushing soft, fragile, or deformable objects — a manipulation capability that position-controlled grippers without tactile feedback cannot reliably provide.

Applications and Use Cases

Manufacturing Assembly and Precision Parts Handling

The Dex5-1's ±1mm fingertip positioning accuracy and 10N maximum force enable the precision parts handling that manufacturing contexts require — grasping and placing components within millimeter tolerances, operating tool fixtures, and handling electronic assemblies without static discharge damage (ESD pad options available). Top3DShop documents the H1's industrial validation: Geely used the H1 for automotive assembly, autonomously grasping wheel cover parts and installing them on a moving conveyor.

Reinforcement Learning and Dexterous Manipulation Research

OpenELAB explicitly identifies: "The 1000Hz communication rate ensures that control algorithms receive timely sensory updates, enabling closed-loop control strategies that react dynamically to changing contact conditions." For RL research on dexterous manipulation — the growing field studying how robots learn grasping policies from large-scale demonstration or reward-based training — the Dex5-1's sensor density and communication rate provide the data quality that manipulation learning research demands.

Service Robotics: Household and Healthcare Tasks

OpenELAB describes service robotics applications: "Service robots operating in human environments must navigate complex manipulation challenges, from opening doors and cabinets to handling household objects of varying sizes and materials. The Dex5-1 provides the tactile sensitivity and dexterity necessary for these real-world applications."

Haptic Teleoperation

OpenELAB notes: "The rich haptic feedback provided by the Dex5-1's 94 tactile sensors enables intuitive teleoperation scenarios where human operators can feel what the robot touches." Bilateral haptic teleoperation — where force feedback from the robot's tactile sensors is reflected to the human operator's haptic device — requires the spatial force resolution of the 94-sensor array to provide meaningful feedback rather than aggregate single-force measurements.

Comparison: Dex5-1 vs. Dex3 vs. Generic Grippers

Frequently Asked Questions (FAQ)

What is the Unitree H1-2 Dexterous Hand? The Unitree H1-2 Dexterous Hand is the Unitree Dex5-1 / Dex5-1P five-finger tactile hand family — optional end-effectors designed for the Unitree H1 and H1-2 humanoid robots. The Dex5-1 is the left-hand variant and the Dex5-1P is the right-hand variant, sharing identical specifications. Key specs: 20 total DOF (16 active, 4 passive), up to 94 tactile pressure sensors per hand, 1,000 Hz real-time feedback, fully backdrivable joints, ±1mm fingertip positioning accuracy, 4.5 kg maximum load capacity, -20°C to 60°C operating range, and hollow-cup motor actuation. Unitree's official H1 product page lists the hand as "Optional Dex5-1 or other ambidextrous hands."

What can the Unitree H1-2 dexterous hand do? The Dex5-1 / Dex5-1P can perform the full range of human grasp configurations including power grasps, precision pinch, tripod pinch, lateral key grips, hook grasps, and complex multi-finger coordination grasps. Demonstrated tasks include solving Rubik's cubes through in-hand manipulation, shuffling playing cards, handling fragile objects (glass containers, fruit) with force-regulated grip, precision assembly of mechanical components, and physical human-robot interaction including handshakes and object handovers. OpenELAB confirms: "±1mm positioning accuracy for delicate operations."

How many tactile sensors does the Unitree H1-2 dexterous hand have? The Dex5-1P variant has 94 tactile pressure sensors per hand, as confirmed by RobotShop's product description. These sensors are distributed across the palm and fingertips, detecting pressure from 10 grams to 2.5 kilograms. The 94-sensor spatial distribution enables grasp quality assessment, slip detection, and object property estimation from tactile data. The standard Dex5-1 (without the "P" tactile designation) may have a reduced sensor configuration — confirm with your distributor which specific configuration you are purchasing.

What is the difference between the Dex5-1 and Dex5-1P? OpenELAB clarifies the naming: "The Dex5-1 is the left-hand variant, while the Dex5-1P is the right-hand variant." Both share identical mechanical specifications. The "P" designation in some interpretations also refers to the full 94-sensor tactile array configuration — Humanoid.guide notes: "Unitree offers the sensors as an option, so you might see a 'Dex5-1P' model with the full 94 sensor array." Buyers should confirm the specific tactile sensor configuration at purchase.

Summary

The Unitree H1-2 Dexterous Hand — the Dex5-1 (Left) and Dex5-1P (Right) family — represents the official optional manipulation end-effector for the Unitree H1 and H1-2 humanoid platforms, providing 20 total degrees of freedom (16 active, 4 passive), up to 94 tactile pressure sensors per hand with 10g to 2.5 kg detection range, 1,000 Hz real-time perceptual feedback, full joint backdrivability, ±1mm fingertip positioning accuracy, 4.5 kg maximum load capacity, -20°C to 60°C operating temperature, and hollow-cup motor actuation with 12 self-developed micro force-controlled composite transmission joints. Demonstrated on tasks ranging from Rubik's cube solving and card shuffling to fragile object handling and automotive assembly at Zhejiang Geely, the Dex5-1 family brings the H1-2's world-record locomotion platform its corresponding world-class manipulation capability — completing the transformation from a locomotion-specialist research platform into a true universal humanoid robot.
