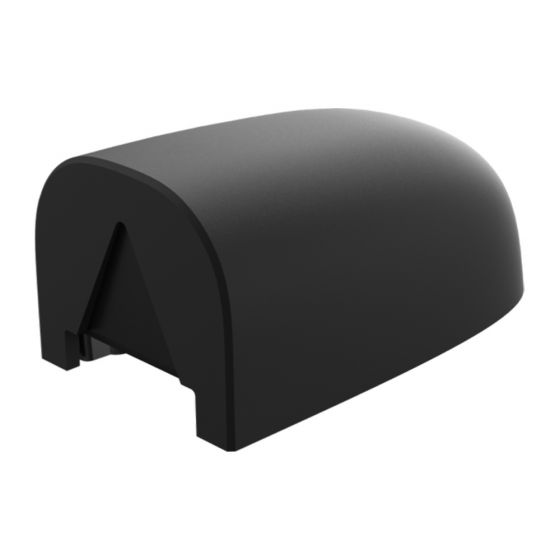

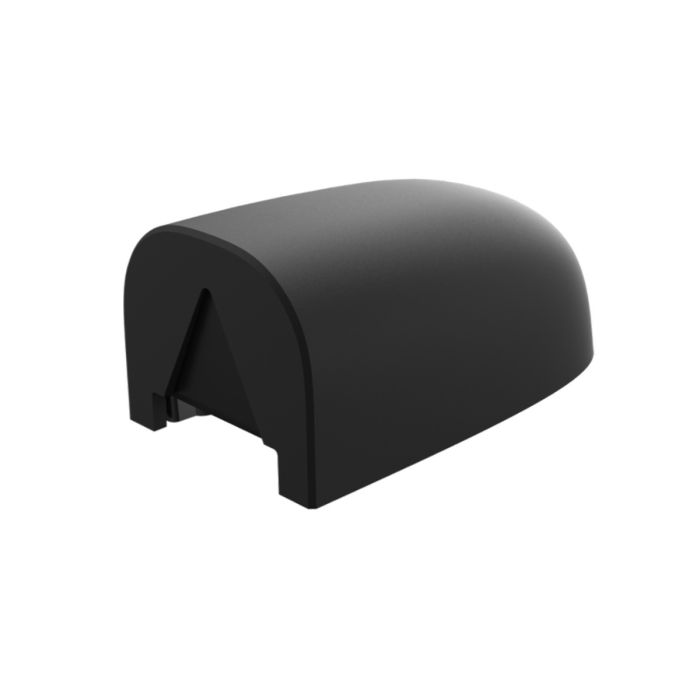

Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S2716-Core)

It is part of Paxini’s PX-6AX GEN3 family (also described by Paxini as a new generation of ITPU high-precision tactile sensing units), which emphasizes high-frequency sampling, fine force perception, and improved robustness for real-world deployment.

Within the GEN3 lineup, the Core series is presented as a configurable, general-purpose performance tier, while maintaining the platform’s hallmark characteristics: “15 types” of tactile/physical analysis, 0.01 N minimum identifiable force, and industrial-oriented durability such as IP68 sealing and 10-million-cycle lifetime claims.

In modern robotics, tactile sensing is frequently used to complement cameras and joint sensors by providing direct contact information—particularly when objects are visually occluded, surfaces are reflective, or grasp stability depends on subtle changes in friction and contact distribution. Paxini positions PX-6AX GEN3 as enabling richer interaction intelligence through multi-dimensional touch interpretation at control-friendly output rates.

Design and Features

Compact fingertip-scale module (S2716 form factor)

The PX6AX-GEN3-DP-S2716-Core variant is listed as a fingertip-oriented sensor with dimensions of 27 × 16 × 13 mm (L × W × H).
This footprint is intended for robotic fingers and compact grippers, where tactile sensing must fit into limited geometry while still providing enough sensing area for edge contacts, partial surface interactions, and real-world object variability.

Multi-dimensional tactile perception (“15 types”)

Public listings for the S2716 Core describe “multi-dimensional tactile perception (15 types)”, consistent with Paxini’s GEN3 framing of “15 physical analyses” for richer tactile interpretation.
While the public pages do not enumerate all 15 interpretations, the overall concept is to provide multi-aspect tactile information (rather than a single scalar force), supporting more robust contact reasoning in manipulation tasks.

Industrial durability and environmental sealing

The S2716 Core is described in product listings as:

IP68 waterproof and dustproof
10 million cycles durability
Precision 0.01 N (fine force perception)

Paxini’s official GEN3 page also highlights chip-level anti-magnetic resistance (anti-interference) and factory calibration as core platform features, aimed at consistent performance in robotics environments where motors, power electronics, and metal structures can introduce noise.

Technology and Specifications

Model-specific (S2716 Core) headline specifications

Reseller-style pages for this exact part number provide a concise specification block:

Model: PX6AX-GEN3-DP-S2716-Core
Dimensions: 27 × 16 × 13 mm
Tactile perception: 15 types
Sampling / output frequency (listed): 1000 Hz
Ingress protection: IP68
Durability: 10 million cycles
Precision: 0.01 N

GEN3 platform parameters (applicable context for Core series)

Paxini’s official PX-6AX GEN3 page includes a GEN3 product parameter section that frames the platform’s technical scope:

Measurement outputs: 3D array distributed force, 3D resultant force, and 3D torque/moment
Tactile signal count: up to 717 channels
Measurement range: normal 0–25 N, tangential ±10 N
Measurement sampling frequency: 1,000,000 Hz
Maximum output frequency: 1000 Hz
Minimum identifiable force: 0.01 N
Spatial resolution: 0.1 mm
Repeatability: < 0.5% FS
Protection and interference resistance: IP68, chip-level anti-magnetic
Working voltage: 3–5 V
Service life: stated as supporting >10 million measurements

In system terms, GEN3 distinguishes between extremely high internal sampling and controller-usable output rate: even if internal sampling is “million-level,” a robot typically consumes data at the maximum output frequency (listed as 1000 Hz) for real-time control loops.

Integration ecosystem and communication accessories

Paxini’s official purchase page for PX-6AX GEN3 recommends using matching communication accessories, listing options such as:

SPI multi-channel adapter box
High-speed communication integration board
Single-channel serial port adapter board

This reflects a common tactile-sensing reality: the sensor’s practical value depends on stable data transport and integration into the robot controller or host computer pipeline for logging, visualization, and closed-loop grasp control.

Applications and Use Cases

Dexterous robotic hands and fingertip grasp control

The S2716 Core’s fingertip form factor is suited to dexterous hand use cases where contact dynamics happen at small surfaces and change rapidly. Tactile data can support grip-force modulation, detection of unstable contact, and better handling of objects with uncertain friction, surface texture, or geometry.

Parallel grippers and compact industrial end-effectors

In industrial pick-and-place, tactile sensing can reduce failure modes caused by visual occlusion (e.g., deep bins), reflective packaging, or compliant items. A compact fingertip sensor can provide contact confirmation and help tune force limits to avoid damaging fragile products while maintaining reliable retention.

Research, benchmarking, and embodied AI development

Paxini explicitly positions GEN3 as enabling more intelligent environment interaction through multi-dimensional touch analysis and high consistency/repeatability.
This aligns with robotics R&D workflows, where tactile signals are used for:

building grasp datasets,
validating slip prediction strategies,
training and evaluating contact-rich manipulation policies.

Human–robot interaction and safer contact behaviors

For robots that operate near people, tactile sensing at the end effector can support safer behaviors: detecting unexpected contact, lowering force quickly, or adapting motion when interacting with soft or variable objects.

Advantages / Benefits

High-rate output for responsive closed-loop manipulation

Both GEN3 platform data and public listings for S2716 Core emphasize 1000 Hz output frequency, a rate that is commonly considered suitable for reactive grasp stabilization and compliance behaviors in robotic control loops.

Fine force perception at the point of contact

A 0.01 N minimum identifiable force (paired with GEN3 repeatability claims) supports delicate manipulation tasks, including gentle grasping, controlled contact during insertion, and small-object handling—use cases where coarse force sensing can be insufficient.

Robustness for real environments

IP68 sealing and a stated 10 million-cycle lifetime are directly relevant to deployment: tactile pads may be exposed to dust, moisture, cleaning routines, and continuous contact cycles.

Platform breadth and scalability

Paxini’s GEN3 page presents a lineup of multiple sizes (from fingertip to palm coverage), enabling teams to standardize on one tactile “platform” while selecting sensor geometry for different fingers or contact areas. The S2716 Core occupies a mid-size fingertip category within that family.

FAQ Section

What is Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S2716-Core)?

It is a GEN3 Core-series multi-dimensional tactile sensor designed for robotic fingertips and end-effectors, listed with dimensions 27 × 16 × 13 mm, IP68 sealing, and fine force sensing features such as 0.01 N minimum identifiable force.

How does Paxini PX-6AX GEN3 Core work?

PX-6AX GEN3 is presented as an ITPU multi-dimensional tactile sensing platform that outputs tactile information such as 3D distributed forces, 3D resultant force, and 3D torque/moment, which can be streamed to a host/controller (often using recommended communication accessories) for grasp control and contact interpretation.

Why is Paxini PX-6AX GEN3 Core important?

Robotic manipulation often fails at the moment of contact, especially when vision is occluded or friction is uncertain. GEN3’s high-rate output (up to 1000 Hz) and fine force identification (0.01 N) are aimed at capturing transient contact changes and improving stability and reliability.

What are the benefits of Paxini PX-6AX GEN3 Core?

Public sources highlight compact fingertip geometry, multi-dimensional tactile interpretation (“15 types”), IP68 sealing, 10 million-cycle durability, 0.01 N minimum identifiable force, and platform-level repeatability and output frequency characteristics suitable for responsive manipulation control.

Summary

The Paxini PX-6AX GEN3 Core (PX6AX-GEN3-DP-S2716-Core) is a fingertip-oriented 27 × 16 × 13 mm multi-dimensional tactile sensor designed to strengthen robotic grasping and manipulation through contact-rich perception. With GEN3 platform attributes such as up to 1000 Hz output, 0.01 N minimum identifiable force, IP68 sealing, and durability claims exceeding 10 million measurements, the S2716 Core is positioned for both research and deployment scenarios where robust, high-frequency touch feedback can materially improve reliability beyond vision-only approaches.
