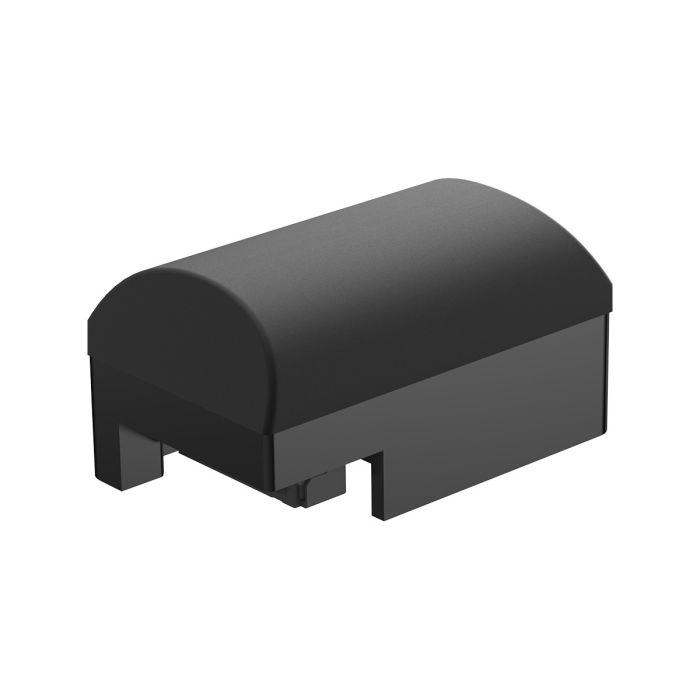

Paxini PX-6AX GEN3 Elite (PX6AX-GEN3-IP-S1610-Elite)

Paxini PX-6AX GEN3 Elite (PX6AX-GEN3-IP-S1610-Elite)

PX6AX-GEN3-IP-S1610-Elite is a compact finger-pad (指腹) multi-dimensional tactile sensing unit in PaXini’s PX-6AX GEN3 product family. It is positioned within the Elite series of the GEN3 line and is designed to provide high-resolution tactile feedback for robotic manipulation—particularly in dexterous hands, grippers, and end-effectors that require stable contact detection, force estimation, and interaction sensing in real-world environments.

Within the PX-6AX GEN3 lineup, the S1610-Elite model is characterized by its small form factor—intended to fit on finger-pad surfaces—while sharing core GEN3 platform capabilities such as high-frequency sampling, multi-axis force outputs, and environmental protections (notably dust/water resistance).

Design and Features

Form factor and mounting intent

The PX6AX-GEN3-IP-S1610-Elite is described as a finger-pad sensor with dimensions 16 × 10 × 8 mm (L×W×H), which is suited for installation on compact contact surfaces where space and curvature coverage are important.

Sensing outputs

PaXini presents the PX-6AX GEN3 tactile unit as supporting outputs that include:

• 3D distributed force arrays

• 3D resultant force

• 3D torque / moment (force moment)
  These outputs are presented as part of the GEN3 product parameters for the series and are commonly associated with tactile perception tasks such as contact localization, grasp stability assessment, and interaction measurement.

Environmental robustness

GEN3 Elite series parameters include IP68 dust and water protection, positioning it for scenarios where sensors may be exposed to dust, splashes, or washdown-like conditions (depending on system-level sealing and integration).

Technology and Specifications

Core platform characteristics (GEN3 Elite series)

PaXini’s published specifications for PX-6AX GEN3 (Elite series) include:

• Maximum tactile signal channels: up to 717

• Measurement range: normal force 0–25 N, tangential force ±10 N

• Operating temperature: 0–50°C; overload temperature: -20–120°C

• Sampling frequency (measurement): 1,000,000 Hz

• Maximum output frequency: 1000 Hz

• Minimum recognizable force: 0.01 N

• Spatial resolution: 0.1 mm

• Repeatability: < 0.5% FS

• Overload ratings: 200% safe overload, 300% impact overload

• Ingress protection: IP68

• Anti-interference: “chip-level anti-magnetic interference” (as described)

• Working voltage: 3–5 V

• Coverage statement: front and side curved-edge coverage described as “full coverage”

• Dynamic temperature compensation: listed as supported

• Torque sensing: described as supporting sensing around arbitrary points/axes

Model-specific physical specification

For the PX6AX-GEN3-IP-S1610-Elite (finger-pad sensor):

• Dimensions: 16 × 10 × 8 mm

Applications and Use Cases

Dexterous robotic hands and grippers

The S1610-Elite form factor is aligned with finger-pad placement, where dense tactile feedback can support:

• contact detection and contact timing,

• controlled force application (e.g., gentle grasping),

• slip tendency monitoring (in combination with control algorithms),

• manipulation of small or fragile objects.

Industrial automation and flexible manufacturing

Tactile sensing can improve success rates in tasks such as pick-and-place, bin picking, and assembly—particularly when visual occlusion or tolerances make purely vision-based control insufficient. PaXini’s broader messaging positions its tactile products for robotics perception and interaction breakthroughs across application domains.

Service, mobile, and specialized robots

An English-language report noted PaXini tactile sensors being applied across industrial robots, surgical robots, mobile robots, service robots, and intelligent cockpits (as a general application landscape for the company’s tactile sensing products).

Advantages / Benefits

Higher-fidelity interaction data for manipulation

By emphasizing multi-dimensional outputs (forces and moments) and high output rates, the GEN3 Elite platform is designed to support faster, more stable closed-loop control than low-rate contact switches or single-axis force sensors in many manipulation scenarios.

Compact integration for fingertip or finger-pad sensing

At 16 × 10 × 8 mm, the S1610-Elite is sized for compact end-effectors and finger surfaces where space constraints typically limit sensor options.

Environmental protection for real-world deployments

An IP68 rating can be valuable where dust/water exposure is expected (subject to integrator design), supporting broader deployment beyond clean lab environments.

FAQ Section

What is the Paxini PX-6AX GEN3 Elite (PX6AX-GEN3-IP-S1610-Elite)?

It is a compact finger-pad multi-dimensional tactile sensor unit in PaXini’s PX-6AX GEN3 Elite series, specified at 16×10×8 mm, intended for robotic manipulation and interaction sensing.

How does the PX6AX-GEN3-IP-S1610-Elite work?

PaXini describes PX-6AX GEN3 as a Hall-array-based high-precision multi-dimensional tactile sensor product line that outputs multi-axis tactile information (including distributed forces, resultant forces, and moments) for robotics perception and control.

Why is the PX-6AX GEN3 Elite series important?

High-resolution tactile sensing helps robots interact more reliably with the physical world—supporting tasks like stable grasping, controlled force application, and contact-aware manipulation—especially when vision alone is insufficient. PaXini positions its tactile technology as enabling improved perception and interaction across robotics scenarios.

What are the benefits of the PX6AX-GEN3-IP-S1610-Elite?

Key benefits include a compact finger-pad form factor (16×10×8 mm), IP68 protection, and GEN3 Elite-series capabilities such as high output frequency (up to 1000 Hz) and fine force detectability (listed 0.01 N).

Summary

PX6AX-GEN3-IP-S1610-Elite is a PX-6AX GEN3 Elite-series finger-pad tactile sensor designed to bring high-resolution, multi-dimensional touch feedback to robotic end-effectors. With a 16×10×8 mm footprint, IP68 protection, and GEN3 platform characteristics such as high output rate and fine force detectability, it is positioned for dexterous manipulation and robust robot–environment interaction in industrial and service-oriented deployments.
