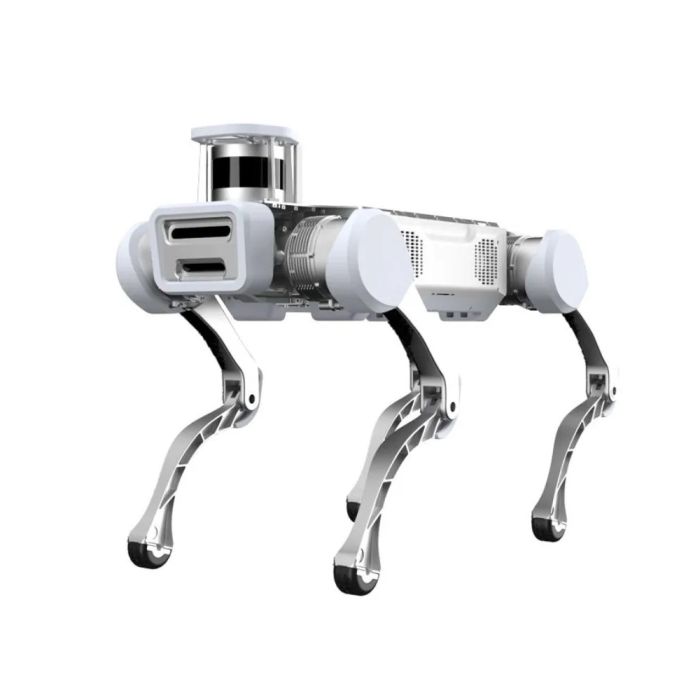

Deep Robotics X20 Industrial Quadruped Robot Dog

X20 Industrial Quadruped Robot Dog (X20)

Deep Robotics positions the X20 as a rugged “robot dog” capable of operating in extreme industrial conditions, combining all-terrain mobility, high payload capacity, and smart perception to enable unmanned inspection across large facilities.

Introduced publicly in 2021 as part of Deep Robotics’ Jueying line, the X20 was promoted as an industrial waterproof quadruped robot, with communications emphasizing its suitability for power and utilities, tunnels, mining, construction, and rescue scenarios.

Design and Features

Industrial ruggedization and IP66 protection

A defining feature of the X20 is its IP66 dust and water resistance, intended to support operation in adverse conditions such as rain, standing water, and dusty industrial sites. Deep Robotics’ official product page highlights IP66 “all-weather operation,” and the company’s 2021 press release framed the X20 as an industrial waterproof model within its lineup.

All-terrain locomotion for complex infrastructure

Deep Robotics describes the X20 as suitable for mixed terrain—such as grass, sand, snow, gravel, and standing water—and for typical industrial obstacles like stairs and curbs. Published materials state it can step over ~20 cm obstacles and climb ~30° slopes (with some documents also referencing higher slope capability in specific contexts).

Modular payload and peripheral integration

The X20 is presented as a modular platform with multiple interfaces to support add-ons. The official datasheet notes optional modules such as dual-light pan/tilt, a robotic arm, 4G/5G communications, and positioning modules including BeiDou/GPS/RTK.

Autonomous navigation and “trackless” operation

Deep Robotics’ X20 datasheet emphasizes trackless autonomous navigation enabled by a combination of depth-sensing cameras, LiDAR, and intelligent algorithms, supporting dynamic obstacle avoidance, terrain recognition, and human–robot interaction.

Autonomous charging for long-duration deployments

The X20 platform is also marketed with autonomous charging capability, with published runtime figures differentiating between loaded and unloaded conditions.

Technology and Specifications

Deep Robotics publishes key parameters for the X20 across its official product page and datasheets. The figures below summarize commonly cited specifications:

Physical characteristics

The official product page lists a standing size of 950 × 470 × 700 mm and weight of 53 kg.
A datasheet also provides a standing dimension in the same class (noting 1000 × 460 × 600 mm in that document), which can reflect measurement conventions or configuration variance across versions.

Payload and load handling

Deep Robotics’ product page highlights a 20 kg “endurance” load figure (often interpreted as a practical sustained payload).
The X20 datasheet specifies 20 kg safe working load and 85 kg maximum working load.
A 2022 Deep Robotics rescue-solution press release also references a maximum payload of 85 kg in a hazard detection and rescue context.

Speed, obstacle performance, and incline

Deep Robotics’ product page lists max speed ≥ 4 m/s, while the datasheet specifies maximum speed 4.95 m/s.
Published materials state it can step over ~20 cm obstacles and climb ~30° slopes.

Battery runtime and range

Deep Robotics lists 2–4 hours of endurance and a typical 15 km mileage figure (with runtime dependent on payload).
The datasheet provides a more explicit operating model: about 4 hours at 0 kg load and about 2 hours at 20 kg load, with a 15 km mileage figure tied to a representative speed condition.

Communications and interfaces

The X20 datasheet lists external communication interfaces including Ethernet, Wi-Fi, USB, RS485, and RS232, and external power options including 5V/12V/24V/72V (battery) to support peripherals.

Applications and Use Cases

Power and utilities inspection

Deep Robotics positions the X20 for industrial patrol inspection under extreme working conditions, and its official site highlights Power & Utilities as a key application domain.
In its 2021 press release, Deep Robotics described deployments and testing across industrial inspection scenarios, including large-scale patrol contexts.

Emergency rescue and hazard detection

The X20 has been marketed for emergency response roles, where ruggedization and payload capacity matter. Deep Robotics’ 2022 press release for an X20 hazard detection & rescue solution emphasizes IP66 protection for severe conditions and highlights heavy payload potential for carrying supplies.

Tunnels, mining, and industrial sites

Deep Robotics’ official channels group the X20 into industrial domains such as tunnel, metal & mining, and related inspection environments, where uneven terrain, dust, moisture, and poor lighting are common constraints.

Construction and site exploration

In construction and field exploration, quadruped platforms are often used as sensor carriers—supporting mapping, progress monitoring, and safety inspections in areas that are hard for wheeled robots to traverse. Deep Robotics lists construction among the X20’s targeted sectors.

Research and robotics development

Deep Robotics also highlights research as an application domain for its quadruped lineup, and the X20’s modular peripheral support (including optional payloads and comms modules) is consistent with R&D usage.

Advantages / Benefits

High environmental resilience for outdoor and industrial work

IP66 protection and all-terrain mobility are central to the X20’s value proposition, enabling deployments where consumer-grade robot dogs may be unsuitable due to water ingress, dust exposure, or harsh weather.

Strong payload capacity and scalability

Deep Robotics frames the X20 as a “strong load capacity” platform, and published figures (20 kg safe working load, 85 kg maximum working load) support use cases involving heavier sensor packages, comms equipment, or mission payloads.

Autonomous inspection with perception-driven navigation

The X20 is marketed to support “trackless” autonomous navigation and dynamic obstacle avoidance using depth sensing and LiDAR, enabling inspection routes in facilities without extensive infrastructure changes.

Operational endurance with autonomous charging options

Published runtime and mileage figures (2–4 hours, ~15 km) paired with autonomous charging support are intended to enable longer inspection cycles with reduced human intervention.

FAQ Section

What is the Deep Robotics X20?

The Deep Robotics X20 (Jueying X20) is an industrial quadruped robot dog designed for autonomous patrol inspection, exploration, and rescue tasks, with IP66 protection and modular payload support.

How does the Deep Robotics X20 work?

It uses quadruped locomotion for terrain traversal and combines depth sensing cameras + LiDAR with intelligent navigation algorithms for “trackless” autonomous movement, dynamic obstacle avoidance, and inspection route execution.

Why is the X20 important for industrial inspection?

Many industrial sites include stairs, puddles, gravel, dust, and changing layouts. The X20 is designed for these conditions with IP66 protection, obstacle traversal (~20 cm), and slope climbing (~30°)—features aimed at reliable autonomous inspection in harsh environments.

What are the benefits of the Deep Robotics X20?

Key benefits include industrial IP66 weatherproofing, strong payload capability (20 kg safe working load; 85 kg maximum working load in published datasheets), autonomous navigation with perception sensors, and modular add-ons such as 4G/5G and RTK positioning.

Summary

The Deep Robotics X20 (Jueying X20) is an industrial quadruped robot dog built for autonomous inspection and field operations where weatherproofing, terrain mobility, and payload scalability are critical. With published specs including IP66 protection, 2–4 hours runtime, ~15 km range, 20 cm obstacle traversal, and payload figures up to 20 kg safe working load (and 85 kg maximum working load in datasheets), the X20 is positioned as a practical mobile platform for power utilities, tunnels, mining, construction, and rescue-oriented deployments.
